Setting the control functions
Heating/cooling switchover
...►
Set auto control
Settings assistant
Current: Radiator – Differential pressure Δp-v
Heating/cooling switchover
Current: Heating
Setpoint delivery head (Δp-v)
Current: 6.5 m
Setback operation
Detection: Switched off

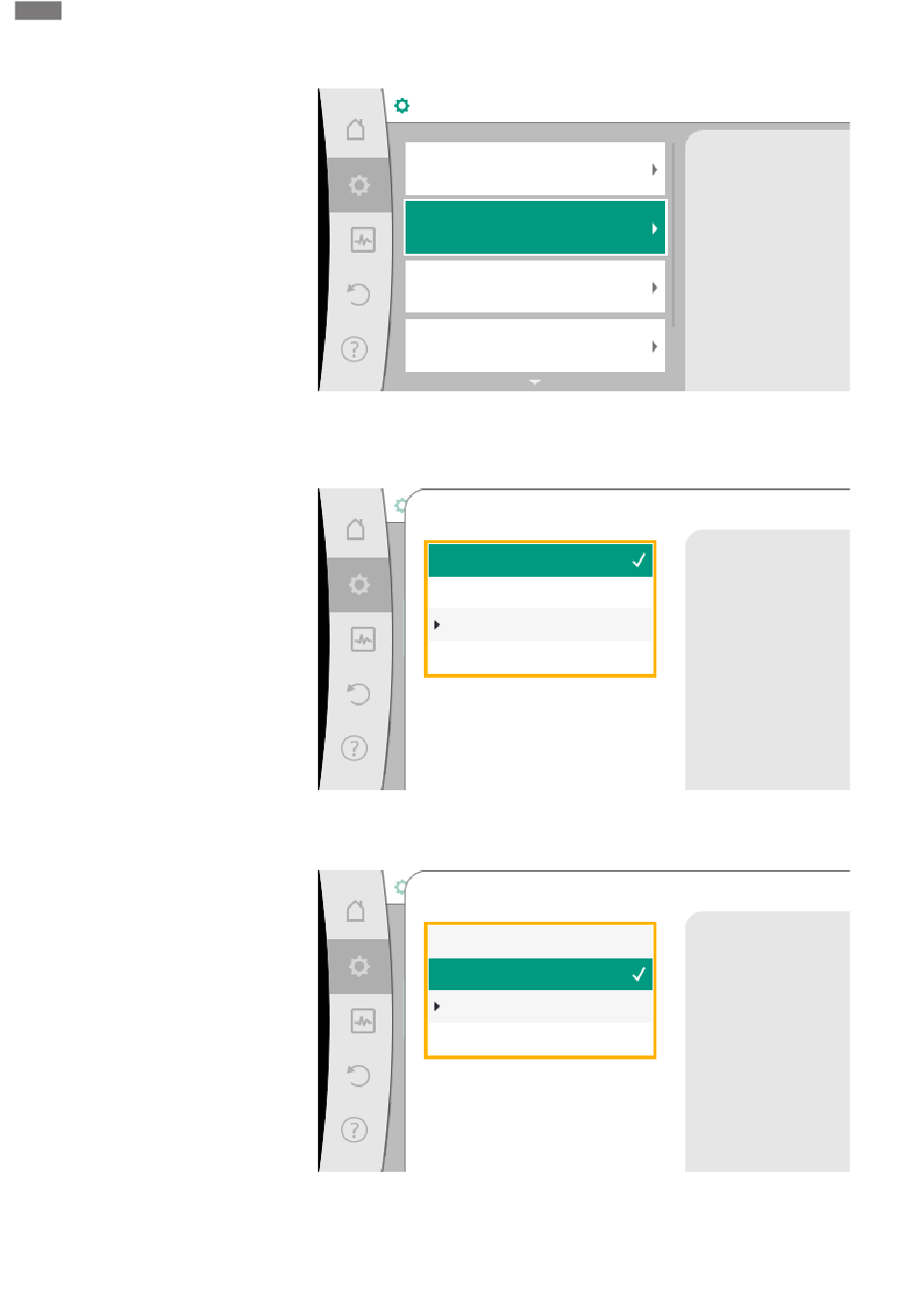

Fig. 53: Heating/cooling switchover
Initially select "Heating" in the "Heating/cooling switchover" menu.
Then configure additional settings (e.g. setpoint specification, setback operation, etc.)
in the "Set auto control" menu.
Heating/cooling switchover
Heating
Cooling
Automatic
Binary input
Fig. 54: Heating/cooling switchover_Heating
The settings for cooling are made once the specifications for heating are completed. To
do this, select "Cooling" in the "Heating/cooling switchover" menu.
Heating/cooling switchover
Heating
Cooling
Automatic
Binary input
Fig. 55: Heating/cooling switchover_Cooling
More settings (e.g. setpoint, Q-Limit
In order to adjust the automatic switchover between heating and cooling, select "Auto-
matic" and enter the switchover temperature each for heating and cooling.
Setting the
automatic or
manual switchover
between heating and
cooling.
The pump manually
switches to heating
application.
The pump manually
switches to cooling
application.
,...) can be made in the "Set auto control" menu.
