Installation and operating instructions Wilo-Stratos MAXO/-D/-Z
Communication interfaces: Setting and function
Signal type analogue input (AI2)
For setpoint sensor
PT1000
0 – 10 V
2 – 10 V
0 – 20 mA
4 – 20 mA

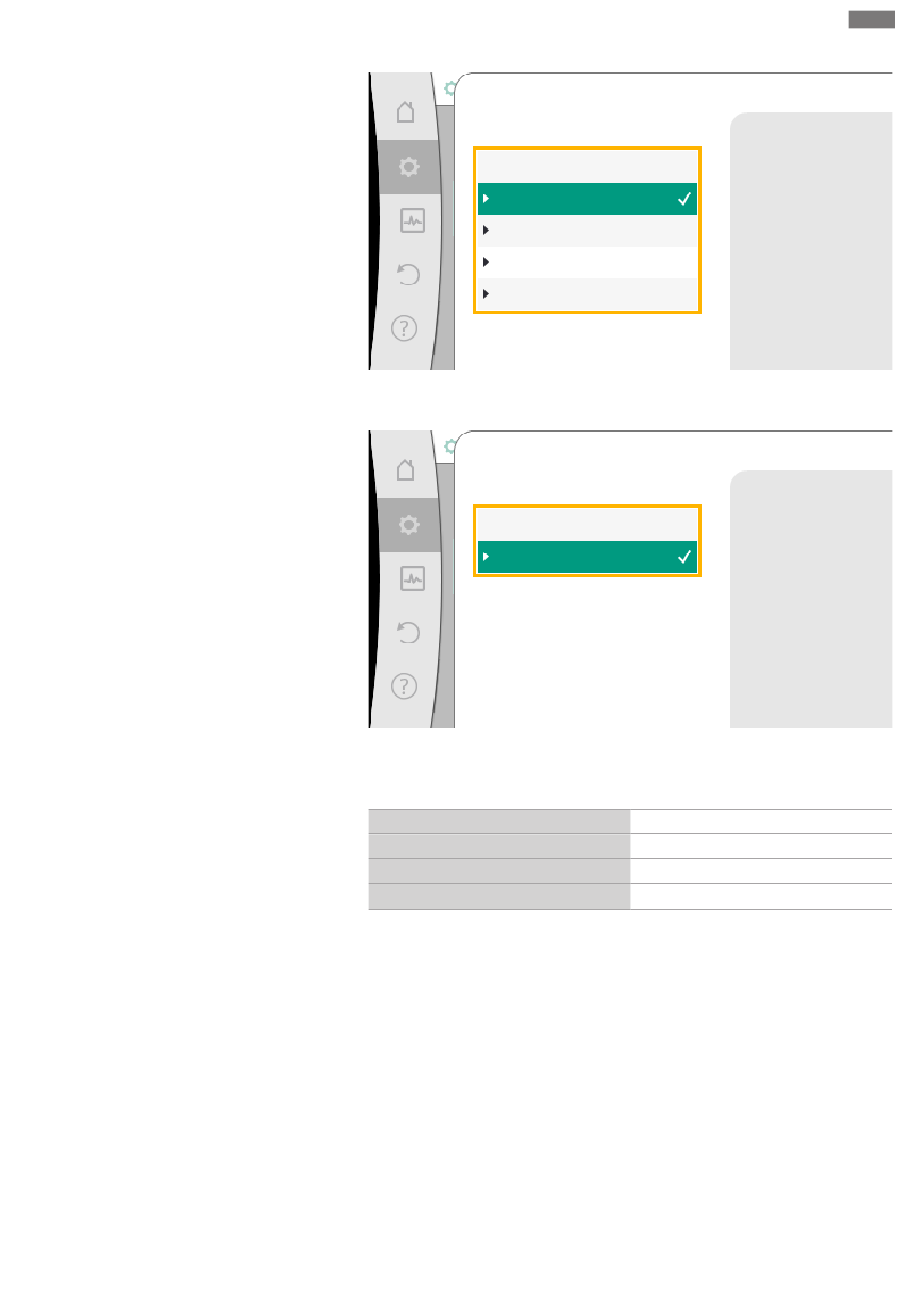

Fig. 69: Signal type
After selecting the signal type, it is defined how standard values are used:
Use standard values
Analogue input (AI2)
Specifications
User-defined settings
Fig. 70: Use standard values
Defined standards for the transfer of the signal are used with "Use specifications". Fi-
nally the setting of the analogue input is ended as setpoint sensor.
OFF:
ON:
Min:
Max:
Table 43: Standard signal assignment
Select "User-defined settings" to configure additional settings:
Optional cable break detection is available for 0 – 10 V and 0 – 20 mA signal types only.
Set analogue input to the
signal type 0...10 V.
Set the signal/values
assignment.
1.0 V
2.0
3.0 V
10.0 V
