3 842 539 953/2013-07 | TS 1
6. Insert the hex shaft (J) into the
hub of the drive or return head.
Place the toothed belt wheel
(K) on the hexagon shaft.
7. Insert the hex nut M5/WS 13
(L) on the inner side at the
return head. Screw the hexagon
shaft (J), toothed wheel belt
(K) and hexagon nut M5/WS13
(L) with a hex socket screw
M5x40 (G). Close the return
head hub with the blanking
plug.
8. At the drive head, screw the hex
shaft (J) and the toothed belt
wheel (K) with an Ejot K50x40
thread-forming screw (H).
The M5/WS13 nut is not
required for this step.
A
J
6
A - B
L
6
J
6
SW4

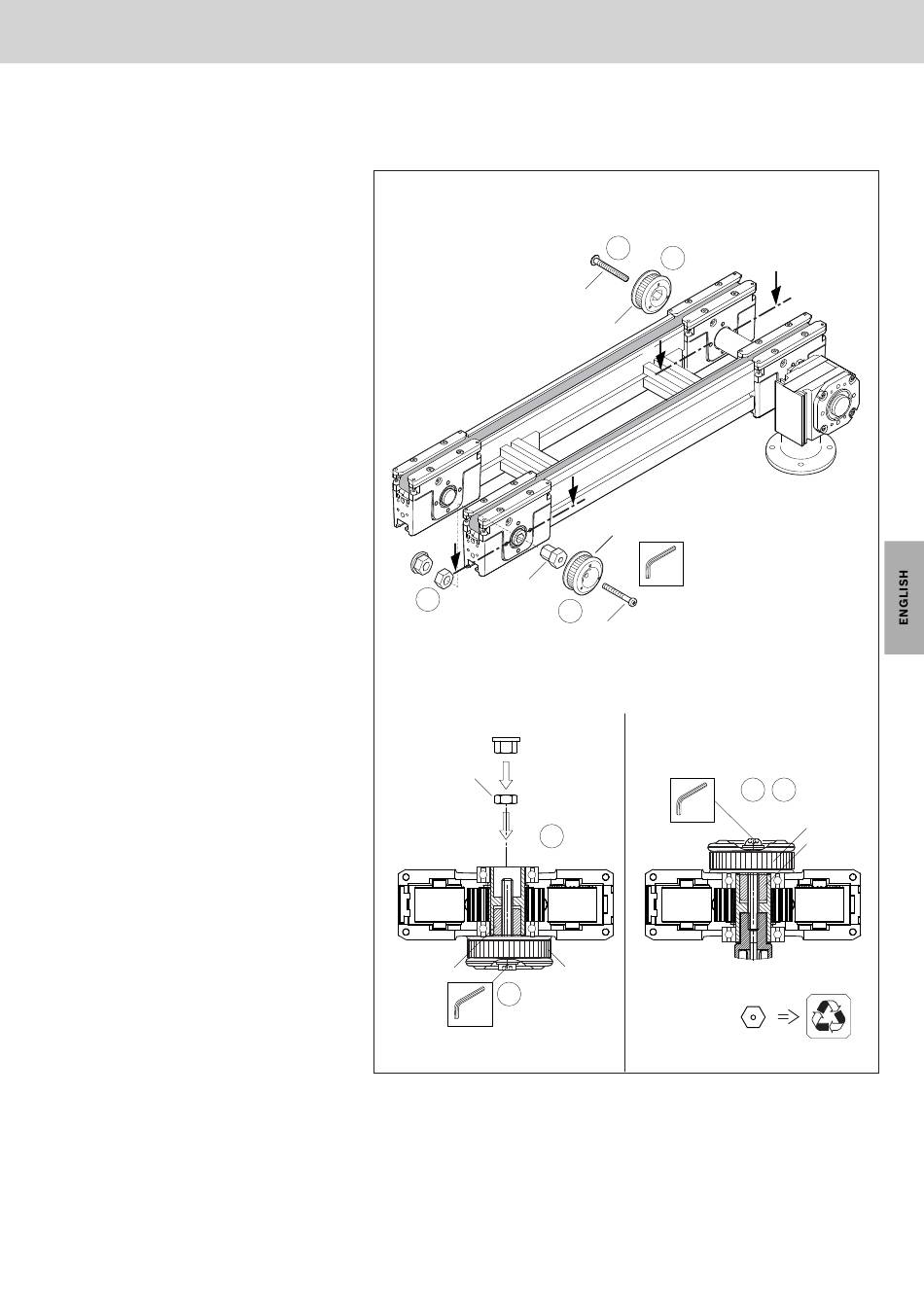

Fig. 6 Mounting the attachment kit on the BS 1/T belt section (2/3)
Bosch Rexroth AG
7
5
H
K
C
B
K K
SW4
M = 5Nm
D
5
G
C - D
SW3
M = 2,5Nm
D
K
19/42
D
4 7
K
J
L
539 953-05
