20/42 Bosch Rexroth AG
9. Insert the preassembled holding
plate (see Fig. 5 on page 18) with
the slotted hole combination on
the M4x10 fl ange head screws
protruding at the bottom of the
drive or return head (see Fig. 5
on page 18).
10. Slide the holding plate in
toward the left and fasten it
with the preassembled M4x10
(M) fl ange head screws.
9
SW2,5
M = 2,5Nm
D

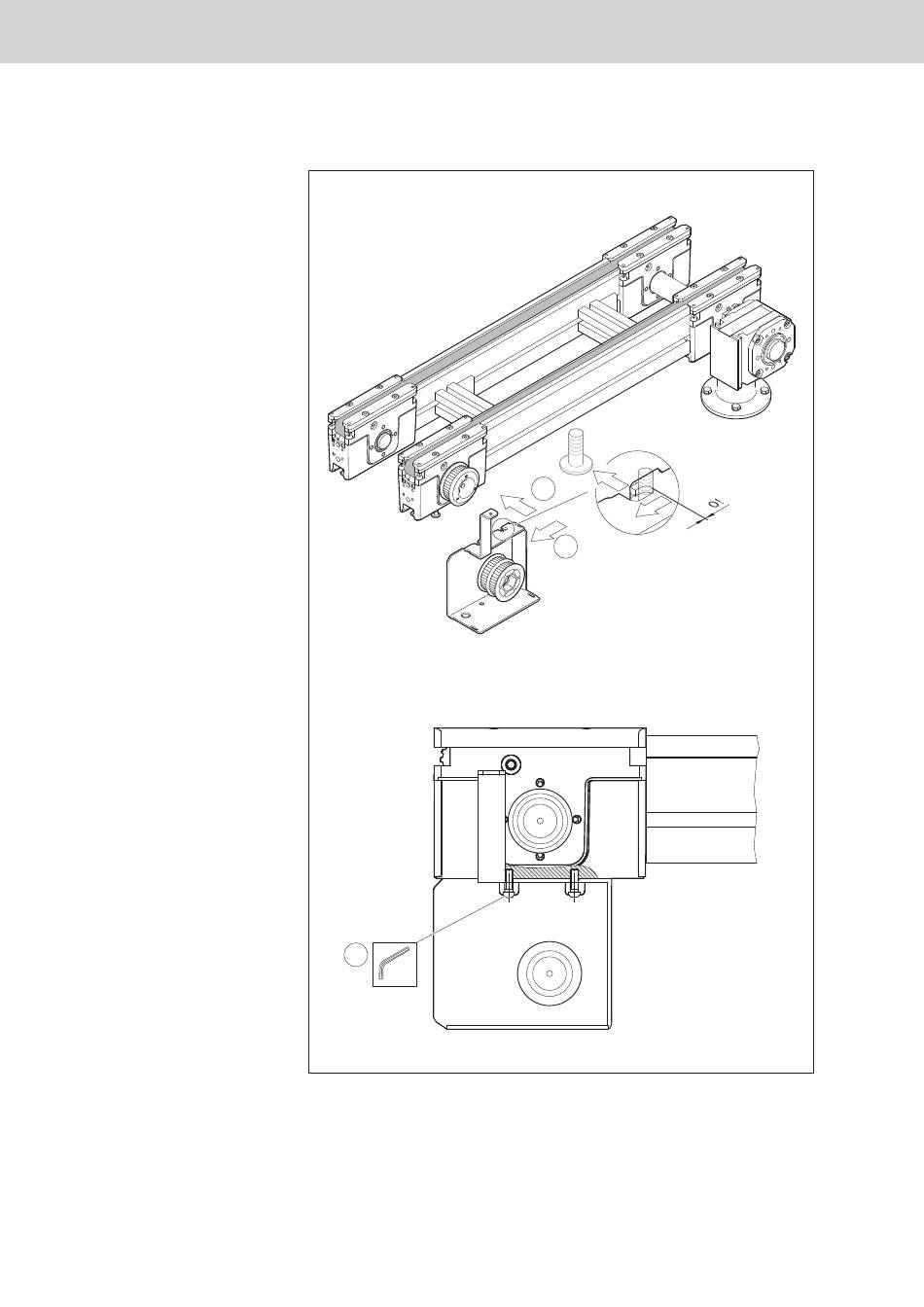

Fig. 7 Mounting the attachment kit on the BS 1/T belt section (3/3)
TS 1 | 3 842 539 953/2013-07
8
9
539 953-06
