- Open the other bleed valve and move purged oil tank to the other side.

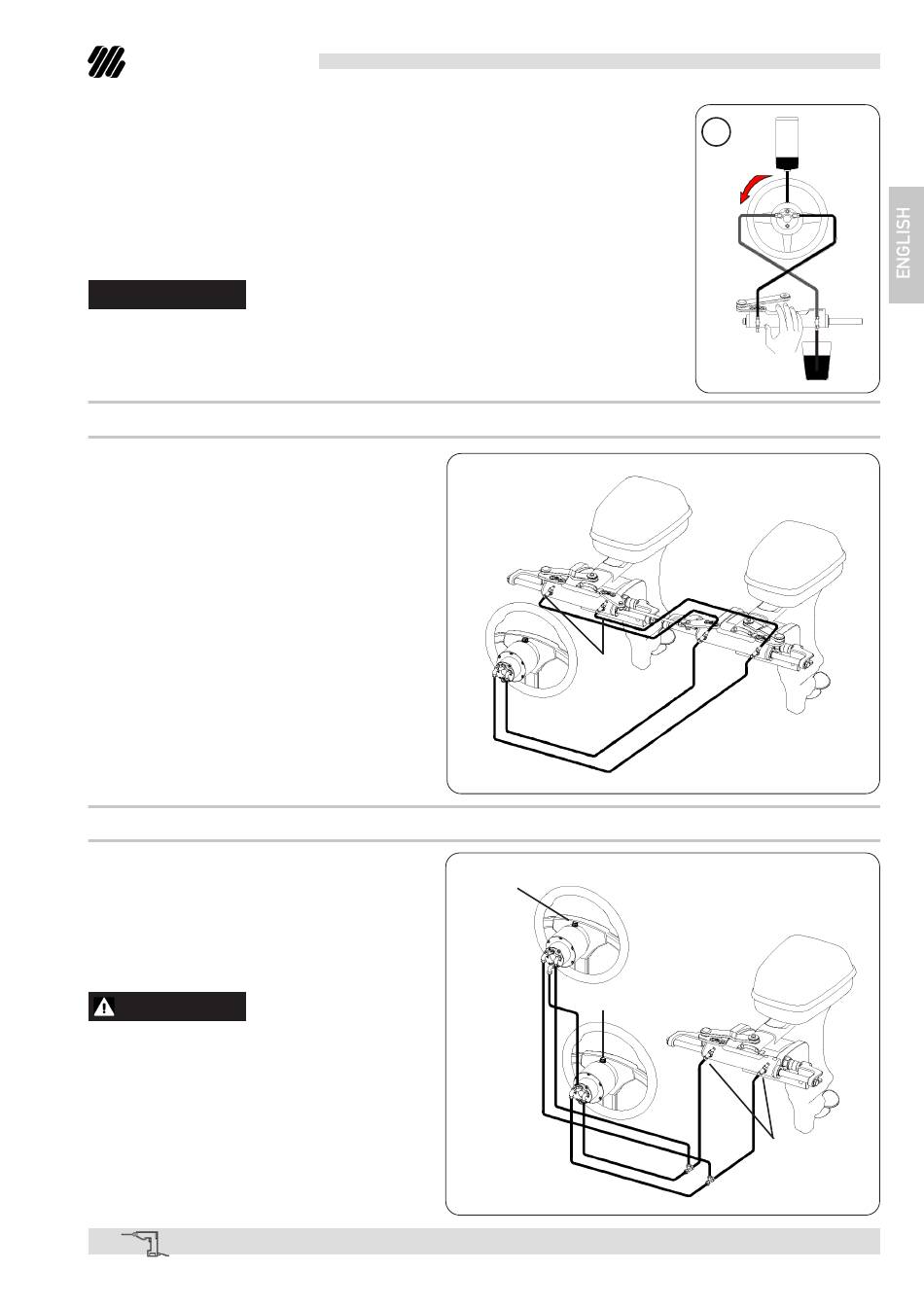

Holding the cylinder body in this position, turn the steering wheel as shown in
picture 4, until oil without air bubbles comes out of the bleed valve.
Then close the bleed valve.
- Repeat the entire procedure to ensure the absence of air in the system.
NOTICE
The described procedure is the same even in case of single station, dual engine,
single cylinder and tie bar.
3.7.3 Single steering station/ dual cylinder
- Manually unscrew the two bleed valves on the
cylinder "T" fittings and push the cylinders to
one side up to the end stroke.
- Position the oil bottle as described in paragraph
3.7.1.
- Follow the same bleeding procedure described
for the single steering station / single cylinder
(paragraph 3.7.2).
While turning the steering wheel be careful
because both cylinders move.
- Repeat the entire procedure several times to
ensure the air absence in the system.
3.7.4 Dual steering station/ single cylinder
- Manually unscrew the two bleed valves on the
cylinder "T" fittings and push the cylinder to one
side up to the end stroke.
- Position the oil bottle near the main steering
station (upper) according to what is described
in paragraph 3.7.1.
WARNING
Wait until the oil reaches the lower tank and both
tanks are filled.
- Follow the same bleeding procedure described
in paragraph 3.7.2 starting from the lower sta-
tion and repeat it for the upper station.
black vent
plug
HYDRAULIC CYLINDER FOR OUTBOARD ENGINE
Installation and Maintenance Manual
4
bleed
valves
silver non-vent
plug
bleed
valves
page 25
-
