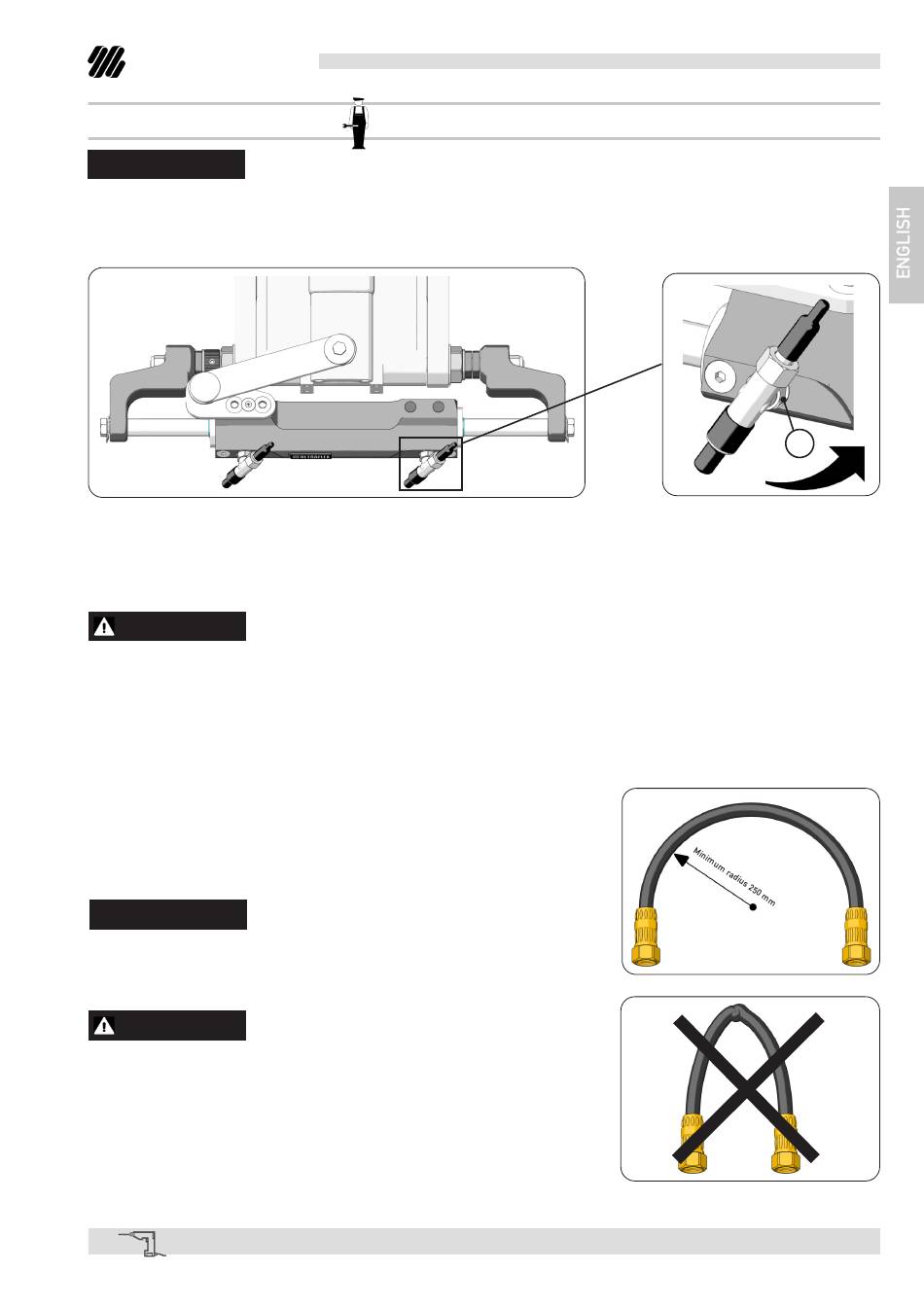

3.5 Hose installation
NOTICE
Unless expressly stated, for the tightening torques consider a tolerance of ±5% as to the value indicated
The two fittings mounted on the cylinder body are already oriented and are ready to be used. If for practical rea-
sons the orientation must be changed, do as follows:
1. loose the locknut (A) by using a 11/16"wrench;
2. orient the fittings according to the requirements;
DANGER
Do not unscrew the fittings more than one turn (360°).
3. tighten again the stop nut with a torque of 20[Nm] (15[lb∙ft]) until the washer comes into contact with it.
Screw the hoses on the cylinder fittings with a torque of 20[Nm] (15[lb∙ft]) according to the following instructions:
-
minimum hose bend radius 250 mm;
-
no interference during engine tilting;
-
no interference with the transom;
NOTICE
In case of systems with more than one engine, identify the port cylinder
and the starboard cylinder and their connections to distinguish them easily
if necessary.
WARNING
An excessive hose bend could result in its internal breaking which will
cause a bad operation of the system. In this case it is necessary to replace
the damaged hose.
HYDRAULIC CYLINDER FOR OUTBOARD ENGINE
Installation and Maintenance Manual
page 21
-
