Changingthe Light Bulb - Singer 5417C Manuel D'instructions

SINGER
Changing
bulb
BEFORE CHANGING
MACHINE FROM
Useoriginal SINGERlightbulbsonly(code 98B076).

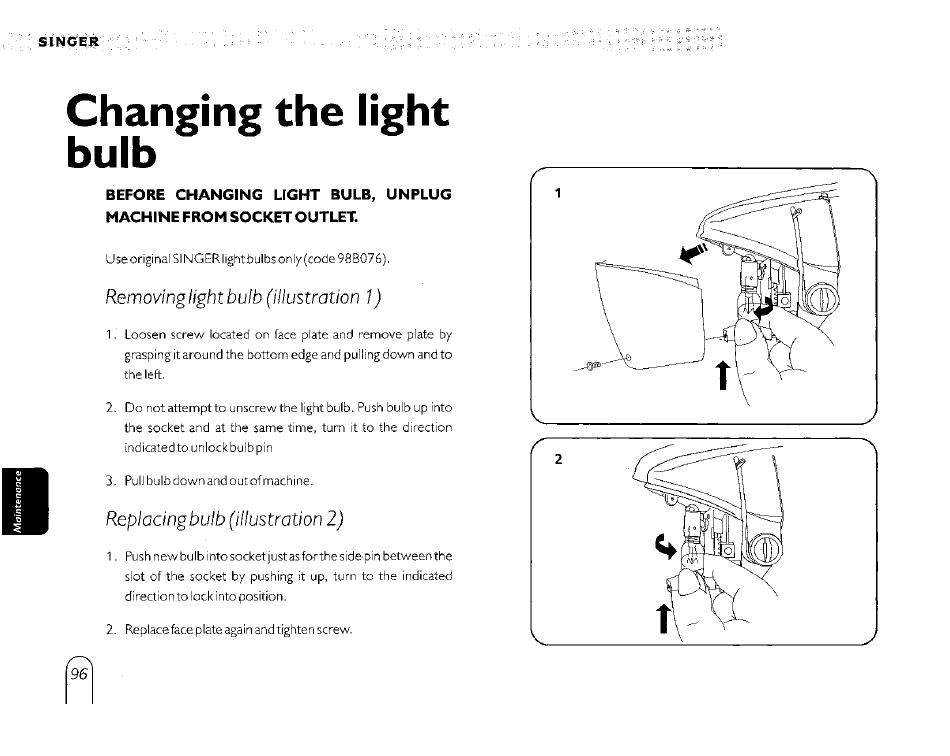

Removing light bulb (illustration 1)
1. Loosen screw located on face plate and remove plate by
graspingit around the bottom edgeand pullingdown andto
the left.
2. Do not attempt to unscrewthe light bulb. Pushbulb up into
the socket and at the same time,
indicated to unlock bulb pin
3. Pull bulb down and outofmachine.
Replacingbulb (illustration 2)
1. Pushnew bulb into socketjustasforthe sidepin between the
slot of the socket by pushing it up, turn to the indicated
direction to lock into position.
2. Replaceface plate againand tighten screw.
96
the light
LIGHT BULB, UNPLUG
SOCKET OUTLET.
turn it to the direction
1
2
o
(l))
