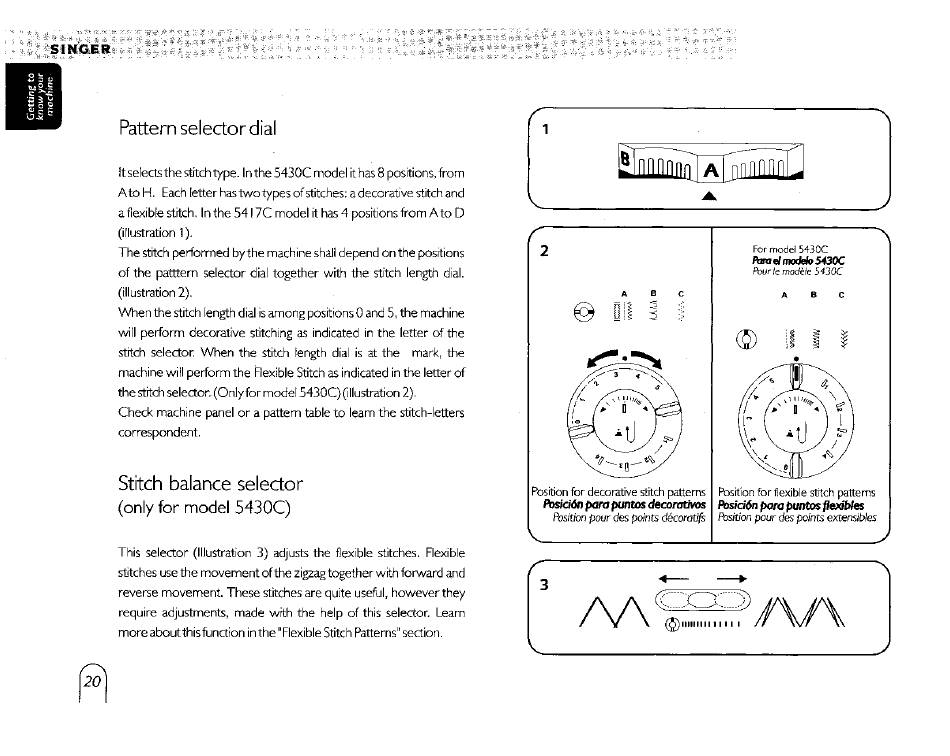

Pattern selector
it selects the stitchtype. Inthe 5430C modelit has8 positions, f rom
Ato H. Eachletterhastwotypes ofstitches: a decorativestitchand
a flexibEe stitch. In the 54 17C model it has4 positionsfrom A to D
(illustration 1).
The stitchperformedbythe machineshall d ependon the positions
of the patttern selector dial together with the stitch length dial.
(illustration 2).
When the stitch lengthdial isamong positions0 and 5, the machine
will perform decorative stitchingas indicatedin the letter of the
stitch selector.When the stitch length dial is at the mark, the
machinewiFlperform the FlexibleStitchas indicatedin the letter of
the stitchselector.(Onlyfor model 5430C)(illustration 2).
Check machinepanelor a pattem tableto learnthe stitch-letters
correspondent.
Stitch balance
(only for model 5430C)
This selector (Illustration3) adjuststhe flexible stitches.Flexible
stitchesusethe movementof the zigzag togetherwith forward and
reversemovement.Thesestitchesarequite useful,however they
require adjustments, made with the help of this selector. Learn
more about this function in the "Flexible Stitch Patternsli section.
20
dial
selector
1
2
B
A c
itJ
Positionfor decorativestitch patterns
Bsici6n Parapuntosdecorativos
Position pourdespointsdécorotjfs
3
For model 5430C
mod± 5430C
Pour 5430C
i
e,
Positionfor flexiblestitch pattems
Bsici6n parapuntosfießes
R)sitjon pour despointsextensibles
IVA
