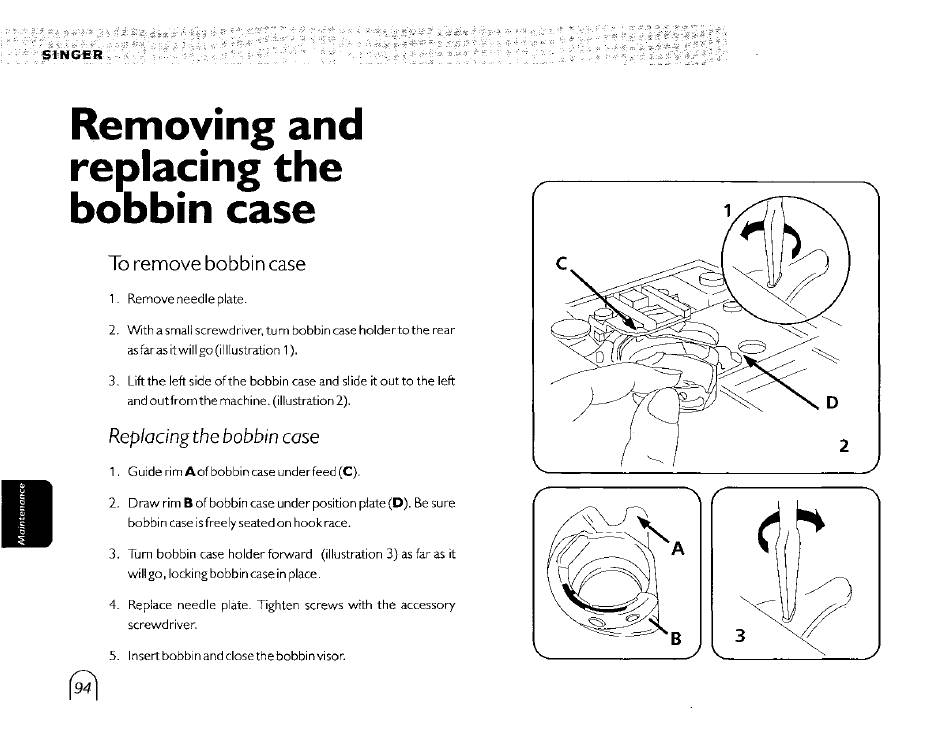

Removing and
replacing
bobbin
To remove bobbin
1. Remove needle plate.
2. With a small screwdriver,
asfarasitwill go(illlustration 1
3. Lift the left side ofthe
and outfrom the machine. (illustration 2).
Replacing the bobbin case
1. Guide rim Aofbobbin
2. Draw rim B of bobbin case under position plate
bobbin caseisfreely seatedon hook race.
3. Turn bobbin caseholder forward (illustration 3) asfar as it
will go, lockingbobbin casein place.
4. Replace needle plate. Tighten screws with the accessory
screwdriver.
5. Insert bobbin and close the bobbinvisor.
94
the
case
case
turn bobbincaseholdertothe
bobbin case and slide it out to the left
caseunderfeed (C).
c
rear
Be sure
1
D
2
