SYNCER

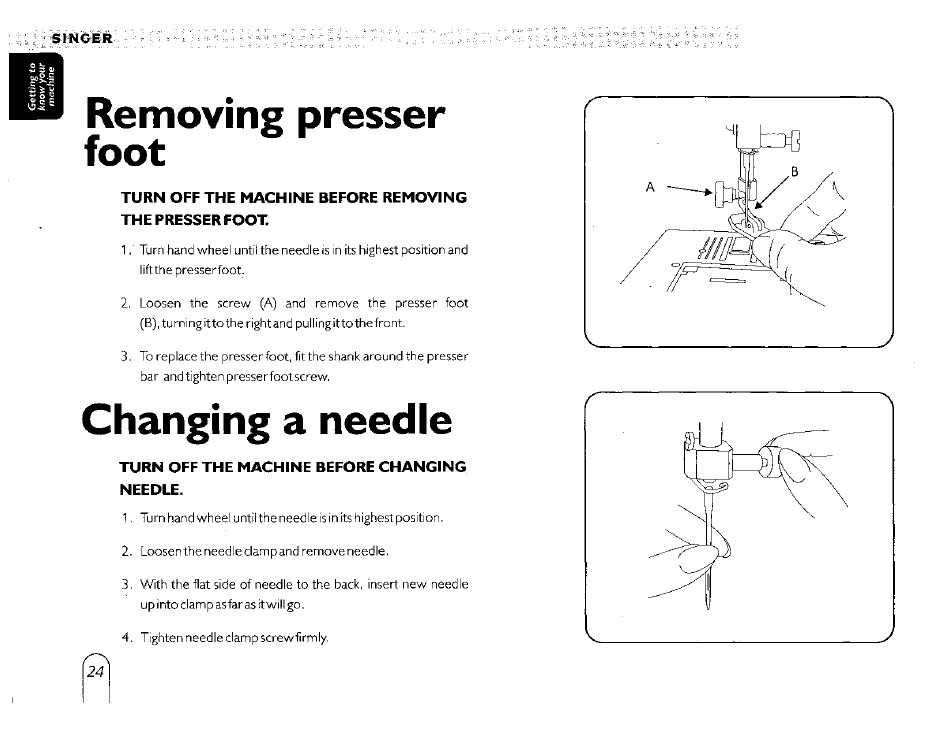

Removing
foot
TURN OFF THE
THE PRESSER FOOT.
1 Turn hand wheel until the needle is in its highest position and
liftthe presser foot.
2. Loosen the screw (A) and remove the presser foot
(B), turning itto the right and pulling itto the front.
3. To replace the presser foot, fit the shank around the presser
bar and tighten presser foot screw.
Changing a needle
TURN OFF THE
NEEDLE.
Turn hand wheel untii the needle isin its highest position.
I.
2.
Loosenthe needleclampandremove needle.
With the flat side of needle to the back, insert new needle
3.
up into clampasfar asitwillgo.
4. Tighten needle clamp screwfirmly.
24
presser
MACHINE BEFORE REMOVING
MACHINE BEFORE CHANGING
