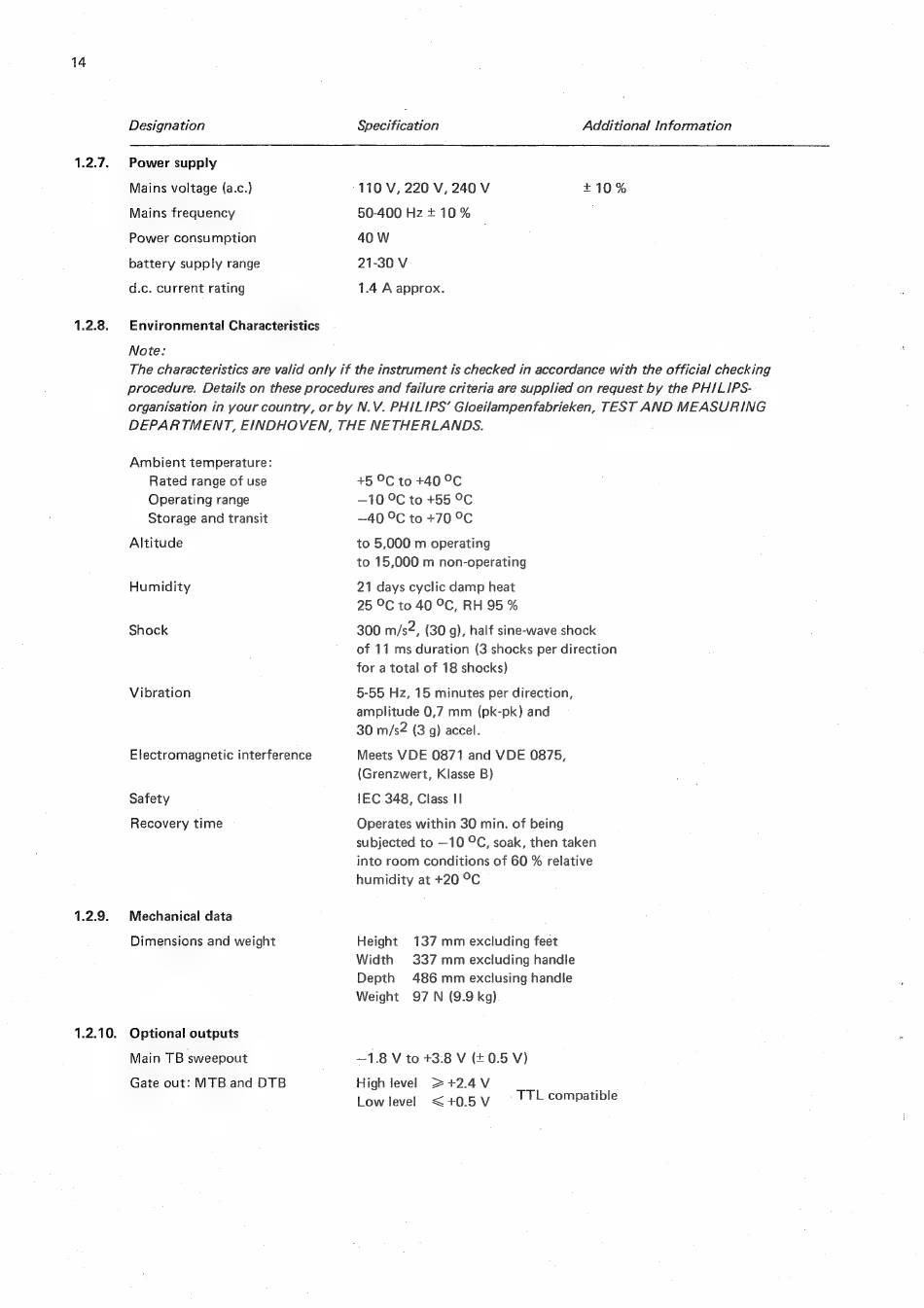

14
1.2.7.
1.2.8.
1.2.9.
1.2.10.
Designation
Specification
Additional Information
Power supply
Mains voltage (a.c.)
Mains frequency
Power consumption
battery supply range
d.c. current rating
Environmental Characteristics
Note:
110 V, 220 V, 240 V
50-400 Hz + 10%
40 W
21-30 V
1.4 A approx.
+10 %
The characteristics are valid only if the instrument is checked in accordance with the official checking
procedure. Details on these procedures and failure criteria are supplied on request by the PHILIPS-
organisation in your country, or by N.V. PHILIPS' Gloeilampenfabrieken, TEST AND MEASURING
DEPARTMENT, EINDHOVEN,
THE NETHERLANDS.
Ambient temperature:
Rated range of use
Operating range
Storage and transit
Altitude
Humidity
Shock
Vibration
Electromagnetic interference
Safety
Recovery time
Mechanical data
Dimensions and weight
Optional outputs
Main TB sweepout
Gate out: MTB and DTB
+5 °C to +40 OC
—10 °C to +55 °C
~40 °C to +70 °C
to 5,000 m operating
to 15,000 m non-operating
21 days cyclic damp heat
25 °C to 40 °C, RH 95 %
300 m/s2, (30 g), half sine-wave shock
of 11 ms duration (3 shocks per direction
for a total of 18 shocks)
5-55 Hz, 15 minutes per direction,
amplitude 0,7 mm (pk-pk) and
30 m/s2 (3 g) accel.
Meets VDE 0871 and VDE 0875,
(Grenzwert, Klasse B)
IEC 348, Class 1]
Operates within 30 min. of being
subjected to —10 °C, soak, then taken
into room conditions of 60 % relative
humidity at +20 °C
Height
Width
Depth
Weight
137 mm excluding feet
337 mm excluding handle
486 mm exclusing handle
97 N (9.9 kg)
—1.8 V to +3.8 V (+ 0.5 V)
2+24V
<+0.5V
High level
