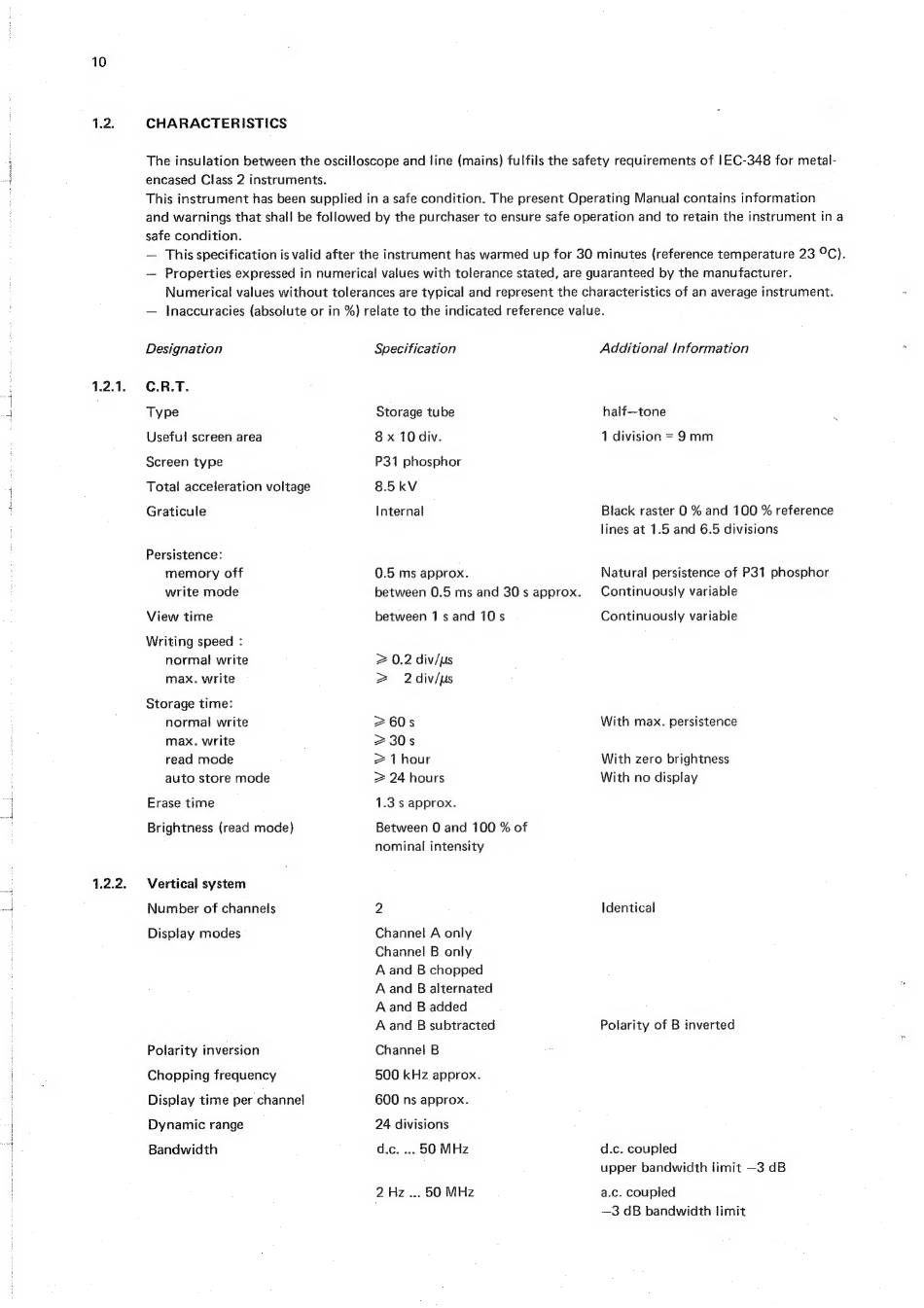

Philips PM3219/01 Notice D'emploi page 10

10
1.2.
1.2.2.
1.2.1.
CHARACTERISTICS
The insulation between the oscilloscope and line (mains) fulfils the safety requirements of |EC-348 for metal-
encased Class 2 instruments.
This instrument has been supplied in a safe condition. The present Operating Manual contains information
and warnings that shall be followed by the purchaser to ensure safe operation and to retain the instrument ina
safe condition.
— This specification is valid after the instrument has warmed up for 30 minutes (reference temperature 23 °C).
— Properties expressed in numerical values with tolerance stated, are guaranteed by the manufacturer.
Numerical values without tolerances are typical and represent the characteristics of an average instrument.
— Inaccuracies (absolute or in %) relate to the indicated reference value.
Designation
C.R.T.
Type
Useful screen area
Screen type
Total acceleration voltage
Graticule
Persistence:
memory off
write mode
View time
Writing speed :
normal write
max. write
Storage time:
normal write
max. write
read mode
auto store mode
Erase time
Brightness (read mode)
Vertical system
Number of channels
Display modes
Polarity inversion
Chopping frequency
Display time per channel
Dynamic range
Bandwidth
Specification
Storage tube
8x 10 div.
P31 phosphor
8.5kV
Internal
0.5 ms approx.
between 0.5 ms and 30 s approx.
between 1s and 10s
= 0.2 div/us
> 2div/us
260s
> 30s
2 1 hour
= 24 hours
1.3 s approx.
Between 0 and 100 % of
nominal intensity
2
Channel A only
Channel B only
A and B chopped
A and B alternated
A and B added
A and B subtracted
Channel B
500 kHz approx.
600 ns approx.
24 divisions
d.c. ... 50 MHz
2 Hz... 50 MHz
Additional Information
half—tone
1 division = 9mm
Black raster 0 % and 100 % reference
lines at 1.5 and 6.5 divisions
Natural persistence of P31 phosphor
Continuously variable
Continuously variable
With max. persistence
With zero brightness
With no display
Identical
Polarity of B inverted
d.c. coupled
upper bandwidth limit —3 dB
a.c. coupled
~3 dB bandwidth limit
