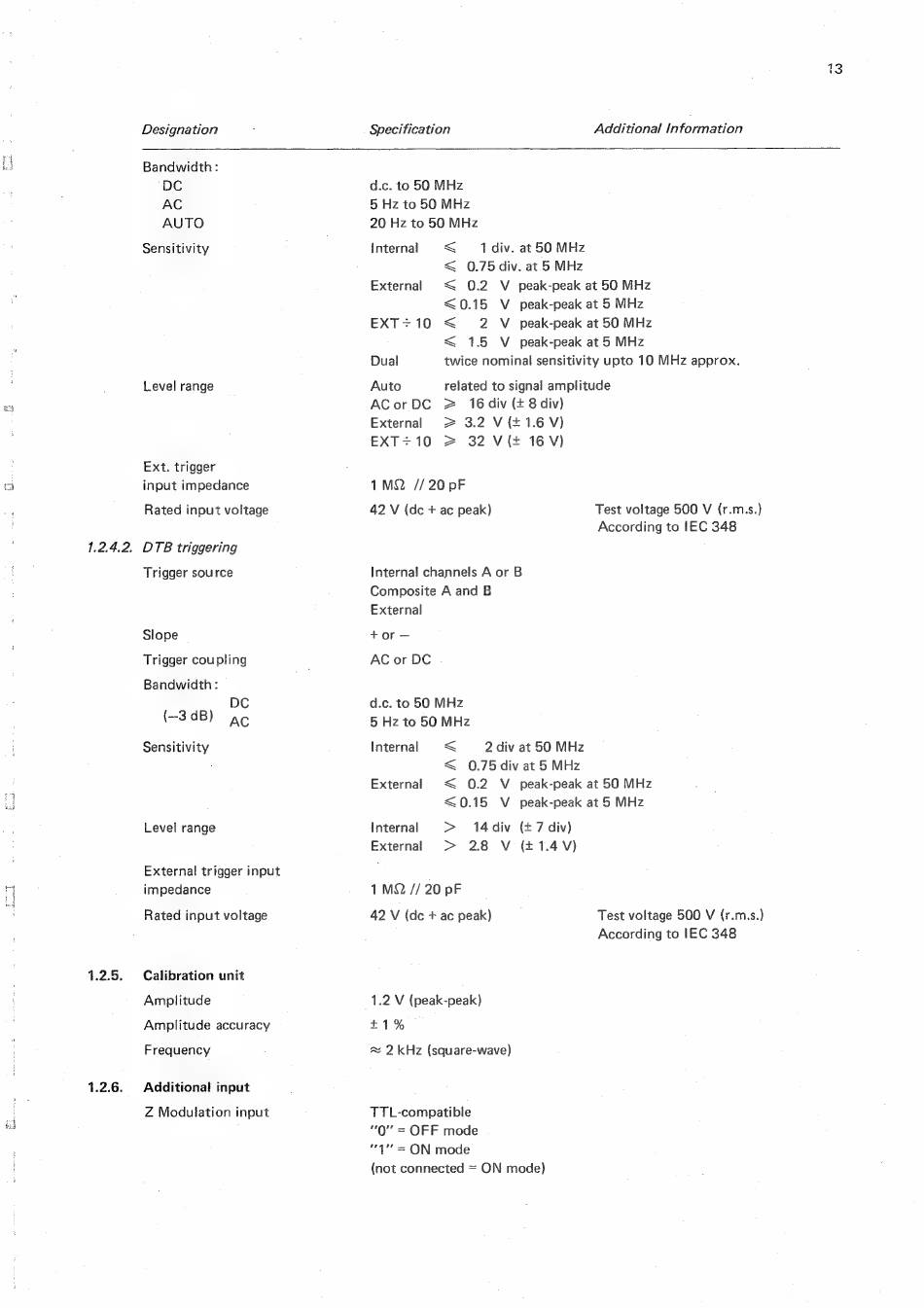

Philips PM3219/01 Notice D'emploi page 13

1.2.4.2.
1.2.5.
1.2.6.
Designation
Bandwidth:
DC
AC
AUTO
Sensitivity
Level range
Ext. trigger
input impedance
Rated input voltage
DTB triggering
Trigger source
Slope
Trigger coupling
Bandwidth:
DC
(-3dB) ac
Sensitivity
Level range
External trigger input
impedance
Rated input voltage
Calibration unit
Amplitude
Amplitude accuracy
Frequency
Additional input
Z Modulation input
Specification Additional Information
d.c. to 50 MHz
5 Hz to 50 MHz
20 Hz to 50 MHz
Internal <1 div. at50 MHz
< 0.75 div. at 5 MHz
External < 0.2 V_ peak-peak at 50 MHz
<0.15 V_ peak-peak at 5 MHz
EXT+10 < 2 V peak-peak at 50 MHz
< 1.5 V_ peak-peak at 5 MHz
Dual twice nominal sensitivity upto 10 MHz approx.
Auto related to signal amplitude
ACorDC 2 16 div (+ 8 div)
External 2 3.2 V (41.6 V)
EXT+10 2 32 V(+ 16 V)
1 MQ // 20 pF
42 V (de + ac peak) Test voltage 500 V (r.m.s.}
According to IEC 348
Internal channels A or B
Composite A and B
External
+or—
AC or DC
d.c. to 50 MHz
5 Hz to 50 MHz
Internal < 2 div at 50 MHz
< 0.75 div at 5 MHz
External < 0.2 V_ peak-peak at 50 MHz
<0.15 V_ peak-peak at 5 MHz
Internal > 14div (+7 div)
External > 2.8 V (41.4 V)
1 MQ // 20 pF
42 V (de + ac peak) Test voltage 500 V (r.m.s.)
According to IEC 348
1.2 V (peak-peak)
£1%
= 2 kHz (square-wave)
TTL-compatible
"0" = OFF mode
'"1'"= ON mode
(not connected = ON mode)
