24

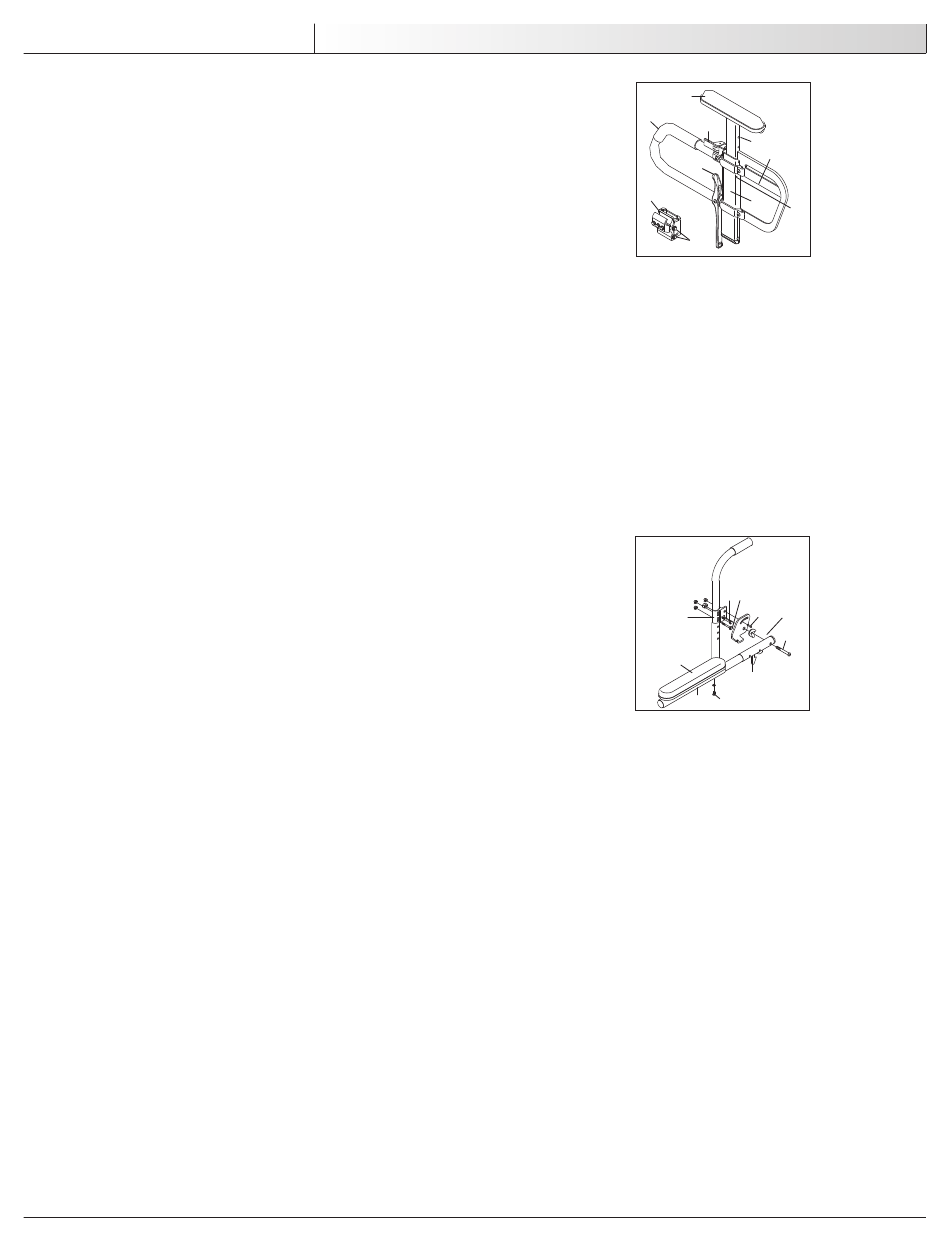

H. HEIGHT-ADJUSTABLE ARMREST (OPTIONAL)
1. Installation
a. Slide the outer armpost (1) down into the receiver (2) mounted to the wheelchair
frame.
b. The armrest will automatically lock into place.
2. Height Adjustment
a. Release the upper securing lever (10).
b. Slide armrest pad up or down to desired height.
c. Return lever to locked position.
d. Push arm pad until upper armpost locks firmly into place.
3. Removing Armrest
a. Pull the release lever back (3).
b. Slide armrest out from the receiver (2).
4. Replacing Armrest
a. Slide armrest back into receiver (2).
b. Push down firmly until the release lever (3) locks back in place.
5. Adjusting Armrest Receiver Fit
To tighten or loosen the fit of the outer armpost in the receiver:
a. Loosen all four bolts (9) on the sides of the receiver (2).
b. With the armrest in the receiver, squeeze the receiver to achieve the desired fit.
c. Tighten all four bolts (9).
6. Adjusting Inner Armpost Fit
a. Two set screws are installed in the outer armpost (7).
b. Turn the set screws in or out until the desired fit is achieved.
I. ADJUSTABLE LOCKING FLIP-UP ARMRESTS
1. Flip up and down
a. Release the upper securing lever (B).
b. Flip the armrest back, it remains attached to the back post.
c. Move armrest down into place.
d. The lever (B) locks itself in position automatically.
2. Height Adjustment
a. Loosen bolts (C, D) and remove flip-back tube.
b. Loosen bolts (E, F) and remove clamp (J).
c. Move the clamp (J) up or down to the desired position.
d. Tighten bolts (E, F).
e. Install the flip-back tube back in place and tighten bolts (C,D).
f. Repeat the process for the other armrest.
3. Angle-Adjustment
a. Loosen bolt (D).
b. Set armrest at desired angle using preset holes in armrest angle plate.
c. Tighten bolt.
4. Length-Adjustment (optional)
a. Remove foam grip or armpad (A) from armrest.
b. Loosen screw (G) in the adjustable flip-up tube.
c. Reposition the sleeve (I) at the desired length.
d. Re-tighten the screw (G).
e. Put foam grip or armpad back in place.
931135 Rev. A
E n g l i s h
I X . S e t - U p & A d j u s t m e n t
4
5
10
8
6
3
2
1
9
1. Outer armpost
2. Standard receiver
3. Armrest release lever
4. Armrest pad
5. Transfer bar
6. Side panel
7. Outer armpost tension
adjustment set screws
8. Inner armpost
9. Receiver adjustment bolts
10. Upper release Lever
E F
D
J
A
B
G
I
Adjustable Locking Flip-Up
A. Armrest Pad
B. Upper Securing Lever
H. Flip-back tube
I. Sleeve
J. Clamp
7
H
C
