I X . S e t - U p & A d j u s t m e n t

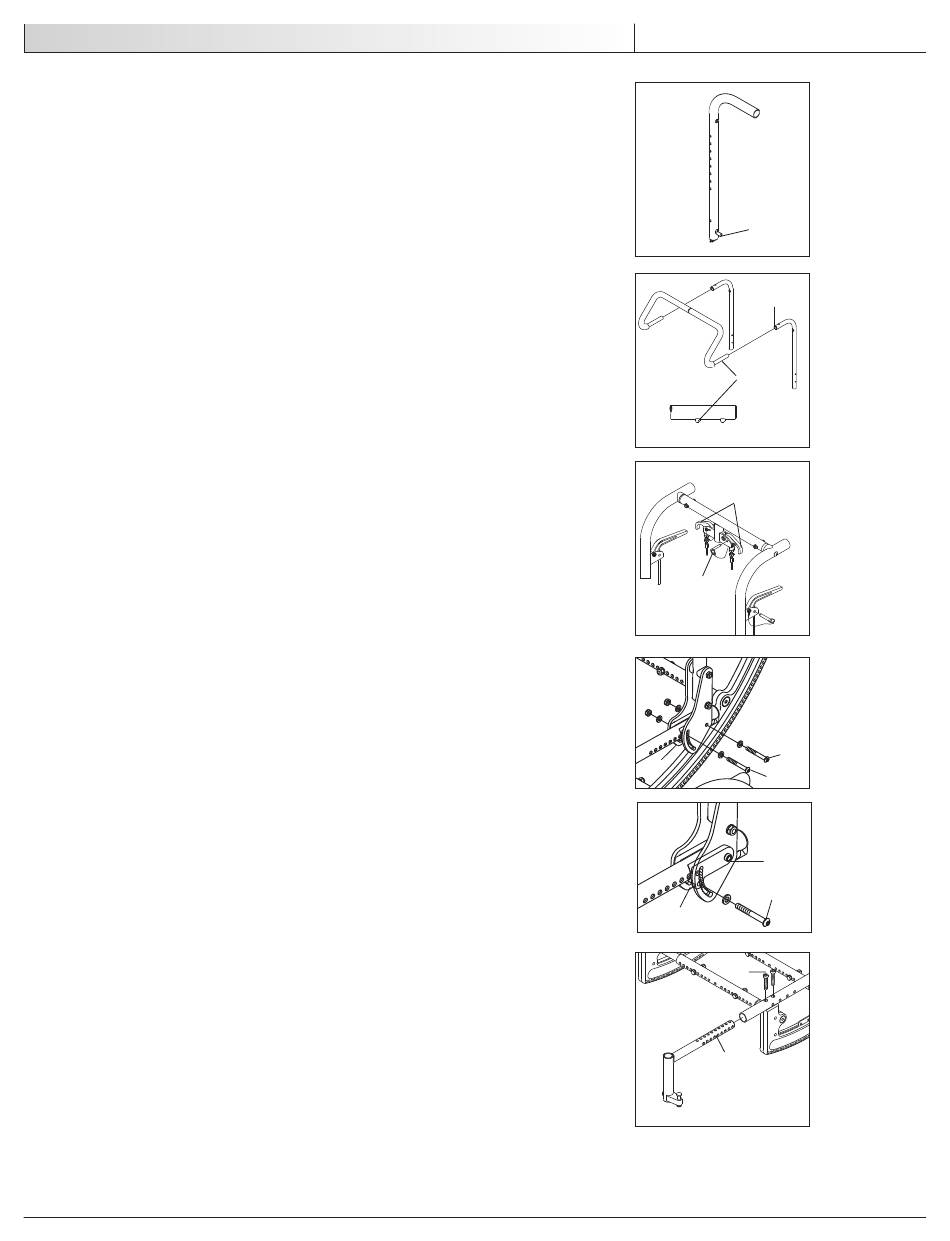

4. Flip-Down Back Function
a. To fold the back down, pull-up the back release pins (A) and push the backrest forward.
b. To lock it back in position, lift the backrest firmly until it locks in its original position.
N. STROLLER HANDLE EXTENSION (OPTIONAL)
Installation
a. Press button (B) on the stroller handle so that release pins are drawn inside the tube.
b. Insert the tube into the back tube receiver (C) until the release pin protrudes
through the receiver mounting hole.
O. RECLINING BACK
The dual trigger reclining mechanism is installed by Sunrise.
1. To Recline or Raise Backrest
a. Depress both triggers (D) at the same time. Releasing the triggers positively locks the
backrest in place within its 60° range.
b. To lock out the adjustment system, insert the locking pin (E) into the trigger holder.
Always lock the dual trigger reclining mechanism securely in place after positioning
the backrest.
P. FRAME DEPTH
1. Back adjustment
a. Loosen and remove the front bolt (F) located in front of back mounting plate and use
it to secure the angle of the backrest using position G in the saddle (underneath the
side rail).
b. Loosen and remove the rear bolt (H) from the back mounting plate.
c. Repeat both steps on the other side.
d. Slide the backrest along the seat rail to the desired position.
e. Replace and tighten the rear bolt (H).
f. Remove the front bolt from position G and insert it in its original location.
g. Repeat on the other side.
IMPORTANT NOTE– The adjustment on each side of the chair should be exactly equal.
NOTE– Use a torque setting of 240 in.-lbs. When setting-up back depth adjustment.
2 Hanger Receiver Adjustment
a. Loosen and remove both socket head screws (A) from the seat rail.
b. Slide the hanger receiver (B) in the seat rail to the desired position.
c. Replace and tighten the socket head screws.
d. Repeat on the other side.
IMPORTANT NOTE– These adjustments may also require re-positioning the carriage over the base frame,
refer to matrix in the ordering guide for recommended location.
NOTE– Use a torque setting of 240 in.-lbs. When setting-up hanger receiver.
E n g l i s h
A
C
B
D
E
H
G
F
H
F
G
A
B
27
931135 Rev. A
