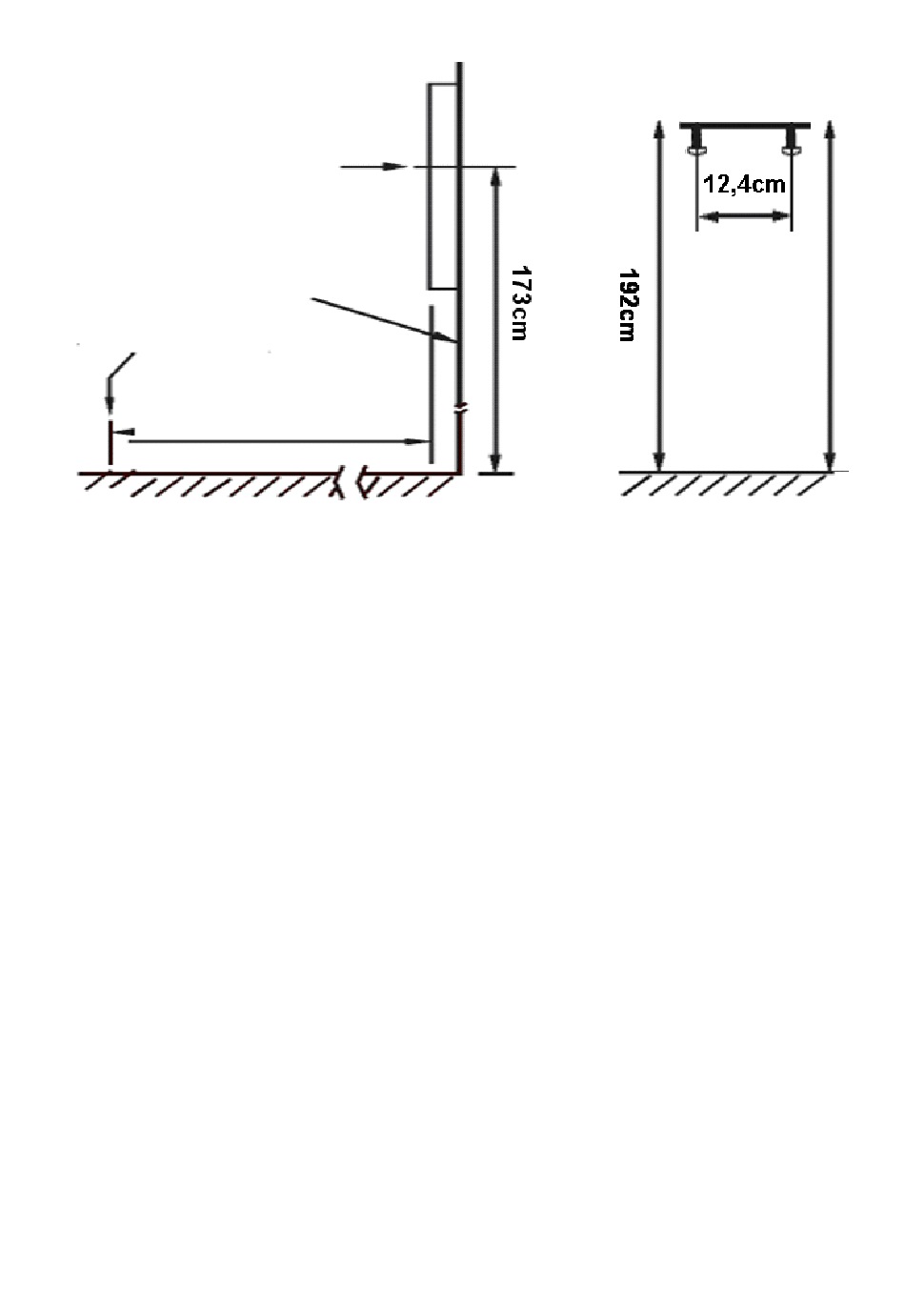

Center of the
Dartboard (Bull's Eye)
Throwing line
237cm
TOOLS REQUIRED FOR ASSEMBLY:
• Screwdriver and drill - (not included)
• 3 AA Batteries (not included)
1. Preparing the darts: Screw the point (tip) and shaft into the grip (barrel). If extra
flights, bend the flight into shape and put it into the shaft.
2. Select a suitable location with about 2.5m (8 feet) of open space. The throwing
distance between dartboard and player must be 2.37m (7 feet 9¼ inches).
3. Place two marks side-by-side on the selected wall studs 192cm (75 5/8") above
the floor, with 12,4 cm (4 7/8") between them. Screw two screws into the
reference marks until the screw heads are protruding about 13mm (1/2') from
the wall.
4. Drill pilot holes where you have marked, and mount the dartboard using the
mounting screws provided.
5. The battery compartment is accessed from the rear of the dartboard by
removing the screw from the base and lifting the back cover. Install 3 AA
batteries (not included) to the battery holder. Replace the back cover and fix
with screw.
6. Familiarize yourself with the function of your dartboard before use. Should you
suspect the dartboard does not work correctly, please refer to the TROUBLE
SHOOTING section in this manual first.
MOUNTING INSTRUCTIONS
Wall
2
