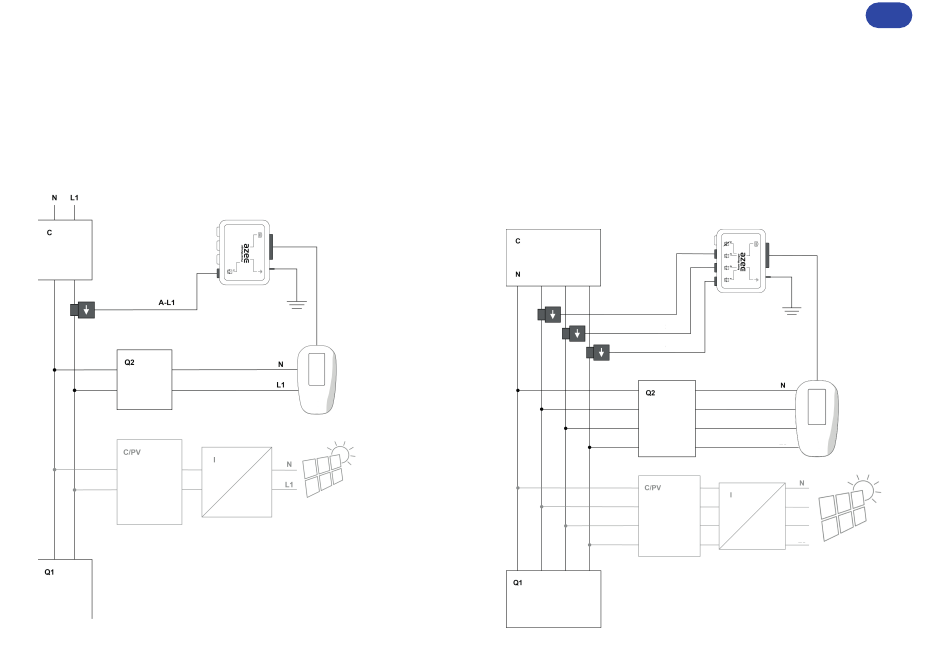

3. Wiring diagram of PM03M in a single-phase system
C: meter
Q1, Q2, ...: electrical cabinets
B: CT box board
A-L1 / L2 / L3: current sensor
C-PV: photovoltaic meter / I: photovoltaic inverter
(if photovoltaic system is present)
NOTE: The A sensor must be installed upstream
of the charger connection to monitor its con-
sumption, along with all loads connected under
the meter.
B
*
Daze
charger
4. Wiring diagram of PM03T30/PM03T100 in a three-phase system
C: meter
Q1, Q2, ...: electrical cabinets
B: CT box board
A-L1: current sensor
C-PV: photovoltaic meter / I: photovoltaic inverter
(if photovoltaic system is present)
L3 L2 L1
A-L3
A-L2
A-L1
NOTE: Sensors A must be installed upstream of the
charger connection to monitor its consumption,
along with all loads connected under the meter.
EN
B
*
L3
Daze
charger
L2
L1
L3
L2
L1
