DAZE Power Manager Manuel D'installation page 7

EN
02.3 - Mounting
1. Prepare the installation of a network cable of the type specified in the "Installation" section of Chapter "1" to connect the CT Box to
the charger installation location.

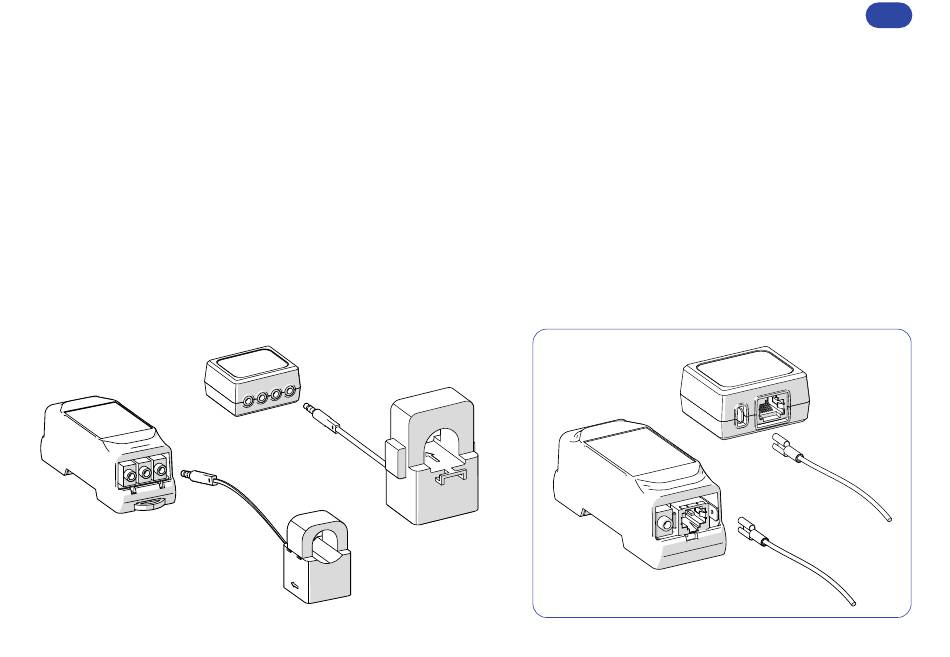

2. The current sensor (A) must be positioned on the line cable (L) exiting the main meter (C) before any branching. If using a three-
phase meter, place the three sensors respectively on L1, L2, and L3. Refer to the wiring diagrams on pages 22-23 to position the
sensor correctly. Incorrect placement may cause malfunctions.
3. The current sensor has a jack connector (J) for connection to the CT box board (B). The board also has an RJ45 input for connecting
the CT box to the charging system using a shielded Cat5e network cable.
The RJ45 connectors for wiring both cable ends are included. Crimping instructions are provided from step 5 to step 12 on the
following pages. Perform grounding using a Faston connector (as shown in Fig. 2).
B
Fig. 2
B
J
J
A
A
7.
