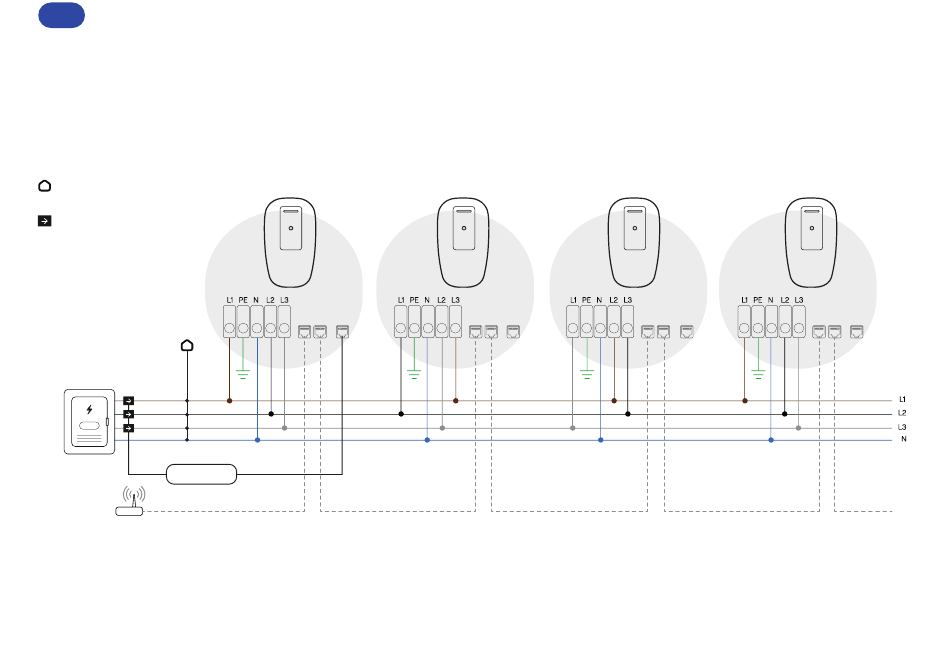

- For Dazebox Share, Duo, and Urban: Connect the CT box to the Ethernet port (PM) and the router to the Ethernet port (IN) of the
Master (see figure below). For Slaves, connect the Ethernet OUT port of the Master to the IN port of the first Slave. Repeat the OUT/IN
connection between the Slaves. Refer to the "Connections" chapter in the charger installation manual for port identification.
= Other loads under
the same meter
= Current sensor
CT box
Router
16.
Charger
Charger
Master
IN
OUT
PM
Charger
Slave
Slave
IN
OUT
PM
Charger
Slave
IN
OUT
PM
IN
OUT
PM
