DAZE Power Manager Manuel D'installation page 8

EN

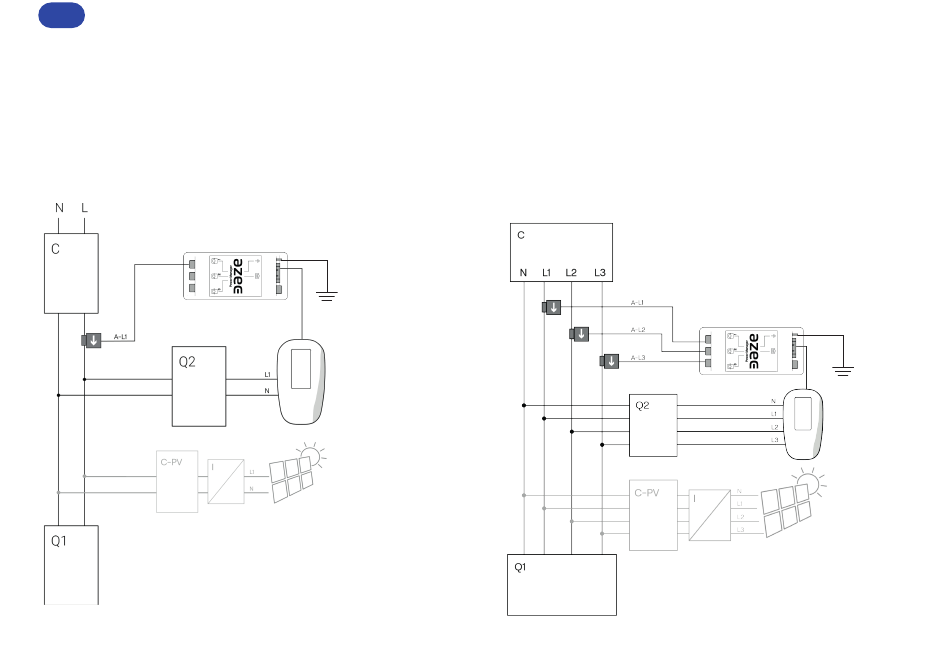

1. Wiring diagram of PM02M in a single-phase system
C:Meter
Q1, Q2, ...: electrical cabinets
B: CT box board
A-L1: current sensor
C-PV: photovoltaic meter / I: photovoltaic inverter
(if photovoltaic system is present)
B
NOTE: Sensor A must monitor both the
consumption of meter C and the consumption of
the charger, not just one of the two
8.
*
Daze
charger
2. Wiring diagram of PM02T/PM02T100 in a three-phase
system
C: meter
Q1, Q2, ...: electrical cabinets
B: CT box board
A-L1 / L2 / L3: current sensor
C-PV: photovoltaic meter / I: photovoltaic inverter
(if photovoltaic system is present)
NOTE: Sensors A must be installed upstream of the
charger connection to monitor its consumption,
along with all loads connected under the meter.
B
1
2
3
*
Daze
charger
