DAZE Power Manager Manuel D'installation page 17

- For Dazebox Home: Connect the CT box to the designated Ethernet port (PM) of the Master charger. Both Master and Slave must be
directly connected to the same router/switch through their respective Ethernet ports (Eth). Refer to the "Connections" chapter in the
charger manual for port identification.
= Other loads under
the same meter
= Current sensor
CT box
Ethernet switch
Router

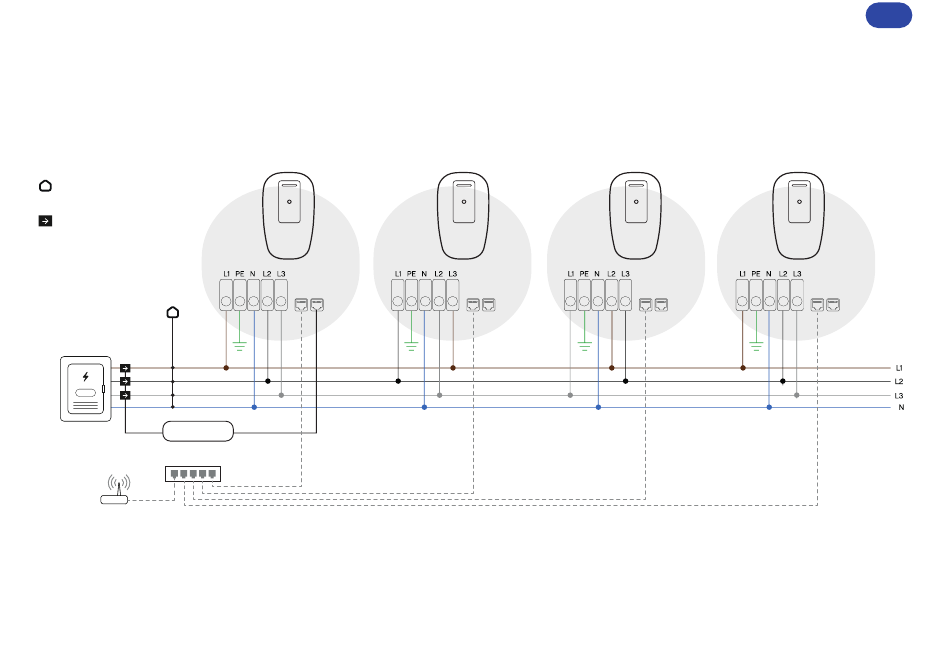

IMPORTANT NOTE: The Load Balancing function is compatible with both single-phase and three-phase systems.
In the case of a three-phase system (where only three-phase chargers must be installed), it is important to evenly distribute the
phases in the wiring of the different chargers to avoid overloading a single phase (see diagrams). During the Load Balancing
configuration via the App, it is required to specify the phase order for each individual charger.
Dazebox Home Dazebox Home
Master
Eth PM
Dazebox Home
Slave Slave
Eth PM
Dazebox Home
Slave
Eth PM Eth
EN
PM
