4. The CT box (codes: PM02M, PM02T,
PM02T100) can be mounted on a DIN rail by

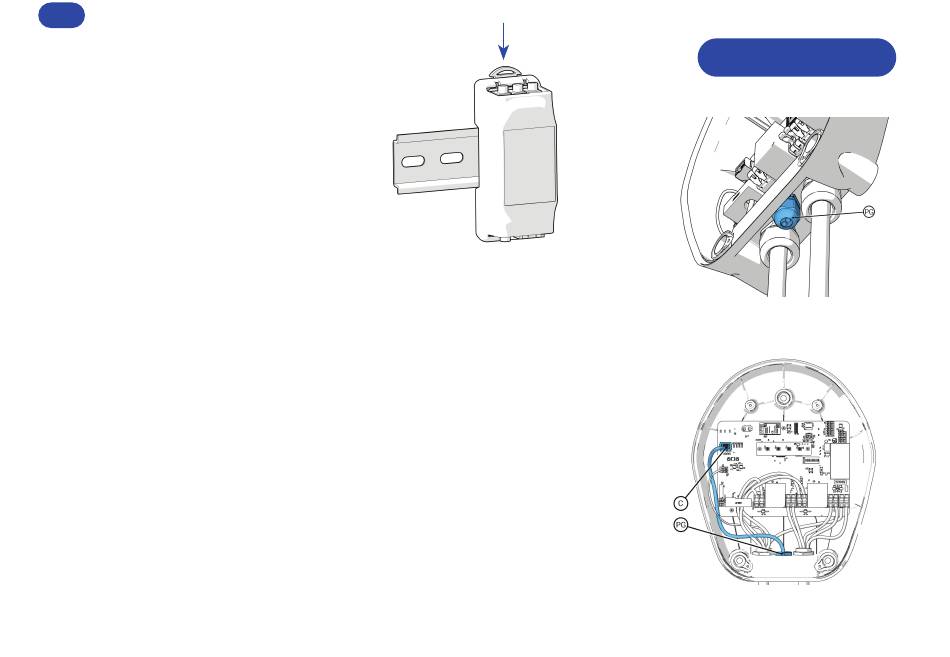

pulling and releasing the designated clip (Fig. 5).
The compact CT box (codes: PM03M, PM03T30,
PM03T100) can simply be placed freely inside
the electrical panel.
For the connection, the following is required:
- For Dazebox C, shown in Figures 3a and 4a, the shielded network cable must
pass through a hole in the cable gland (PG) by breaking the blind bottom using a
screwdriver. This cable gland has two Ø5 mm blind holes, one designated for the
Power Manager and the other for the bipolar cable of the release coil (refer to the
Dazebox C Installation Manual).
- For Dazebox Home and Share T / S / TK / SK, shown in Figures 3b, 3c, 3d, 3e, 3f,
3g, 3h, 3i, 4b, 4c, 4d, 4e, 4f, 4g, 4h, 4i, the shielded network cable passes through
a hole in the cable entry membrane (M).
- For Duo T / S; shown in Figures 3l and 4l, the shielded network cable passes
through a hole in the cable entry membrane (M).
- For Urban T / S, shown in Figures 3m and 4m, the shielded network cable passes
through a hole in the cable entry membrane (M).
NOTE: To ensure proper operation of the Power Manager, sensor cable
extensions cannot be used.
10.
Fig.5
Dazebox C
Fig. 3a
Fig. 4a
