Connecting via PCIe
Blackmagic Design PCIe cards plug into a PCIe slot in your computer. Check the information
printed on your card's box to determine the number of PCIe lanes your card requires.
For example, depending on your PCIe card, it will require a x1, x4 or x8 PCIe slot.
It's worth noting that you can insert PCIe cards into higher capacity slots than they require.
For example, a x4 lane PCIe card can be inserted into a x16 lane PCIe slot, though not the other
way around.
If you can't find the information you need on the box, you can find the number of lanes
your card requires, plus other helpful information about your card, in the tech specs at
www.blackmagicdesign.com/products

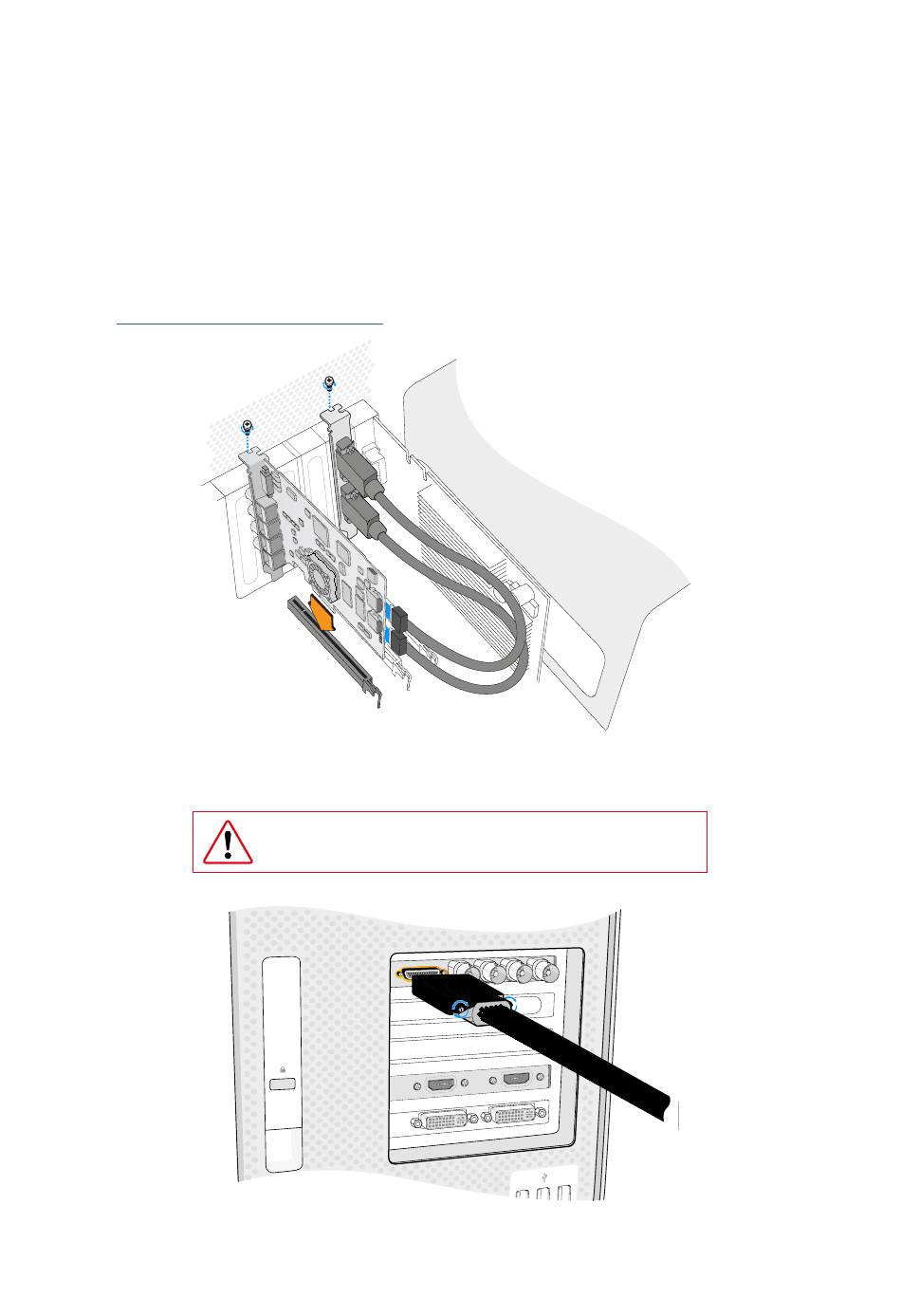

Install a Blackmagic Design PCIe card in a spare PCIe slot. If your card includes an
HDMI bracket, it can be installed in any spare PCIe mount and connects to the rear
of the card with the supplied HDMI cables.
Please be careful when installing your DeckLink PCIe card
to avoid damaging delicate components on the card.
If your card includes a breakout cable, simply plug it into your card's breakout
cable connector.
