If your UltraStudio HD Mini is installed in a Blackmagic Universal Rack Shelf, you will need to
remove the unit from the rack shelf to access the front panel screws.
See the 'Blackmagic Universal Rack Shelf' section for more information.
The original basic panel is very strong, so if you need to mount your Blackmagic UltraStudio HD
Mini in the back of a rack system or in areas where there are lots of cables or activity, you can
always reinstall the original basic panel.
Smart Panel Features
LCD Display

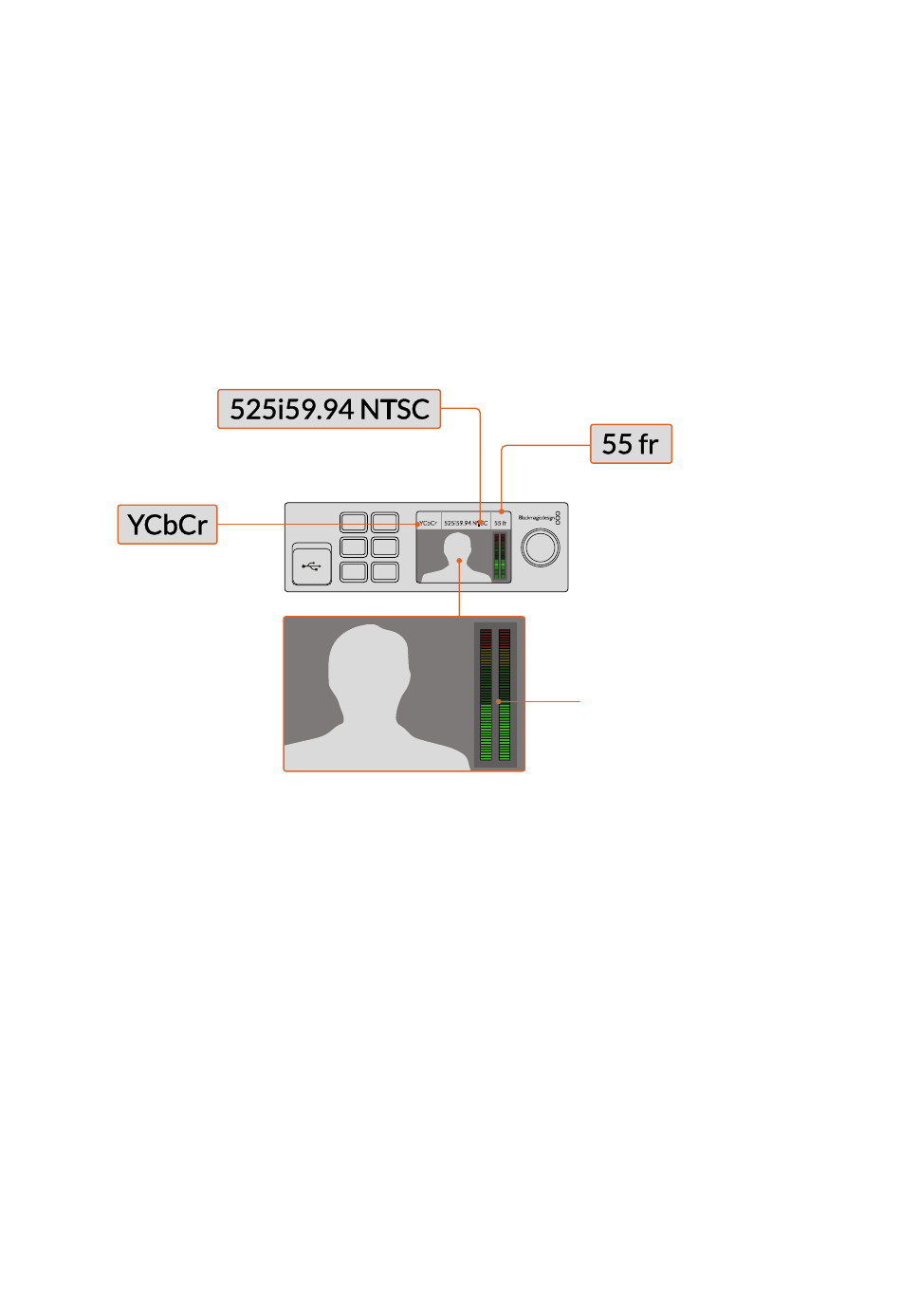

The home screen is the first feature you'll see on your Teranex Mini Smart Panel's LCD display.
The home screen shows you important information, including:
Video format – The video format
being captured or played back.
Source – The video
input source type. SDI,
YCbCr or NTSC/PAL.
Video monitor – Displays the
input video source that is connected
to UltraStudio HD Mini.
Source Video Format Buffer
1 MENU YCbCr 525i59.94 NTSC 55 fr
2 VIDEO
SET AUDIO
Buffer – The number of frames that
can be buffered on the device during
capture or the number of frames
buffered on the device during playback.
Audio meters – Displays
the audio levels of the
video source connected
to UltraStudio HD Mini.
