‚ During Playback
Some Desktop Video products are capable of converting Rec. 601 and Rec. 709 video
outputs to Rec. 2020 for TVs and video monitors that may require it. If your Desktop Video
hardware supports this feature, select 'convert to Rec. 2020' in the setup utility. If your
video is already using the Rec. 2020 color space, or is displaying correctly, you can leave
this setting set to 'keep default color gamut'.

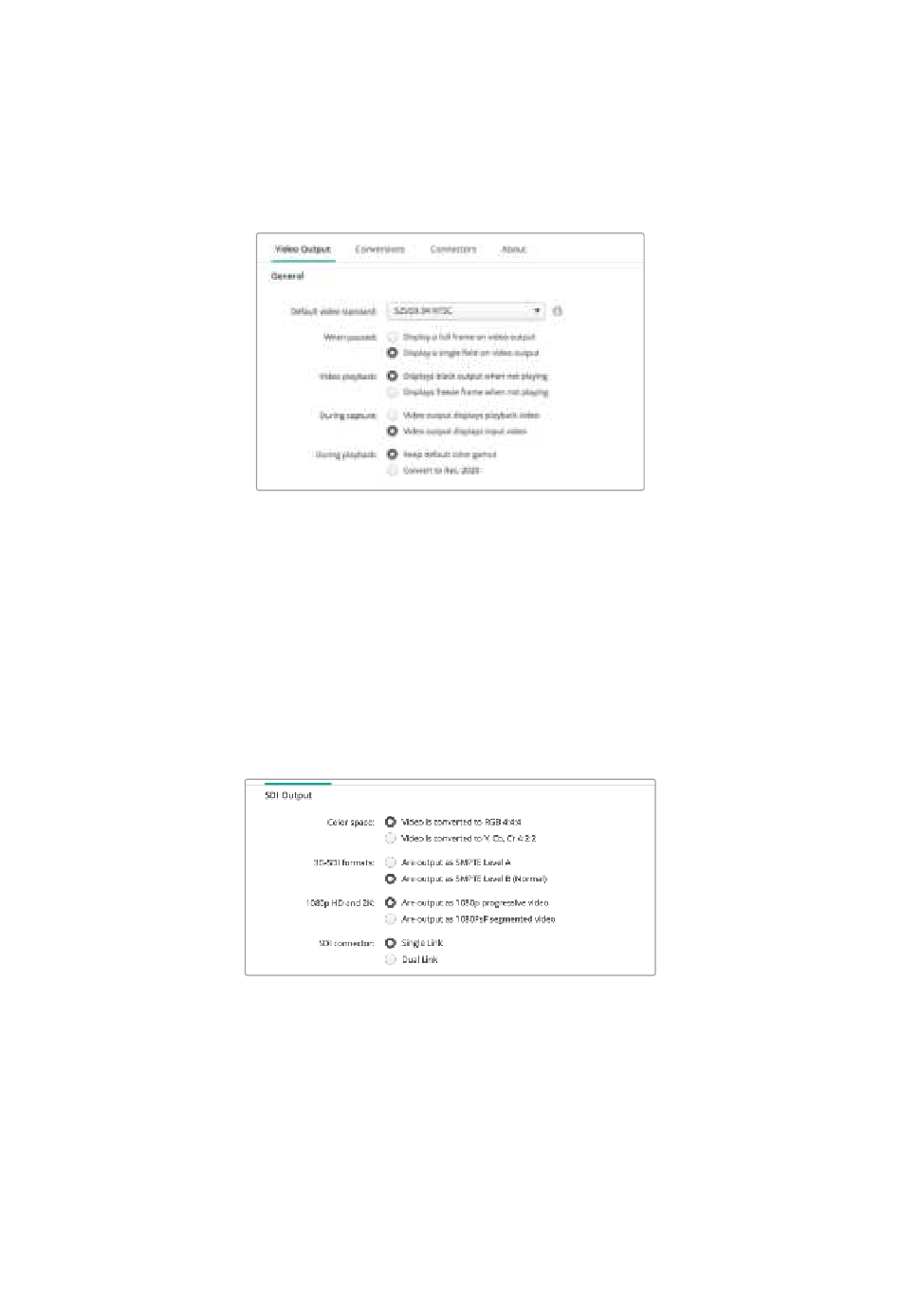

Select what to display on the output when paused,
during video playback and during capture
SDI Output
Color Space
‚
Click to select the color space to convert to. Options are 4:4:4 RGB video or Y, Cb, Cr 4:2:2.
‚ 3G-SDI Formats
Click to select whether to output 3Gb/s SDI signals as SMPTE Level A direct mapping or to
have 3Gb/s signals sent with Level B mapping.
‚ 1080p HD and 2K
Click to select whether 1080p HD and 2K are output as 1080p progressive video,
or as progressive segmented frame video.
Use the SDI Settings to control the output of your SDI video.
‚ SDI Configuration
Select between single link, dual link and quad link for 3G, 6G or 12G-SDI output. Some
professional color grading monitors and projectors only accept high bandwidth signals like
2160p60 or DCI 4K 4:4:4 via quad link. UltraStudio 4K Extreme can output quad link 3G-SDI
and you can also get a Quad SDI add on card for DeckLink 4K Extreme 12G.
