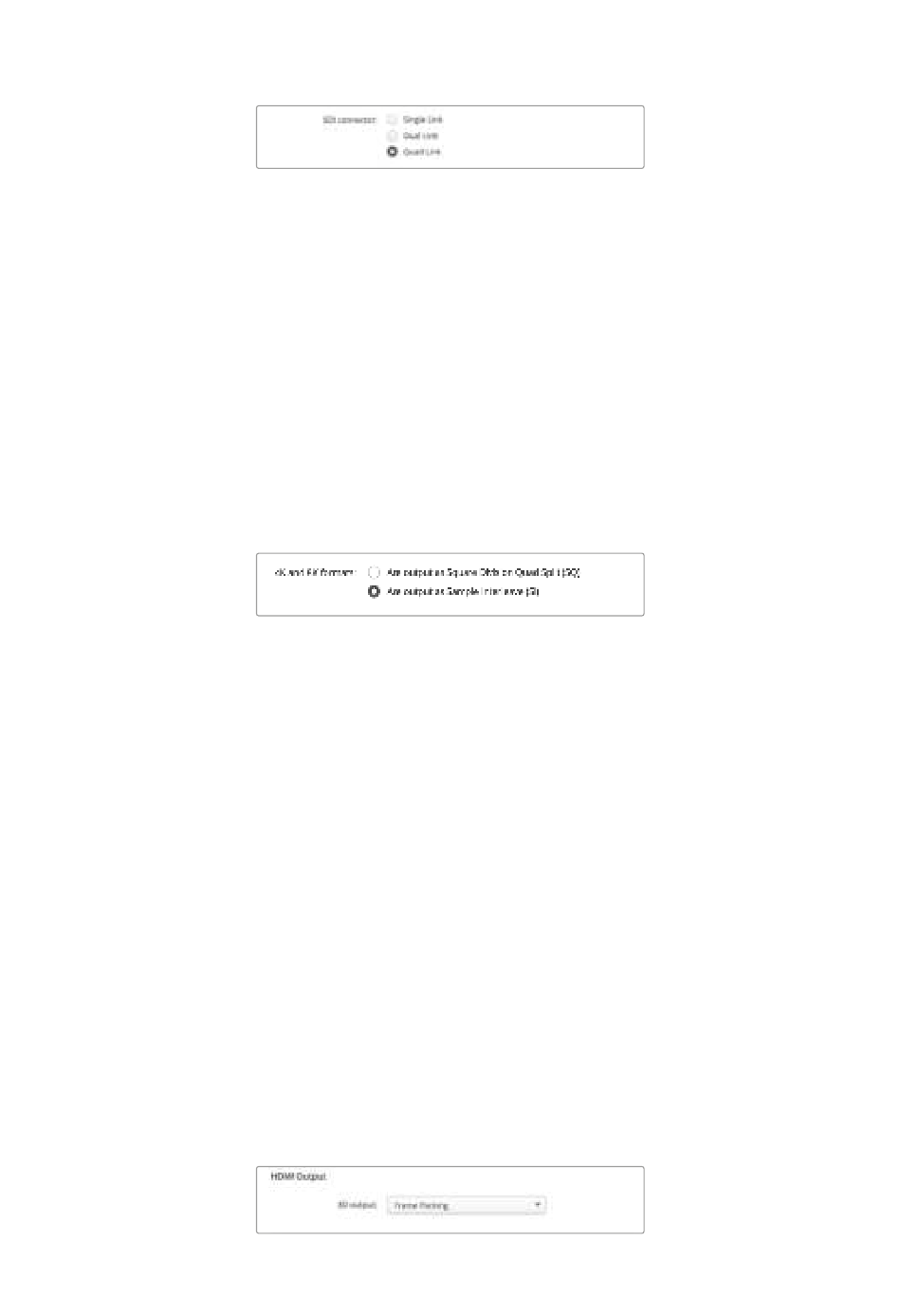

Choose whether to output via single link, dual link
or quad link for 3G, 6G and 12G-SDI video signals
8K Formats
‚
8K video is played back via quad link SDI and you can choose your desired quad link
output format.
The two options available are:
Square Division Quad Split – The 8K image is distributed as four quadrant 4K images in a
2 x 2 multi view configuration. Each 4K quadrant image is supplied via SDI using a quad link
connection and reconstructed at the destination to form a complete 8K image. This is also
the selection to use if you want to send each output to a separate display to create a video
wall of Ultra HD monitors.
Sample interleave – Alternate pixels from a single 8K image are distributed as four
separate 4K images via quad link SDI, then combined at the destination to form one
complete 8K image. Therefore, an added benefit of this format is the option to use any of
the four outputs as a down converted 4K image.
When using desktop video equipment for 8K playback,
set your desired quad link 8K output format
Set Analog Video Output
If your Blackmagic Design hardware has shared analog video connectors, you can choose
whether to output your video via 'component', 'composite' or 's-video' by selecting between the
'analog video output' options.
HDMI 3D Output
This setting determines the 3D format for your HDMI monitoring.
‚ Top and Bottom
Arranges both left and right eye images vertically with 50% compression.
‚ Frame Packing
Combines left and right eye images into a single frame without compression.
Side by Side
‚
Arranges both left and the right eye images horizontally with 50% compression.
‚ Left Eye
Only the left eye image is displayed.
Line by Line
‚
The left and right eye images are carried on alternate video lines without compression.
‚ Right Eye
Only the right eye image is displayed.
Set your HDMI 3D Output format.
