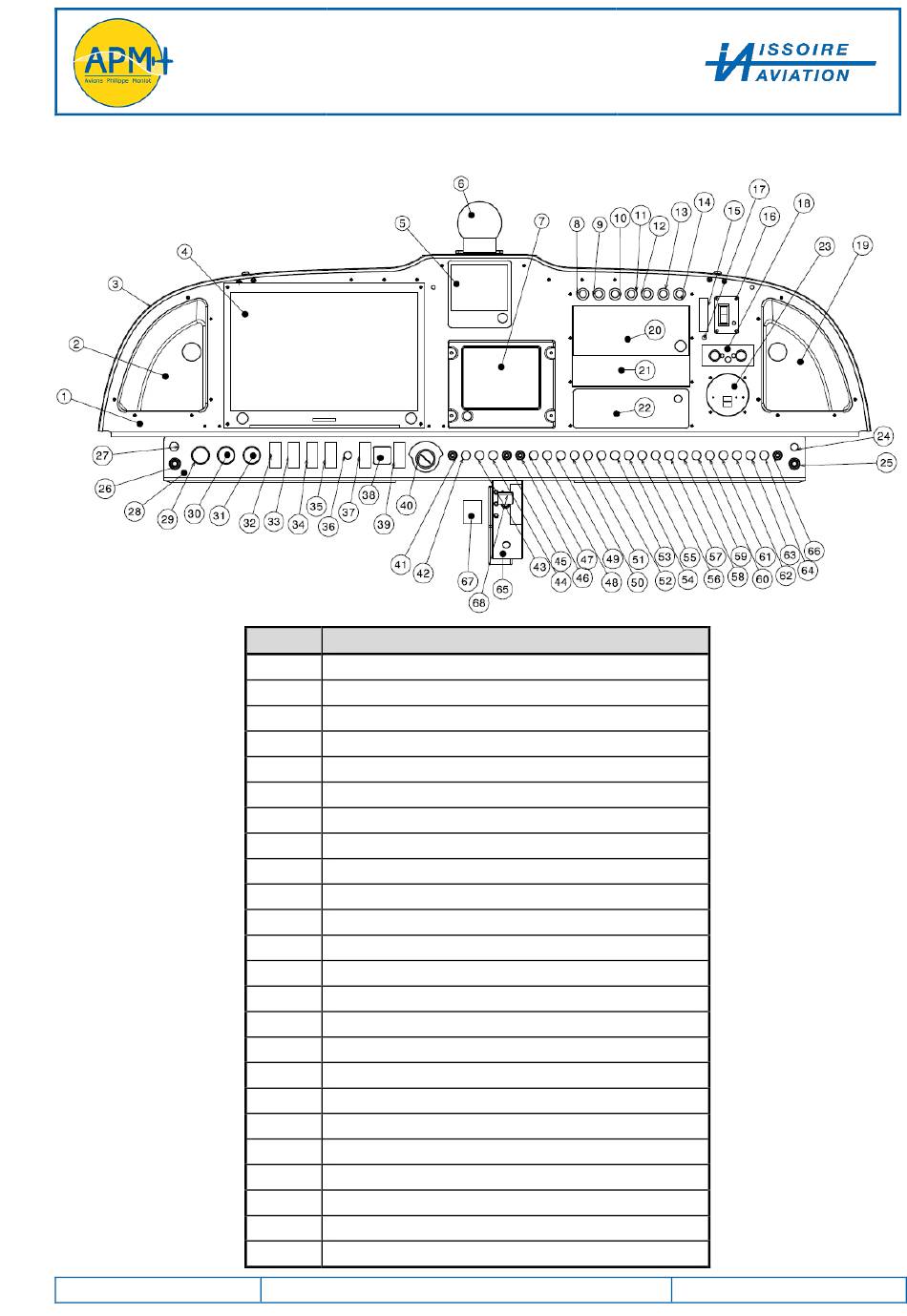

7.25.6. Panneau d'instruments

ISSOIRE AVIATION
MANUEL DE VOL
APM 41 SIMBA
Repère Désignation
1
Grand vide poche gauche
2
Tableau de bord
3
Joint tableau
4
Garmin G3X
5
Garmin G5
6
Compas magnétique
7
Afficheur EMU
8
Voyant rouge pour « EMU lane A »
9
Voyant rouge pour « EMU lane B »
10
Voyant orange pour « Trim »
11
Voyant rouge pour « Alternateur »
12
Voyant vert pour « Start power »
13
Voyant orange essence niveau bas gauche
14
Voyant orange essence niveau bas droit
15
Backup Battery Switch
16
Boitier de commande balise de détresse
17
Breaker pour Backup Battery Switch
18
Intercom
19
Grand vide poche droit
23
Montre + 2 USB
20
Radio / Nav
21
Transpondeur ADS-B
22
Pilote automatique
24
Prise Jack
Ed. 0 Rev. 0 de Juillet 2019
