ENGINE OIL LEAKAGE CHECKING/

1
a
700-006

OIL LEVEL CHECKING

ENGINE

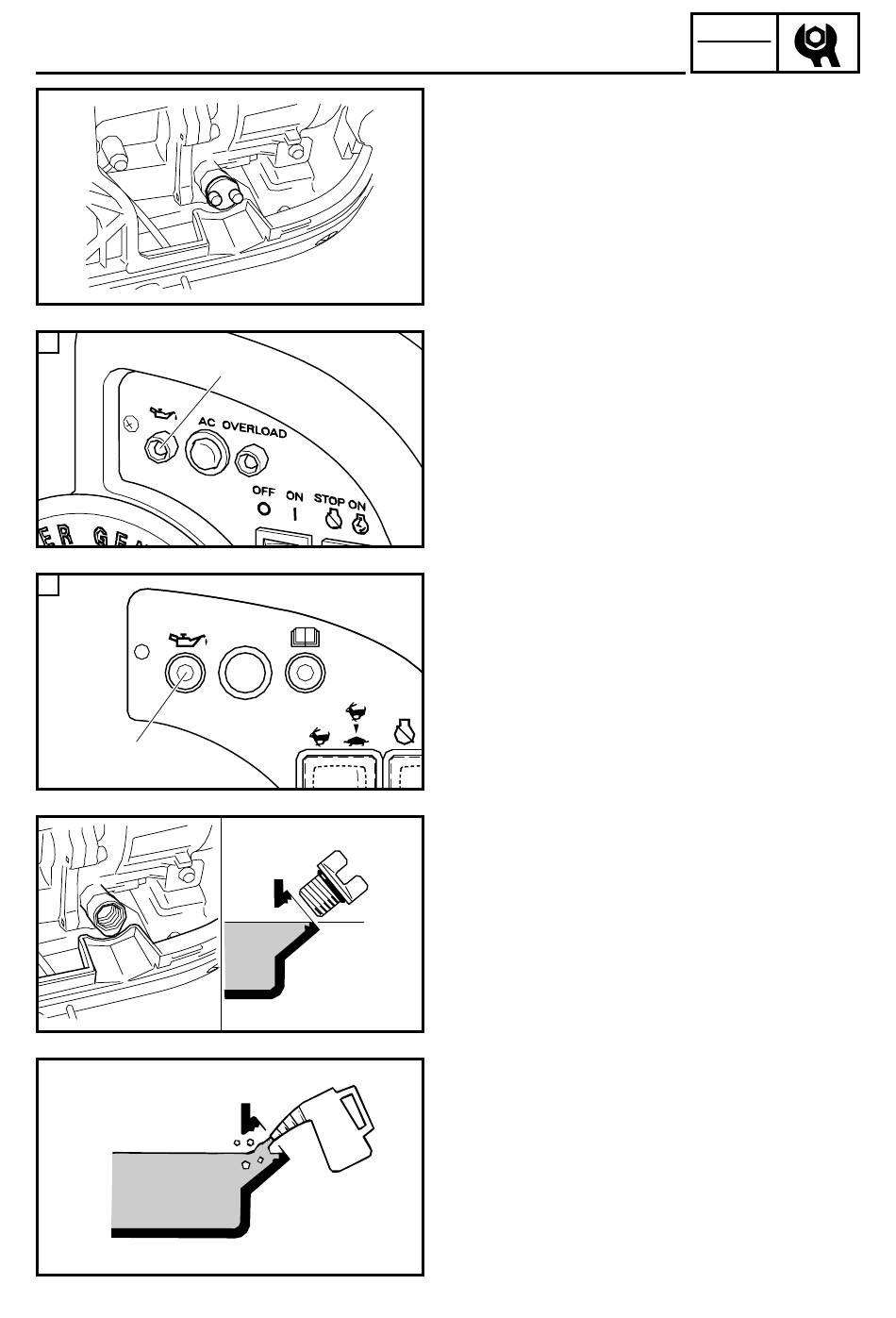

ENGINE OIL LEAKAGE CHECKING
1. Place the generator on a level surface.
2. Check the areas outside of the engine for
oil leakage.
Oil leakage → Replace the gasket, oil
seal, or O-ring.
OIL LEVEL CHECKING
1. Check:
9 Oil level with oil warning light 1
Check whether the oil warning light
(RED) flashes by operating the recoil
starter.
Oil warning light flashes → Add oil.
Oil warning light does not flash → OK
å For Canada and Australia
∫ For Europe and Korea
2. Remove:
9 Rear cover 1
Refer to "COVERS AND FUEL TANK".
9 Oil filler cap
3. Check:
9 Check that the engine oil is at the spec-
ified level a.
Oil level checking steps:
9 Place the engine on a level surface.
9 Warm up the engine for several minutes.
9 Stop the engine.
9 Check that the engine oil is at the specified
level a. Add oil if necessary.
4. Install:
9 Oil filler cap
