Terminal assignment of the terminal board

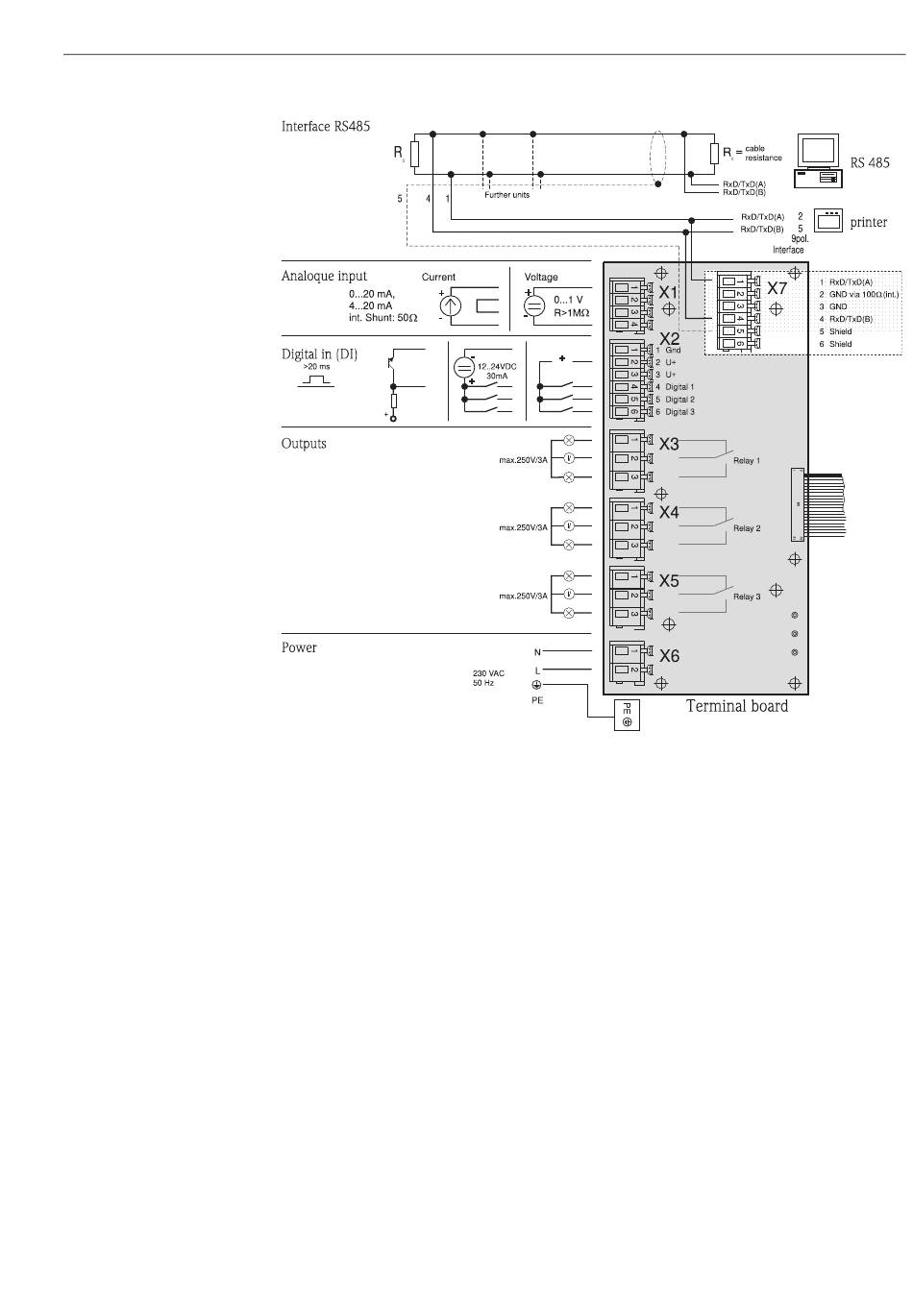

Fig. 10:
Terminal assignment of the terminal board
You can set the following signals at the terminal board:
Input signals:
• 3 digital signals >20 ms
• 1 analogue signal 0 to 1 V, 0 to 20 mA, 4 to 20 mA
Output signals:
• 3 relay outputs, max. 250 V/3 A
4 Wiring
