Replacing printer ribbon
For replacement printer ribbon, order OPEX part no. 7282620.
1. Open the printer lid. Disengage the print head by turning the release lever.
2. Remove the old ribbon from the take-up reel.
3. Install new ribbon roll, with paper core, onto the supply reel (right) and an
empty paper core onto the take-up reel (left).
4. Route the loose end of the ribbon around the print head assembly and tape
it to the empty paper core on the take-up reel.
5. Rotate the paper core a couple of times while holding the reel stationary to
take up slack.
6. Re-engage the print head.
7. Close the printer lid.
8. On the printer control panel, press the LINE button to set the printer ONLINE.
124
Take-up reel with used ribbon
wound onto empty paper core
Print head disengaged
(lever in released position)

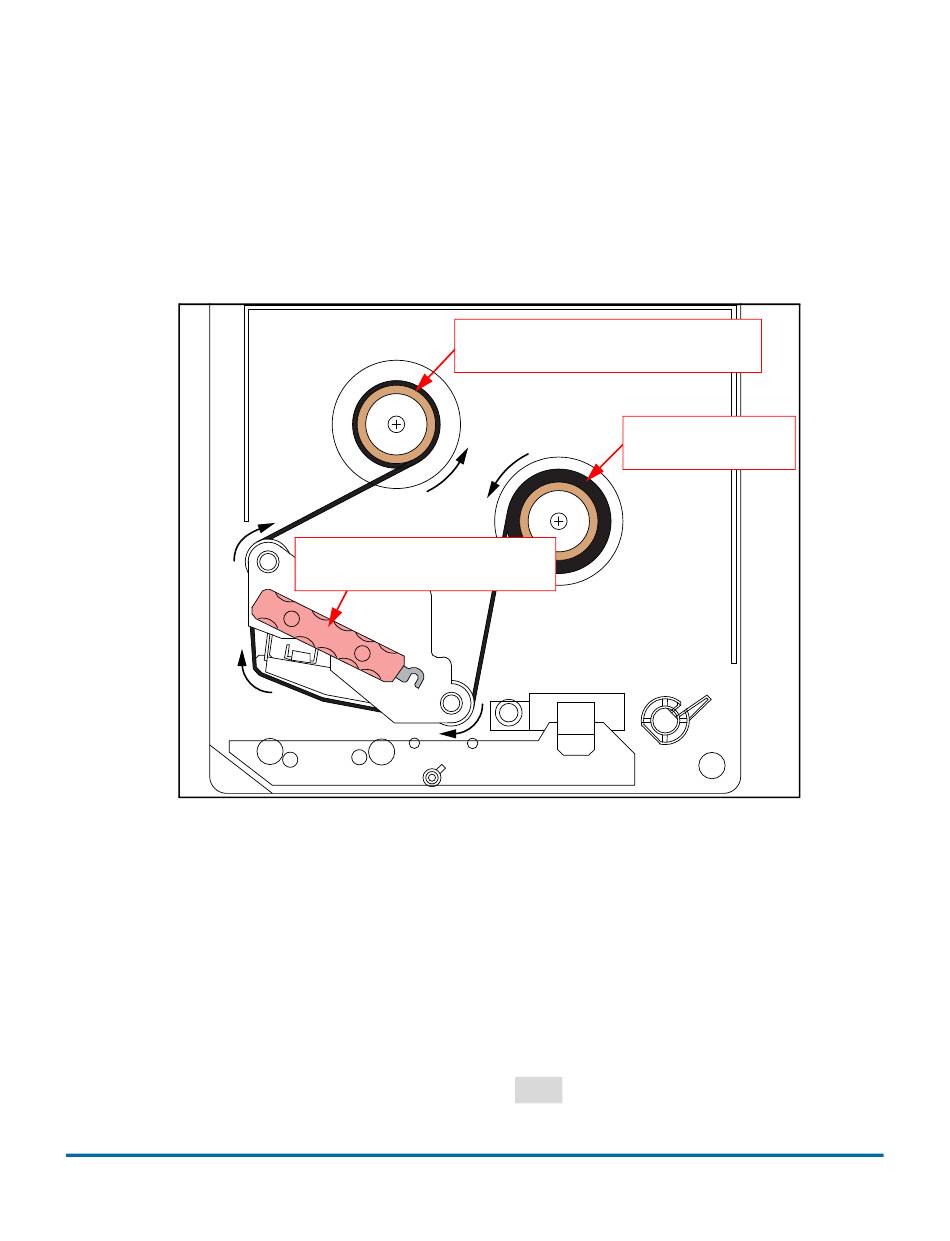

Figure 115: Ribbon installation
Mail Matrix Operator Manual
OPEX Corporation
Supply reel with
new ribbon
