13. Re-engage the print head, pressure roller plate, and label sensor.
14. Check the position of the label sensor. The label sensor detects gap
between labels and must be adjusted according to the label width in use.
Currently, the printer-labeler uses 1.5-inch-wide labels. Thus, the sensor
position indicator must be at the mark shown in the figure below. If
necessary, move the sensor indicator to the correct position by turning the
sensor adjustment knob left or right.
120

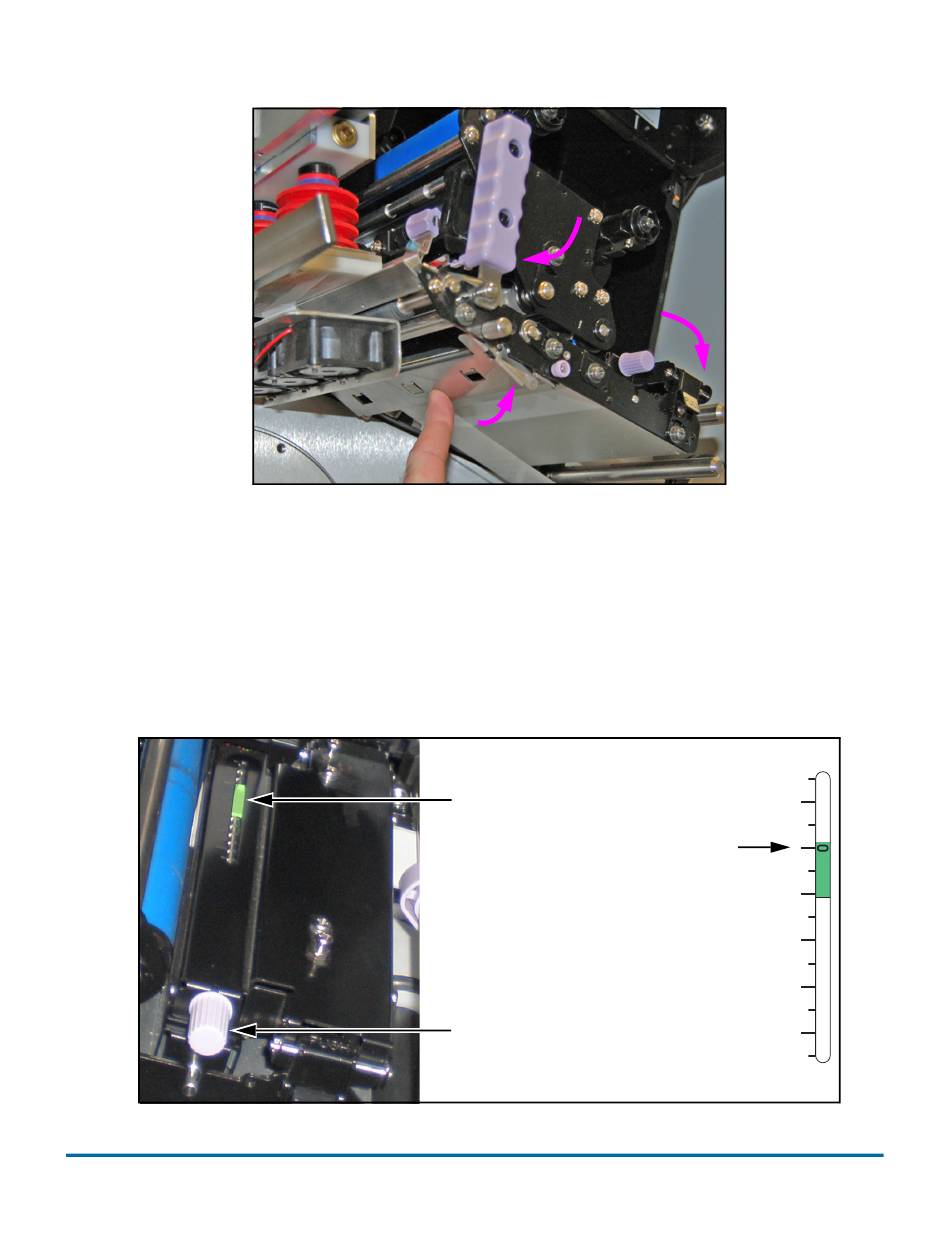

Figure 109: Re-engage components
Label sensor position indicator
Must be adjusted to this mark
for 1.5-inch-wide labels
Label sensor adjustment knob
Figure 110: Label sensor positioning
