Ecolab EcoPro Manuel D'utilisation page 166

Replacement part module: Cover - control part 'EcoPro'
10
9
11
12
13

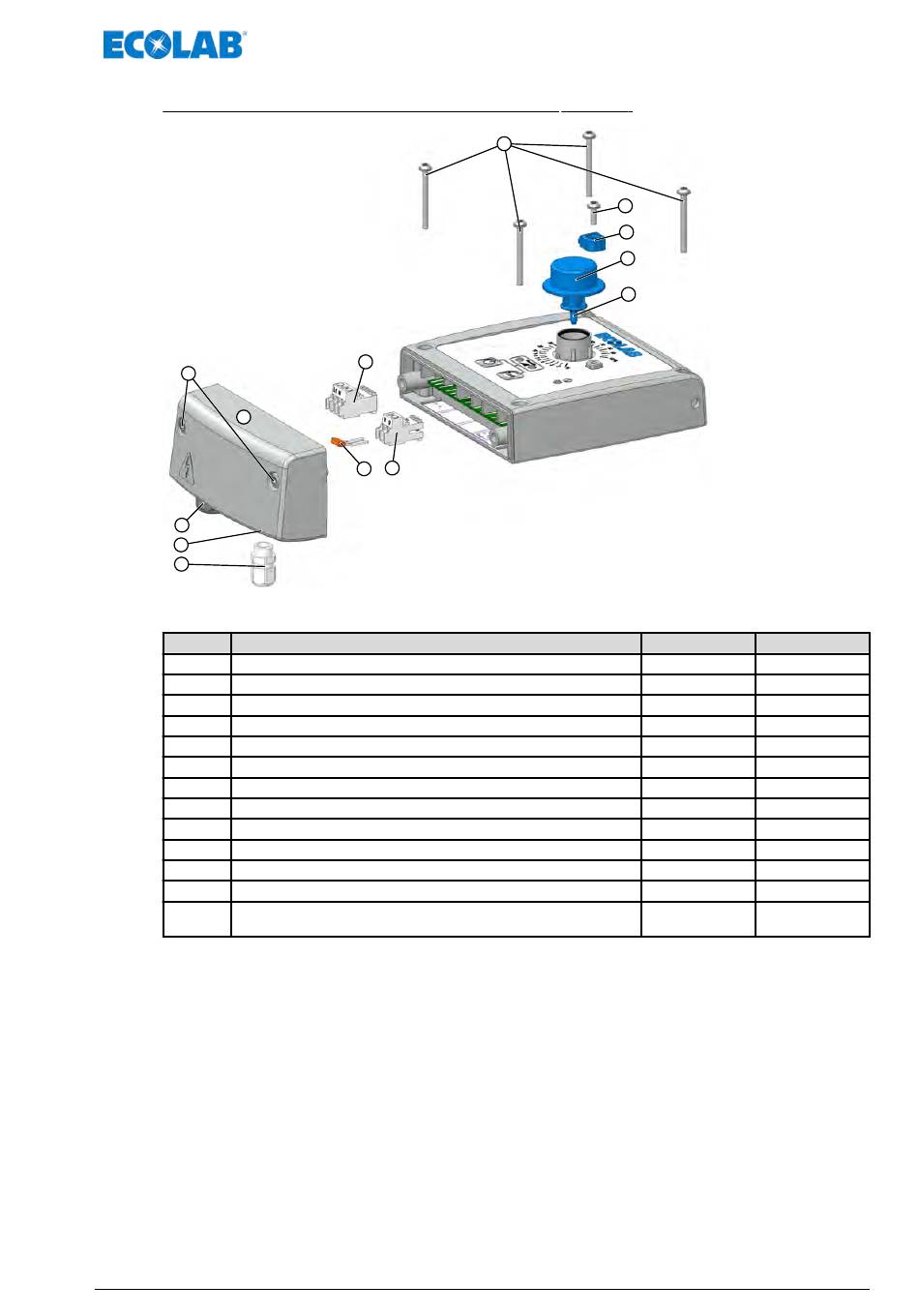

Fig. 26: Replacement part module: Display cover - control unit 'EcoPro'
Pos. Description
1 (4 x) screw, 35 x 30 WN5451 V2A
2 (1 x) screw, 35 x 10 WN5451 V2A TX
3 (1 x) clamp for rotary knob
4 (1 x) rotary knob potentiometer
5 (1 x) axis rotary knob
6 (1 x) 3-pin plug-in terminal mains connection
7 (1 x) 2-pin plug-in terminal input mains connection
8 (1 x) 2-pin bridge for coupling relay RM 5
9 (1 x) connection cover
10 (2 x) screw, 50 x 30 / 15 WN5452 V2A
11 (1 x) cable union M 16 x 1.5 PA/GR
12 (1 x) dummy plug, M12 x 1.5 HGR
13 (1 x) cable union, threaded, M 12 x 1.5 PA/GR (in accessories
pack)
1
6
7
8
69
Wearing parts and spare parts
2
3
4
5
Item No.
413070100
413070094
35200155
35200152
35200153
418461707
418461701
418461483
35200150
413070209
418441002
418441033
418441001
417102264 Rev. 6-12.2019
EBS No.
on request
on request
on request
on request
on request
on request
on request
on request
on request
on request
on request
on request
on request
