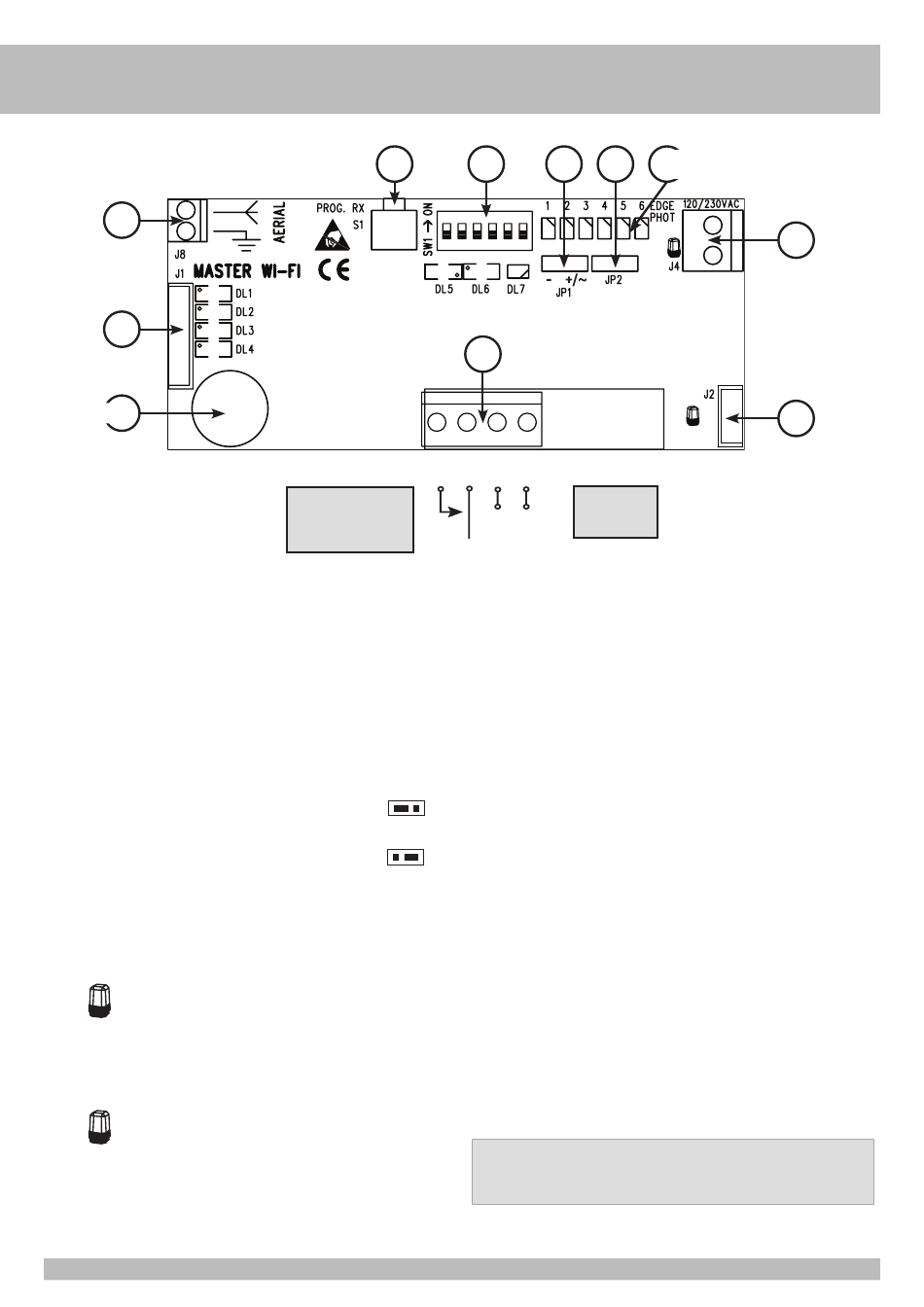

- LAYOUT
J8
J1
BUZZER
J1 =>
CONNECTOR WITH WIRES TO BE CONNECTED TO THE CONTROL PANEL
GREEN wire => EDGE 2 edge - intervenes IN OPENING.
- If JP2 is positioned on the LEFT => this output manages the edges memorized in positions
4-5-6.
- If JP2 is positioned on the RIGHT => this output is not enabled.
GREY wire => common of the COM contacts
YELLOW wire => EDGE 1 edge
- If JP2 is positioned on the LEFT => EDGE 1 manages the edges memorized in positions 1-2-3 -
intervenes IN CLOSING.
- If JP2 is positioned on the RIGHT => EDGE manages the edges memorized in positions 1 to 6 -
EDGE intervenes both in opening and closing.
BLACK wire => PHOT N.C. photocell
WHITE wire => N.O. movement command.
BROWN wire => power supply self-test A+ TEST.
JP2 => If JP2 is positioned on the Left (for control panels with 2 edge inputs):
- the EDGE 1 output manages the edges memorized with the DIPs 1-2-3
- the EDGE 2 output manages the edges memorized with the Dip 4-5-6
If JP2 is positioned on the Right (for control panels with 1 edge input):
- the EDGE 1 output manages the edges memorized with the DIPs from 1 to 6
- the EDGE 2 output is not active.
ATTENTION: after moving the JP2 jumper with MASTER Wi-Fi OS powered,
press the S1 button 7 times to make the change in the position
of the JP2 jumper operational.
J2 =>
CONNECTOR TO WHICH TO CONNECT THE POWER SUPPLY FOR THE 12/24V ac/dc
FLASHING LIGHT OF THE CONTROL PANEL (PAY ATTENTION TO THE POLARITY)
Red wire => positive (to be connected to the positive pole of the flashing light output
on the control panel)
Black wire => negative (to be connected to the negative pole of the flashing light
output on the control panel)
J4 =>
TERMINALS TO WHICH TO CONNECT THE POWER SUPPLY FOR THE 120/230V
FLASHING LIGHT OF THE CONTROL PANEL
J5 =>
TERMINAL BOARD TO CONNECT THE MOVEMENT CONTROL and TAKE THE POWER SUPPLY
FROM THE CONTROL PANEL
J8 =>
TERMINAL BOARD TO CONNECT THE 868.3 MHz ANTENNA (MANDATORY for correct
operation)
S1
SW1
J5
4 3 2 1
4 3
+
Total opening
COM
control contact
12/24V ac/dc
COM-K BUTT/START
K.BUTTON
JP1 => A+ TEST (with brown wire connected to A+ TEST on control panel)
-
+/~
SW1 => Microswitches to match and identify the edges and photocells
S1 => PROG. RX Button to program the safety devices in the MASTER Wi-Fi
BUZZER => Confirms the registration of the safety devices during programming and the
LED
DL1 (red) - edge contact (EDGE 2)
DL2 (red) - edge contact (EDGE 1)
DL3 (red) - photocell contact (PHOTO)
DL4 (red) - total opening command from button with clean N.O. contact
DL5 (green) - available for future implementations
DL6 (yellow) - presence of power supply voltage 12-24V ac/dc
EDGE PHOT LEDs (indicate the operation of the safety devices)
off => regular operation
on green => edge engaged/to be checked or photocell engaged/not aligned or photocell tx
on red fixed or flashing => flat batteries
on flashing red/green => alarm due to lack of communication
EDGE PHOT LEDs 1-2-3-4-5-6 - EDGE OR PHOTOCELL 1-2-3-4-5-6
SW1 MICRO-SWITCHES - DIP
DIP 1 ON => EDGE OR PHOTOCELL 1 ACTIVATED
DIP 2 ON => EDGE OR PHOTOCELL 2 ACTIVATED
DIP 3 ON => EDGE OR PHOTOCELL 3 ACTIVATED
DIP 4 ON => EDGE OR PHOTOCELL 4 ACTIVATED
DIP 5 ON => EDGE OR PHOTOCELL 5 ACTIVATED
DIP 6 ON => EDGE OR PHOTOCELL 6 ACTIVATED
WARNING: Every time you change the position of the microswitches,
At the end, the EDGE PHOT LEDs must all be off.
18
LED EDGE PHOT
JP1
JP2
1-6
12/24V ac/dc
2+ 1-
-
Power feed
12/24V ac/dc
AUTOTEST mode selection jumper for non-RIB control panels with negative AUTOTEST
power supply.
AUTOTEST mode selection jumper for control panels with positive/alternating autotest
power supply (such as RIB panels)
warning and alarm states during operation.
with flat batteries
press the PROG RX button 6 times to update the system.
J4
J2
