G
B
VERTIGO Wi-Fi 8
Code ACG8042
VERTIGO Wi-Fi 10
Code ACG8043
The Wi-Fi System complies with the standard EN 13849-2:2015 and together with a RIB
electronic control panel is a PL "c" Category 2 protection device.
REFERENCE STANDARDS FOR AUTOMATIC DOORS AND GATES
Make sure that MASTER Wi-Fi is connected to an electronic panel equipped with monitoring
of the correct functioning of the safety devices before carrying out the closing movement
(AUTOTEST according to EN 12453 - par. 5.1.2).
Using RIB safety devices allows for an installation compliant with the Standards and Directives
in force.
RIB cannot be held responsible for any damage caused by improper, incorrect or unreasonable
use of the product.
MASTER Wi-Fi

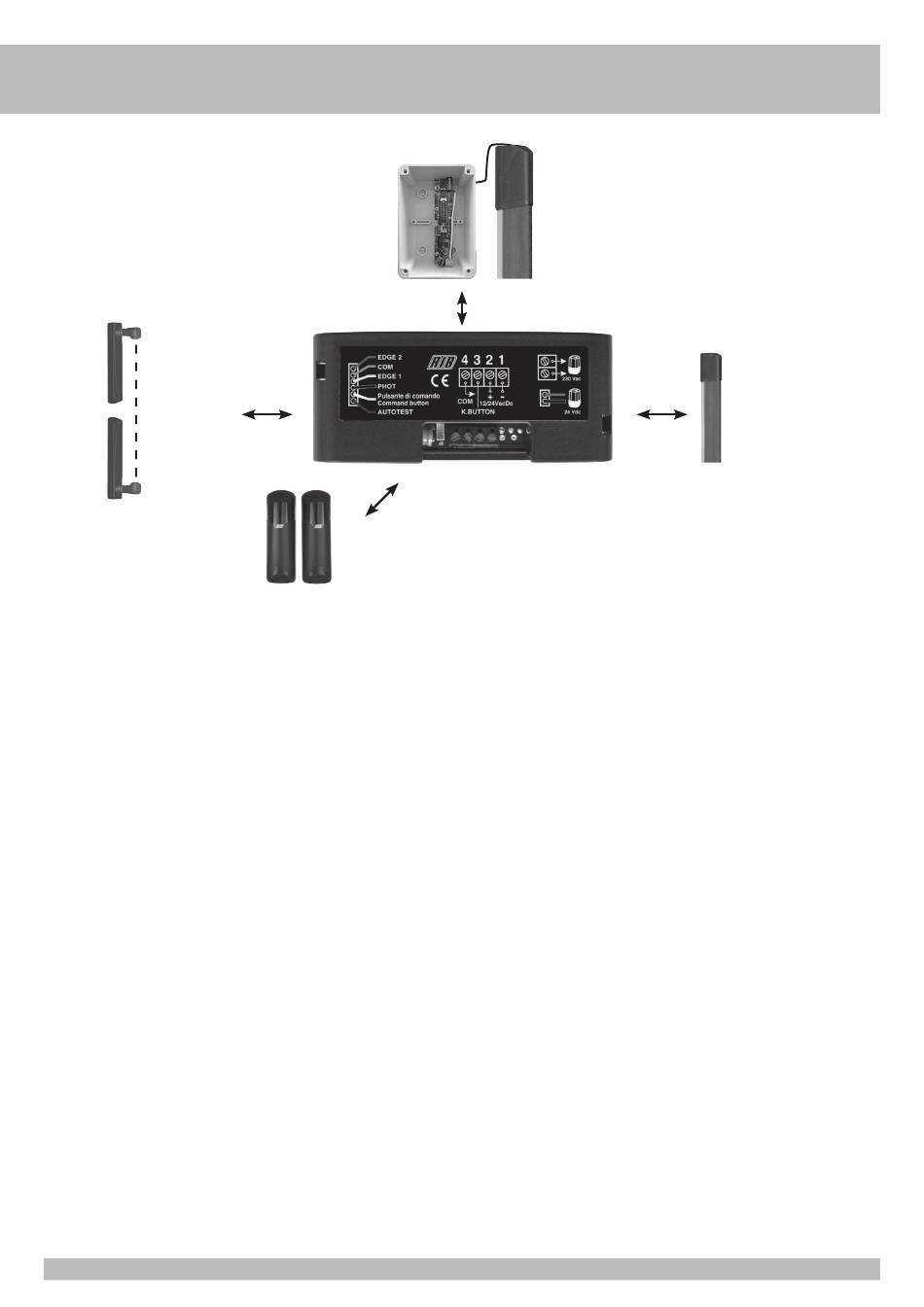

It is the heart of the system: it manages all the safety devices programmed during installation.
MASTER Wi-Fi OS manages the NOVA Wi-Fi photocells, the VERTIGO Wi-Fi, the TOUCH Wi-Fi 2.0
edges and the RED 2.0 transmitters.
The edges can also be fixed on the moving door, avoiding the use of cable collection systems.
MASTER Wi-Fi OS constantly checks the presence of safety devices and the charge status of
their batteries, providing active safety on all types of openings.
RED 2.0
Code ACG6202B
NOVA Wi-Fi
Code ACG8037
16
TOUCH
Code ACG3015
or other brands mechanical or resistive strip
SAFETY DEVICES
MASTER Wi-Fi OS can simultaneously manage up to 6
radio safety devices (NOVA Wi-Fi + VERTIGO Wi-Fi + TOUCH Wi-Fi 2.0 + RED 2.0).
- NOVA Wi-Fi photocells (code ACG8037): they have the possibility of connecting TOUCH
mechanical edges (code ACG3015) or resistive edges (NO 8K2) both on the transmitter
photocell and on the receiver photocell.
- VERTIGO Wi-Fi photocells (VERTIGO Wi-Fi 8 code ACG8042 - VERTIGO Wi-Fi 10 code ACG8043):
replacement of the mechanical or resistive edge.
- Costa TOUCH Wi-Fi 2.0 (code ACG3016B), with built-in transceiver.
- RED 2.0 (code ACG6202B): transmitter to manage mechanical (NC) or resistive (NO) edges
via radio.
COMMANDS
It is possible to connect wired controls with clean N.O. contact (key selectors, push-button
panels, etc.) to the MASTER Wi-Fi to activate the safety devices before the machine starts.
SOUND SIGNALS
MASTER Wi-Fi OS has a buzzer that signals the installation phases and the attention status in
the event of almost flat or flat batteries or the alarm status in the event of a fault in one of
the devices.
TOUCH Wi-Fi 2.0
Code ACG3016B
