A - INSTALLATION OPTIONS

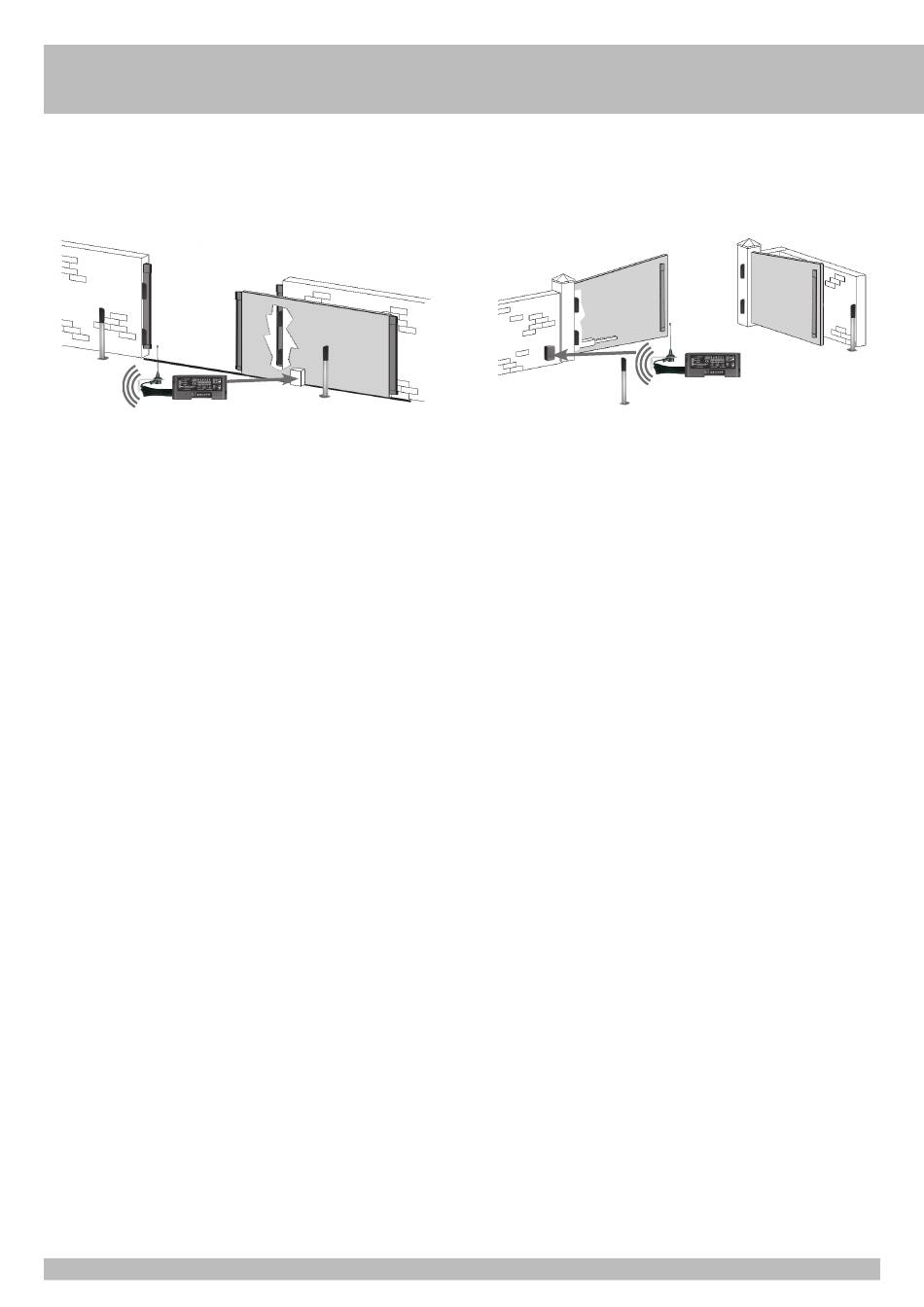

SLIDING GATE
MASTER Wi-Fi OS
B - MOUNTING PROTECTIVE DEVICES
NOVA Wi-Fi PHOTOCELLS
- Attach the NOVA Wi-Fi photocells to the poles or columns about 40÷60 cm from the ground
and at a maximum distance of 10 cm from the conveying or crushing area or immediately
after the encumbrance given by a possible edge, at a maximum distance of 20 meters from
the MASTER Wi-Fi OS.
- Install the receiver in a shaded area or in a position not exposed to horizontal sunlight.
- It is advisable to place the photocells at the same height and in line with each other.
- For the correct positioning of the photocells refer to their installation manual or to standard
EN 12453.
VERTIGO Wi-Fi PHOTOCELLS
- Attach the VERTIGO Wi-Fi photocells in the conveying or crushing area at a maximum distance
of 20 meters from MASTER Wi-Fi OS.
SWING GATE
TOUCH Wi-Fi 2.0 STRIPS
- Attach the TOUCH Wi-Fi 2.0 strips in the conveying or crushing area at a maximum distance
of 20 meters from the MASTER Wi-Fi OS.
RED 2.0
- Connect the transmitter RED 2.0 to a safety strip at a maximum distance of 20 meters from
MASTER Wi-Fi OS.
