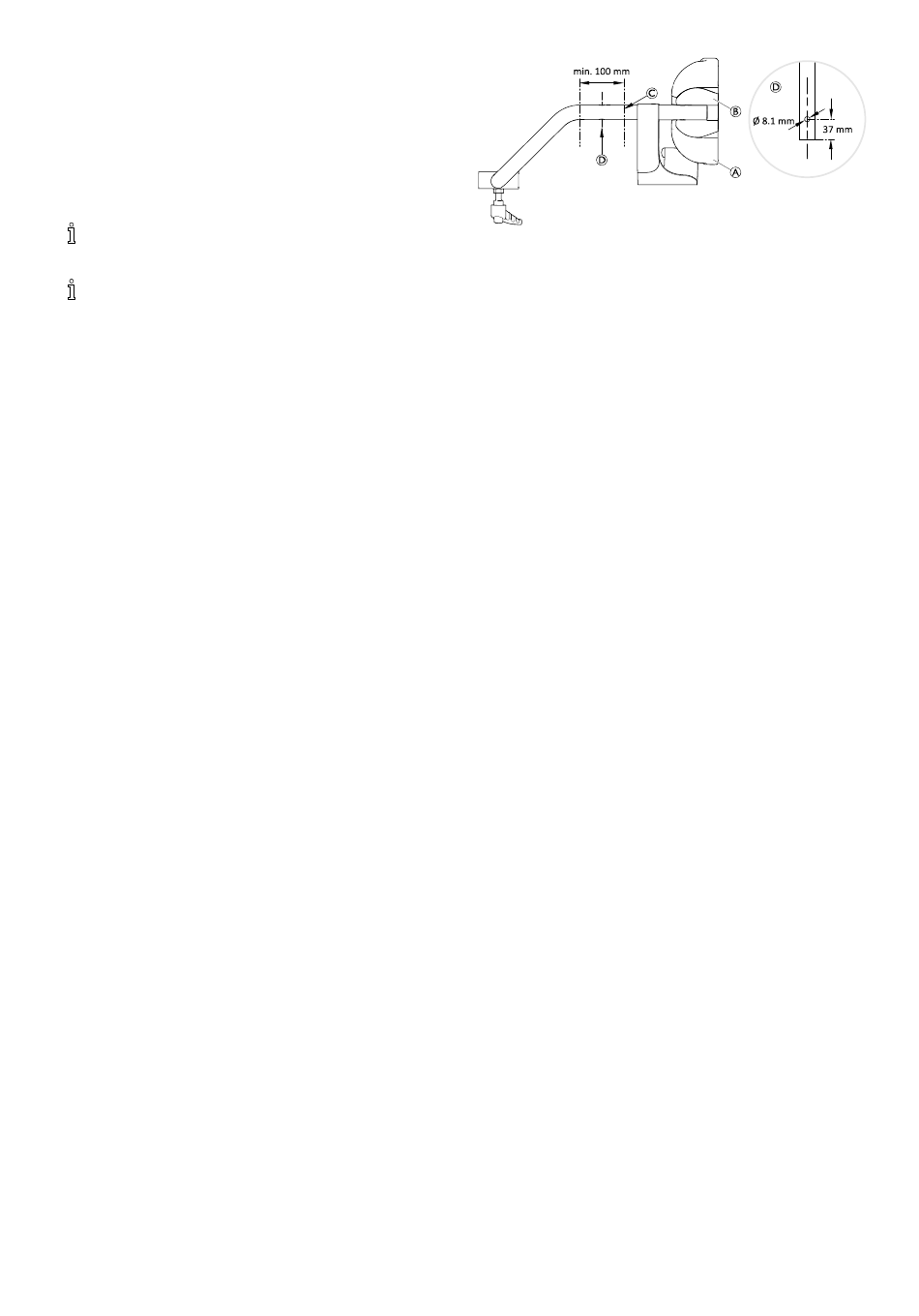

Amputation support (footrest)
1. Remove the foot plate A and the swivel joint B.
2. Cut the tube C to length (min. remaining length 100
mm).
3. Drill a Ø 8.1 mm hole D, 37 mm from the lower edge
of the tube.
4. Deburr all sharp edges.
5. Re-mount the swivel joint and the foot plate.
For removing/installing the foot plates, refer to
chapter 5.4 Replacing the foot plates, page 12.
For removing/installing the swivel joint, refer to
chapter 5.4.2 Removing/Installing the swivel joint,
page 13.
