5.7 Replacing the seat bearing fixation (Ocean VIP Ergo / Ocean Dual VIP Ergo)

Slotted screwdriver / Allen key (4 mm)
1. Remove the brake cover from the seat frame, see user
manual.

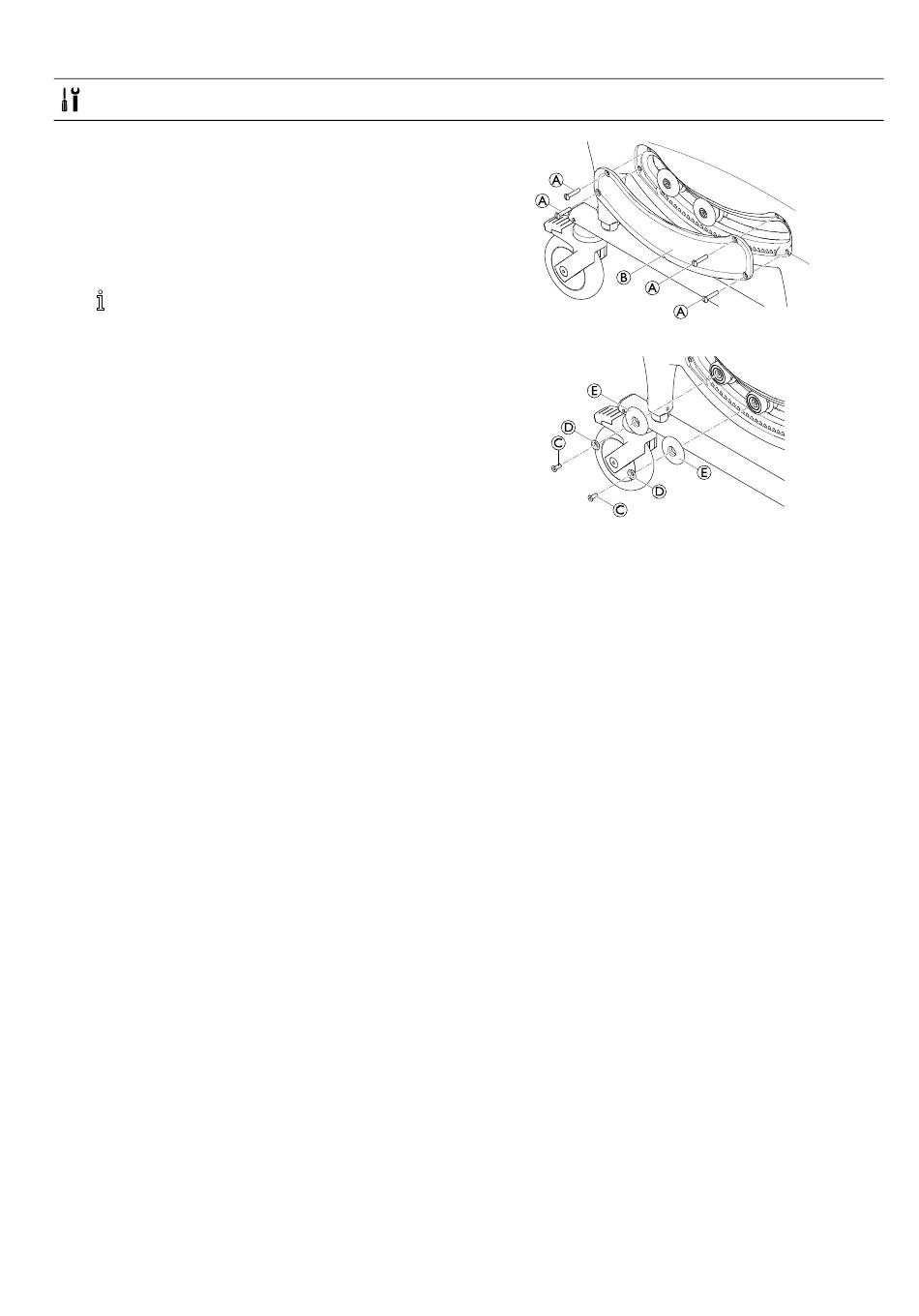

2. Remove book screw nuts A and book screws.
3. Remove the outer side part cover B.
4. Remove the inner side part covers.
5. Remove bolts C, washers D and flanged wheels E.
6. Insert new flanged wheels, washers and bolts and
tighten.
Check the outer side part cover B for damage
and replace if necessary.
7. Re-mount the outer side part cover using book screw
nut A.
8. Repeat the same steps on the other side.
A = Hand-tight
C = 6 Nm
