English
► Push the ADA 100 into the charger (5) until it
stops.
The LED (4) on the charger glows green when
the battery is charging.
The LEDs on the AR battery glow green and
show the state of charge.
When the LEDs on the battery turn off, the
charging process is complete and the charger
will shut itself off. The ADA 100 can be
removed from the charger.
► Disconnect the power supply cord from the
electrical outlet when the charger is not in use
for extended periods of time.
► Charge STIHL AR backpack batteries only
with genuine STIHL AL 301, AL 301-4 or AL
501 series chargers.

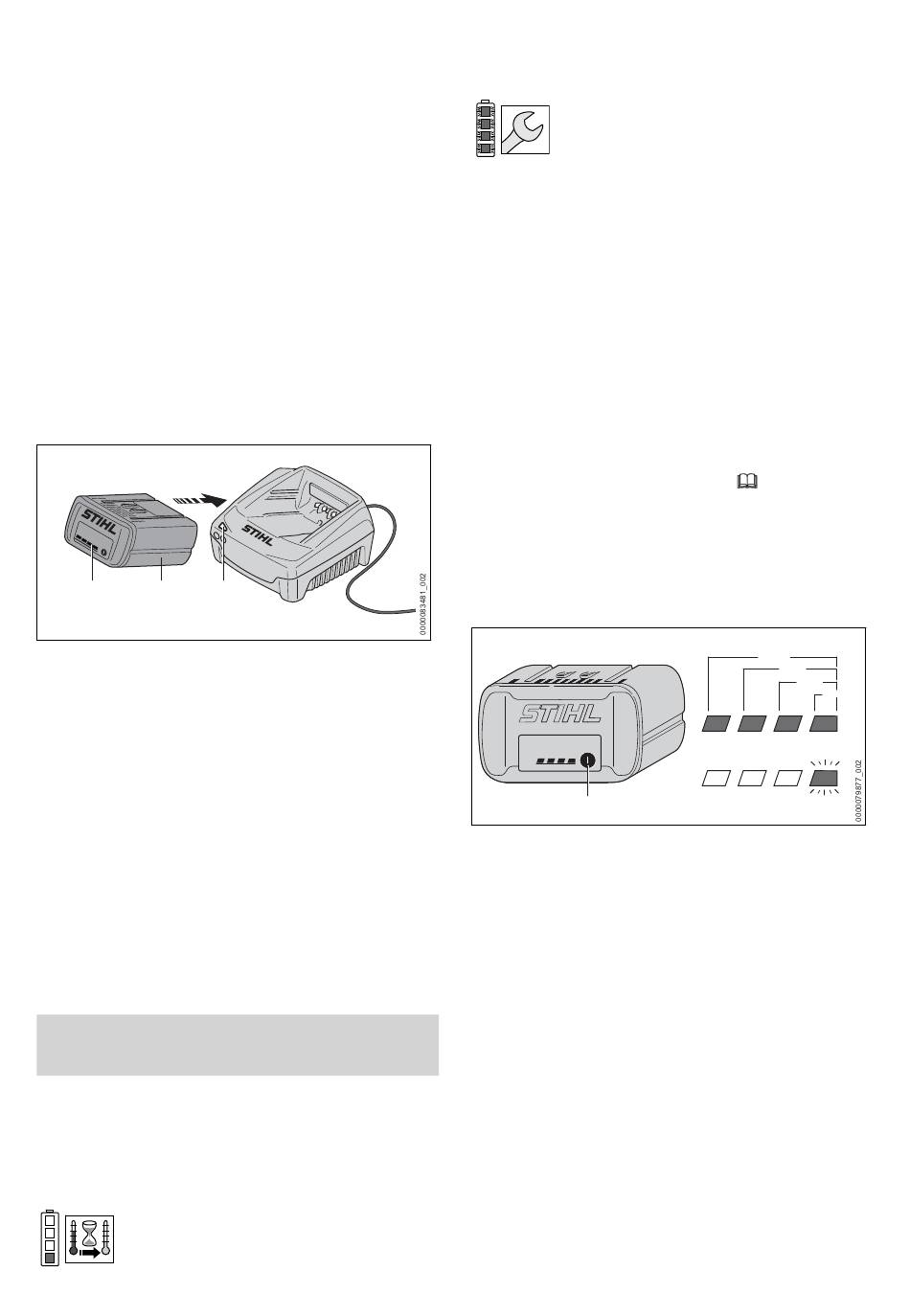

To charge an AP battery:
1 2
► Push the battery (2) into the charger (3) until it
stops.
The LED on the charger glows green when the
battery is charging.
The LEDs (1) on the AP battery glow green
and show the state of charge.
When the LEDs on the battery go out, the
charging process is complete and the charger
will shut itself off. The AP battery can be
removed from the charger.
► Disconnect the power supply cord from the
electrical outlet when the charger is not in use
for extended periods of time.
► Charge STIHL AP series batteries only with
genuine STIHL AL 101, AL 301, AL 301-4 or
AL 501 series chargers.
11 LED Diagnostics and
Acoustic Signals
11.1 STIHL AP Battery
11.1.1 Battery Status
Four LEDs show the status of the battery. These
LEDs can glow or flash green or red.
If one LED glows red continuously: the
battery is either too hot or too cold.
Allow the battery to warm up or cool
22
3
4
11 LED Diagnostics and Acoustic Signals
down gradually at an ambient tempera‐
ture of about 50 °F to 68 °F (10 °C to
20 °C).
If all 4 LEDs flash red: the battery has
a malfunction and must be replaced.
Do not attempt to charge, use or store
the battery.
11.1.2 Power Tool Status
The same LEDs on the battery will indicate the
status of the power tool.
If three LEDs glow red continuously: the power
tool motor is too hot. Allow the motor to cool
down.
If three LEDs flash red when you activate the
trigger switch: the power tool has an electrical
malfunction. Do not operate the power tool. Have
it checked by an authorized STIHL servicing
dealer before use or storage.
For troubleshooting information,
11.1.3 Charge Status
The LEDs on the battery also show the battery's
state of charge.
To determine the battery's state of charge:
1
► Press the button (1) on the battery.
The LEDs on the battery will glow or flash
green for about 5 seconds indicating the state
of charge (see illustration).
For example:
If four green LEDs glow continuously: full charge.
If one green LED is flashing: less than 20 %
charge.
11.2 STIHL AR Backpack Battery
11.2.1 Battery Status
Six LEDs and an acoustic signal indicate the sta‐
tus of the battery.
25.
80-100%
60-80%
40-60%
20-40%
0-20%
