10 Barrier Bar
The barrier bar reduces the risk of inadvertent
operator contact with the cutting attachment.
Required equipment when operating the unit
with a metal blade.
11 Drive Tube
Shaft of the power tool.
12 Opening for Stop Pin
Opening that allows the operator to block the
output shaft by inserting the stop pin.
13 Stop Pin
Blocks the output shaft when mounting a cut‐
ting attachment.
14 Gearbox
Covers the transmission system.
15 Battery
Supplies electrical power to the motor.
16 Battery LEDs
Indicate the battery's state of charge and dis‐
play error messages regarding potential mal‐
functions in the battery or power tool.
17 Push Button
Activates the battery's LEDs. Activates and
deactivates the Bluetooth® interface (if appli‐
cable).
18 "BLUETOOTH
®
" LED (only for batteries with
)
Indicates whether the Bluetooth® interface is
enabled or disabled.
# Rating Plate
Contains electrical information and the pro‐
duct's serial number.
1
For the cutting attachments that can be combined with the deflector for metal cutting attachments,
see chapter 22 - Approved Deflector, Cutting Attachment, Handle and Harness Combinations
2
For the cutting attachments that can be combined with the skirt, see chapter 22 - Approved Deflector,
Cutting Attachment, Handle and Harness Combinations
4

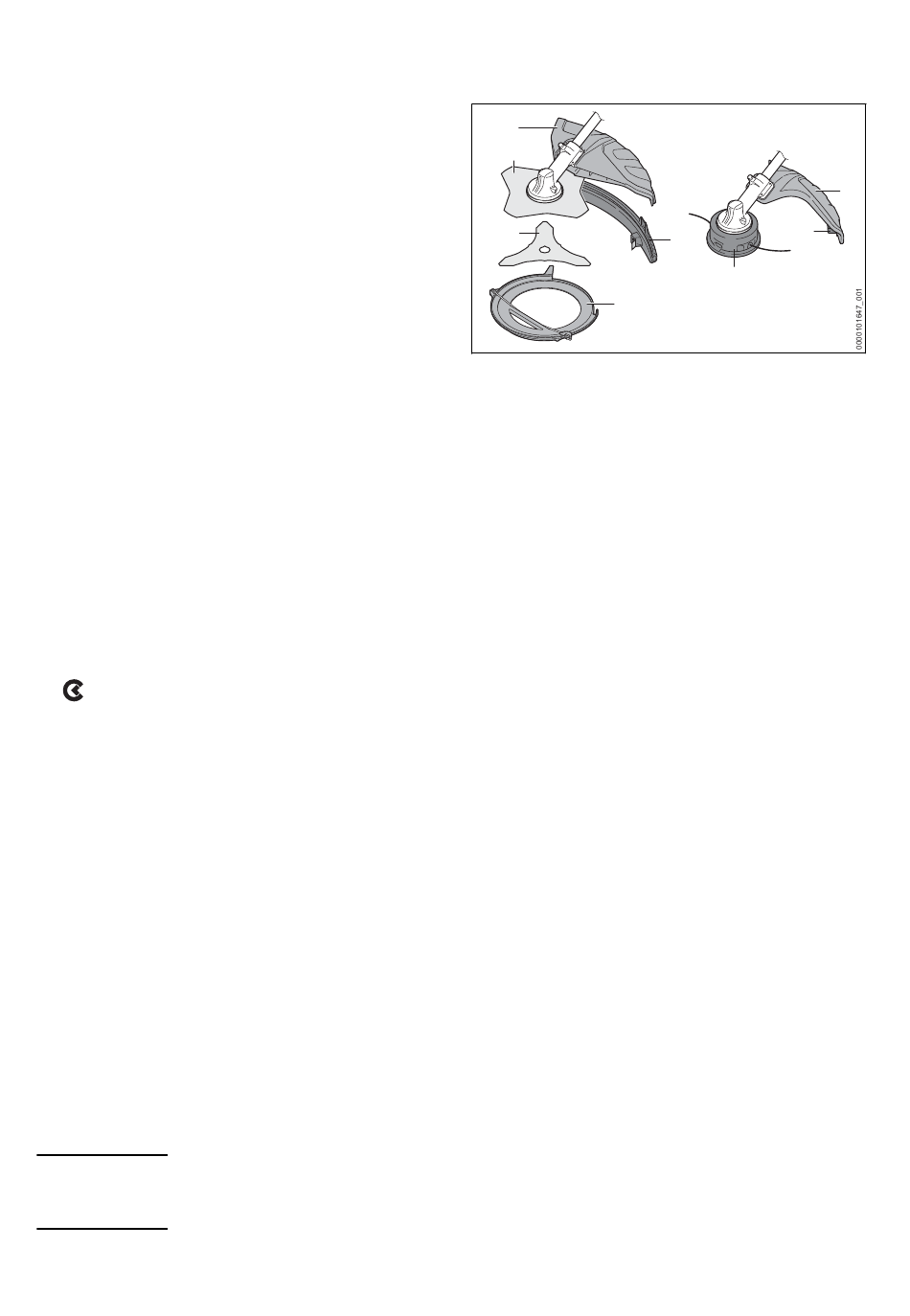

3.2 Available Cutting Attachments
and Deflectors
1
2
3
6
1 Deflector for Metal Cutting Attachments
Designed to reduce the risk of injury from
thrown objects and contact with the cutting
attachment.
2 Grass Cutting Blade
Metal grass blade to cut matted and dry
grass, ferns, weeds and similar vegetation.
3 Brush Knife
Metal brush blade to cut through heavy grass,
weeds, brush, scrub and similar vegetation.
4 Line Limiting Blade
Metal blade on the deflector that trims the
nylon mowing line to the proper length.
2
5 Skirt
Converts certain STIHL deflectors for use
with a mowing head.
6 Transport Guard
Designed to reduce the risk of injury from
contact with a metal cutting attachment while
transporting the unit.
7 Deflector for Mowing Heads
Designed to reduce the risk of injury from
thrown objects and contact with the cutting
attachment.
8 Mowing Head
Mowing head for mounting nylon trimmer line.
This power tool is sold with a cutting attachment
and appropriate deflector. Other cutting attach‐
ments and appropriate deflectors are available
as accessories.
3 Main Parts
7
4
5
8
1
