AVENTICS | SERCOS III | R412012610–BDL–001–AB
O
Configure the bus system in accordance with your system
requirements, the manufacturer's specifications, and all
valid technical standards, directives, and safety regulations.
Take the operator's documentation on configuring the bus
master into account.
The operating behavior, relevant objects and parameters to
configure the bus coupler, possible setting examples, and scope
of function are listed in chapter "Appendix Information on the
bus master configuration with SERCOS III" from page 85.
7.3

Test and diagnosis on the bus coupler

7.3.1 Reading the diagnostic display on the bus
coupler

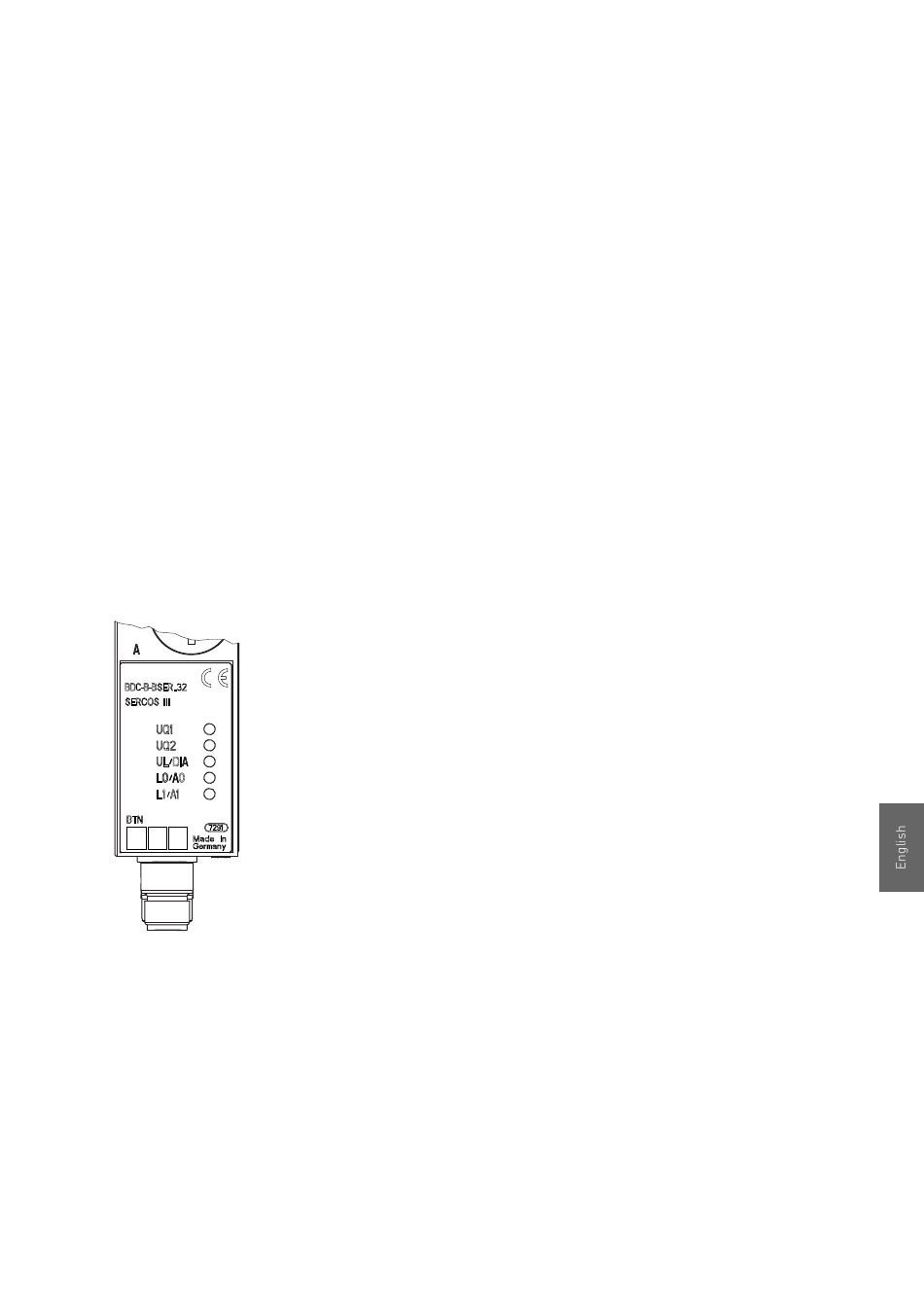

The LEDs on the front panel of the bus coupler show the
messages from Table 12.
O
Before commissioning and during operation, regularly
check bus coupler functions by reading the diagnostic
displays.
Commissioning and Operation
77
