Disassembly and Exchange

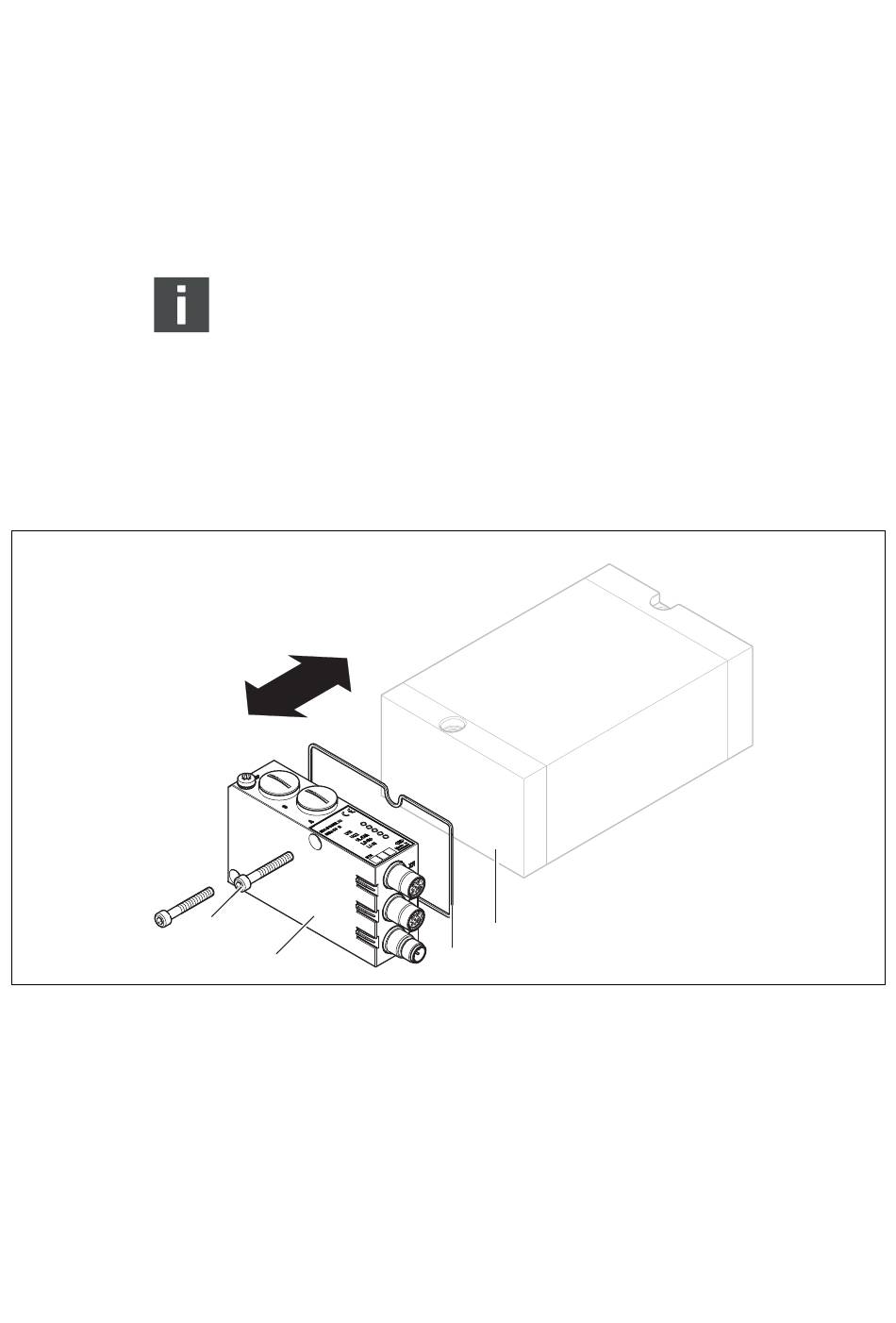

Fig. 6: Exchanging the bus coupler, example
1 M5x35 hexagon socket head screws, 3 + 0.5 Nm
2 Bus coupler
3 Seal
4 VS EP end plate
8
You can exchange the bus coupler, if needed.
The AVENTICS warranty only applies to the delivered
configuration and extensions taken into account in the
configuration. The warranty no longer applies after a
conversion that exceeds these extensions.
8.1
1
2
Disassembly and Exchange

Exchanging the bus coupler

4
3
