Personnel qualifications
The work described in this documentation requires basic electrical and pneumatic
knowledge, as well as knowledge of the appropriate technical terms. In order to
ensure safe use, these activities may therefore only be carried out by qualified
technical personnel or an instructed person under the direction and supervision
of qualified personnel.
Qualified personnel are those who can recognize possible hazards and institute
the appropriate safety measures, due to their professional training, knowledge,
and experience, as well as their understanding of the relevant regulations pertaining
to the work to be done. Qualified personnel must observe the rules relevant to the
subject area.
General safety instructions
W
Observe the regulations for accident prevention and environmental protection.
W
Observe the safety instructions and regulations of the country in which
the product is used or operated.
W
Only use AVENTICS products that are in perfect working order.
W
Follow all the instructions on the product.
W
Only use accessories and spare parts approved by the manufacturer.
W
Comply with the technical data and ambient conditions listed in these
operating instructions.
W
If there is a malfunction, do not attempt unauthorized repairs. Instead,
contact your nearest AVENTICS sales office.
W
You may only commission the product if you have determined that the end
product (such as a machine or system) in which the AVENTICS products
are installed meets the country-specific provisions, safety regulations,
and standards for the specific application.
Safety instructions related to the product
and technology
Danger of burns caused by hot surfaces!
Touching the surfaces of the AV-EP during operation could cause burns.
Temperatures can exceed 64°C on uncoated metal and 85°C on polymers.
O Let the device cool off before working on it.
O Do not touch the device during operation.
Danger of injury due to loose PUR tubing!
The push-in fittings are only suitable for PUR tubing if additional stiffener sleeves
have been inserted in the ends of the PUR tubing.
O Use only AVENTICS stiffener sleeves with the following material numbers:
8183040000 Ø 4 x 0.75
8183050000 Ø 5 x 0.9
8183060000 Ø 6 x 1
3 General Instructions on Equipment
and Product Damage
Disconnecting electrical connections while under voltage will destroy
the electronic components of the valve system!
Large differences in potential occur when disconnecting electrical connections
under voltage, which could destroy the valve system.
O Make sure the relevant system component is not under voltage before
assembling the valve system or when connecting and disconnecting
it electrically.
AV-EP systems contain components sensitive to electrostatic discharge (ESD)!
If the conductive components are touched by persons or objects, this may lead
to an electrostatic discharge that could damage or destroy the AV-EP.
O Use wrist and shoe grounding straps, if necessary, when working with
the AV-EP.
O Observe the basic rules for ESD.
Loss of the protection class IP65 if the device is opened!
Foreign objects and moisture could penetrate and damage the electronics.
O Never loosen the cap.
O Do not remove the blanking plugs or the name plate.
CAUTION
8183080000 Ø 8 x 1
8183120000 Ø 12 x 1.5
NOTICE

4 Delivery Contents

AV-EP base plates and AV-EP pressure regulators are part of a configured AV
valve system.
O For the scope of delivery of the individual AV-EP components for extensions,
please see chapter 11 „Lieferumfang bei Bestellung einzelner Komponenten".

5 About This Product

AV-EP pressure regulators and AV-EP base plates are components that can be
configured and integrated into an AV series valve system. With AV valve systems
for fieldbus connection, a subsequent extension with AV-EP pressure regulators
is also possible..
AV-EP pressure regulators and AV-EP base plates must always be used together.
The AV-EP pressure regulator is a pneumatic device with integrated electronics
that is only designed to regulate pneumatic pressures.
The electropneumatic pressure regulator controls an output pressure.
This pressure is given as an electrical set point. In doing so, a pressure sensor
integrated in the pressure regulator records the output pressure and controls
it based on the set point.
As a result, the output pressure specified by the set point is also controlled if there
are disturbance variables, such as flow changes.
Product identification
O Observe the product information on the AV-EP base plate or the AV-EP
pressure regulator.
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8

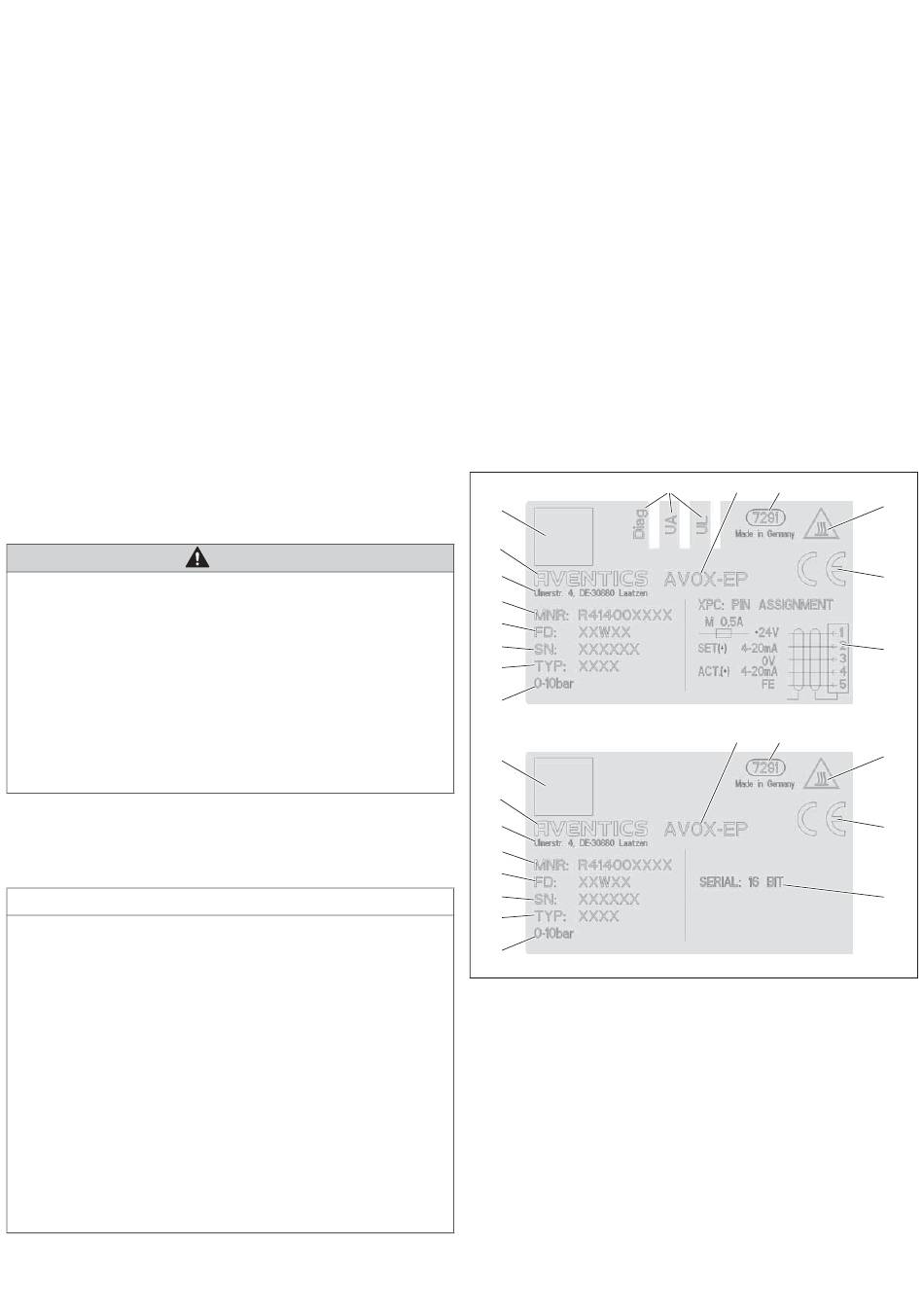

Fig. 1: AV-EP name plates for multipole connection (above), for fieldbus
connection (below), without display (above), with display (below)
1 Data matrix code
2 Manufacturer
3 Address
4 Part no.
5 Production date
6 Serial number
7 Device type
8 Output pressure range
The name plates shown for AV-EP pressure regulators are examples.
O Check the part number on the name plate to determine whether the AV-EP
pressure regulator matches your order.
O If necessary, check that the base plate matches your order using the material
number on the AV-EP base plate. The material number is located on the top of the
base plate (15). It is only visible if the pressure regulator is disassembled.
14 13 12
13 12
9 Pin assignment (M12 plug)
10 CE mark
11 Safety sign: Hot surface
12 Internal plant ID
13 Series designation
14 LED designations
15 Data length (SER)
