Instead of a scallop and 'eyebrow' bump fair-
ing can be placed just in front of the tunnel
opening.
If the connection of the thrust tunnel and the
ship's hull is to be made with a sloped side, it
should be executed in accordance with the
drawing.

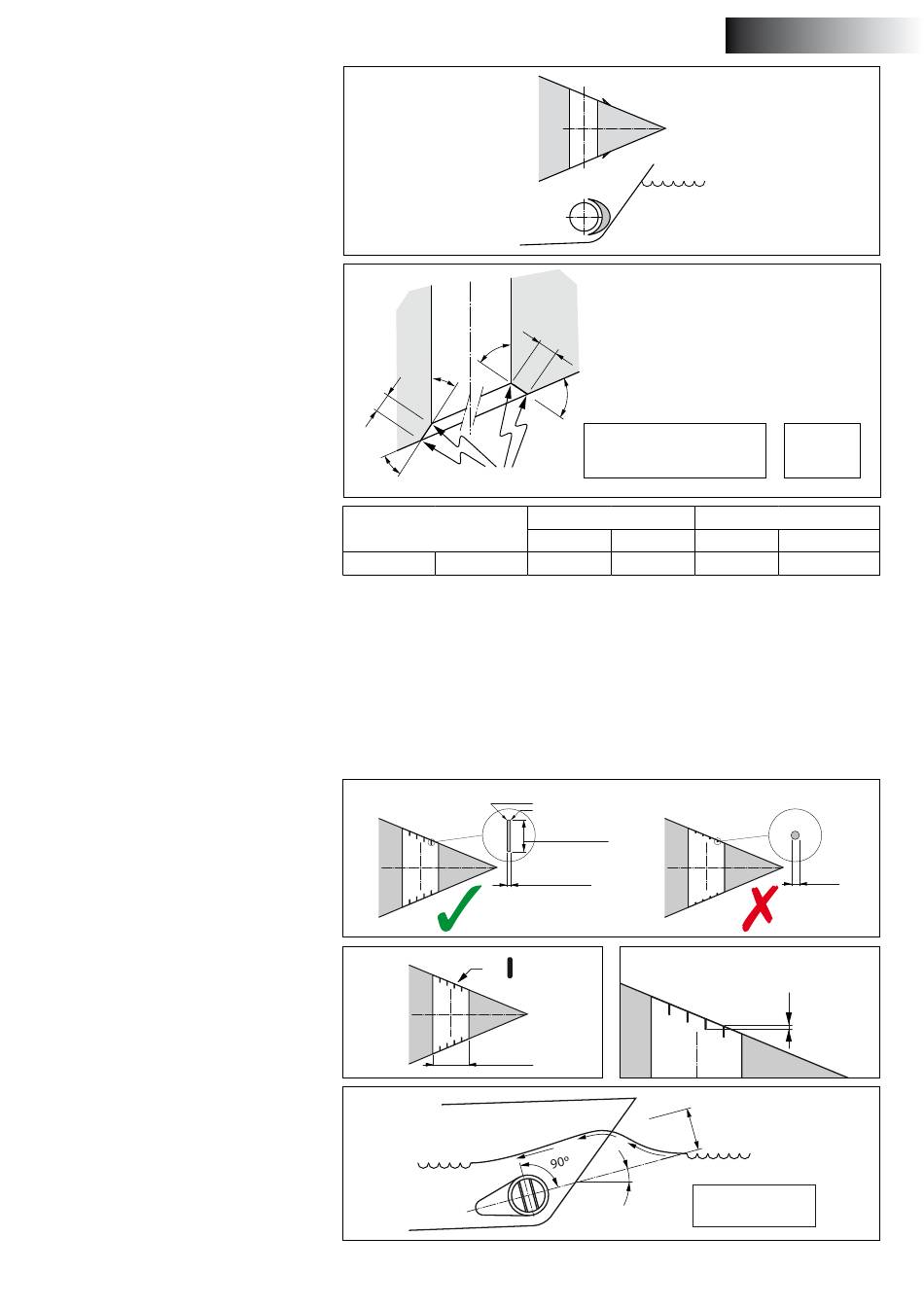

Make the sloped side (C) with a length of
0.1 to 0.15 x D and make sure that the angle
between the tunnel and the sloped side will
be identical to the angle between the sloped
side and the ship's hull.
6

Grid bars in the tunnel openings

Although the thrust force will be adversely af-
fected, grid bars may be placed into the tun-
nel openings, for protection of the thruster.
The bars must have a rectangular cross-sec-
tion.
Do not fit round bars.
Do not fit more bars per opening than is indi-
cated in the drawing.
The bars must overlap a certain amount.
The bars must be installed so that they stand
perpendicular to the expected wave form.
