OPERATING INSTRUCTIONS
3.2 Operating elements and status indicators
en
4 Mounting
24 O P E R A T I N G I N S T R U C T I O N S | W4F MultiPulse
For many products, the SICK product ID is displayed as text and QR code on the type
label and/or on the packaging.

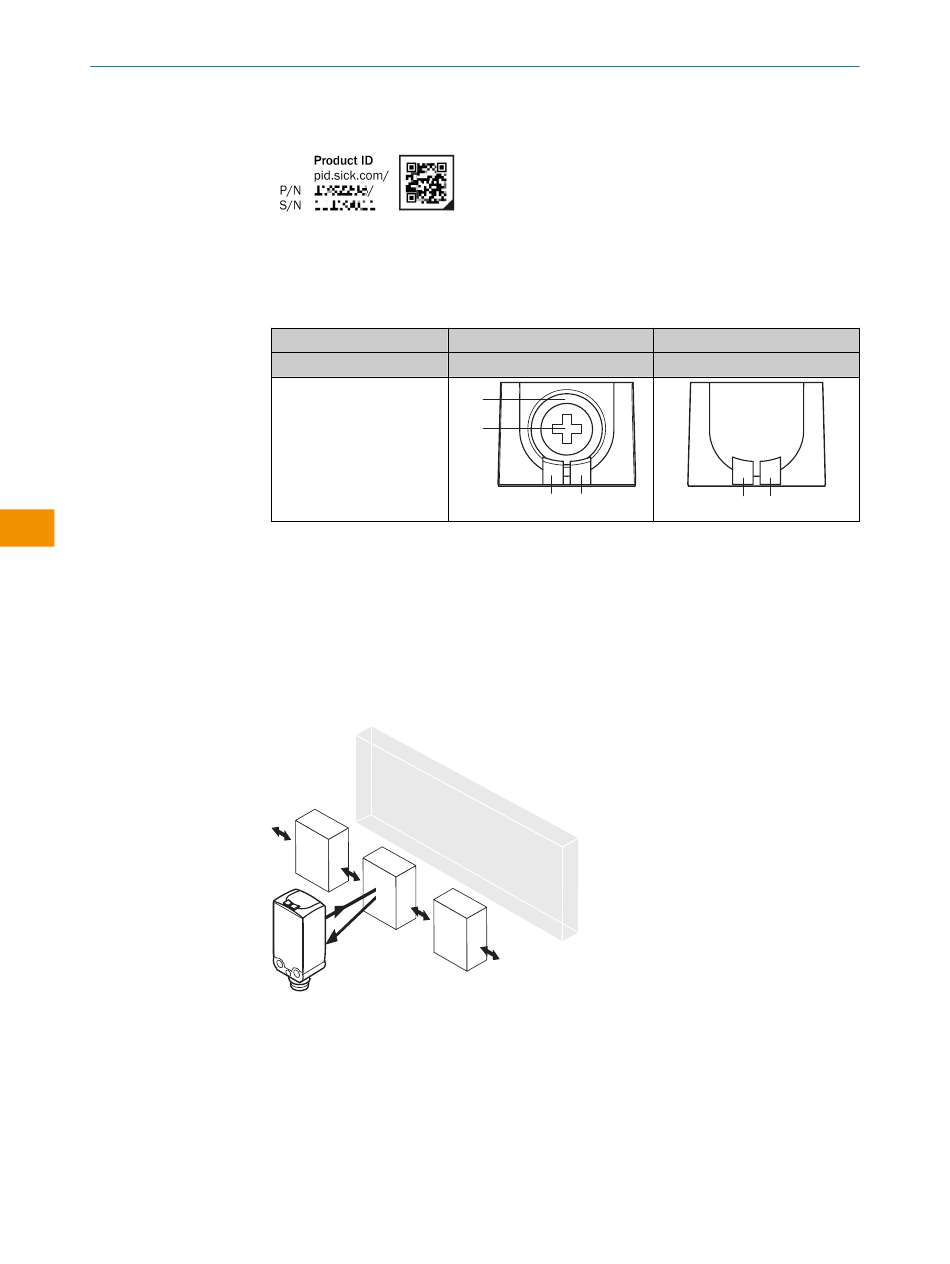

Figure 1: SICK product ID
Table 1: Operating elements and status indicators
WTB4FP-
BluePilot blue: sensing range display
1
Press-turn element / Potentiometer / Teach-Button: adjusting the sensing range
2
Yellow LED: status of received light beam
3
Green LED: supply voltage active
4
Mount the sensor using a suitable mounting bracket (see the SICK range of accesso‐
ries).
Figure 2: Alignment of the sensor relative to the object direction
Note the sensor's maximum permissible tightening torque of 0.4 Nm.
Note the preferred direction of the object relative to the sensor, cf.
page 24.
-xxxxxx20
Teach-Turn adjustment
1
2
4 3
-xxxxxxA0
Preset default
4 3
see figure 2,
