ESAB ESP-101 Manuel D'instruction page 27

SECTIoN 3

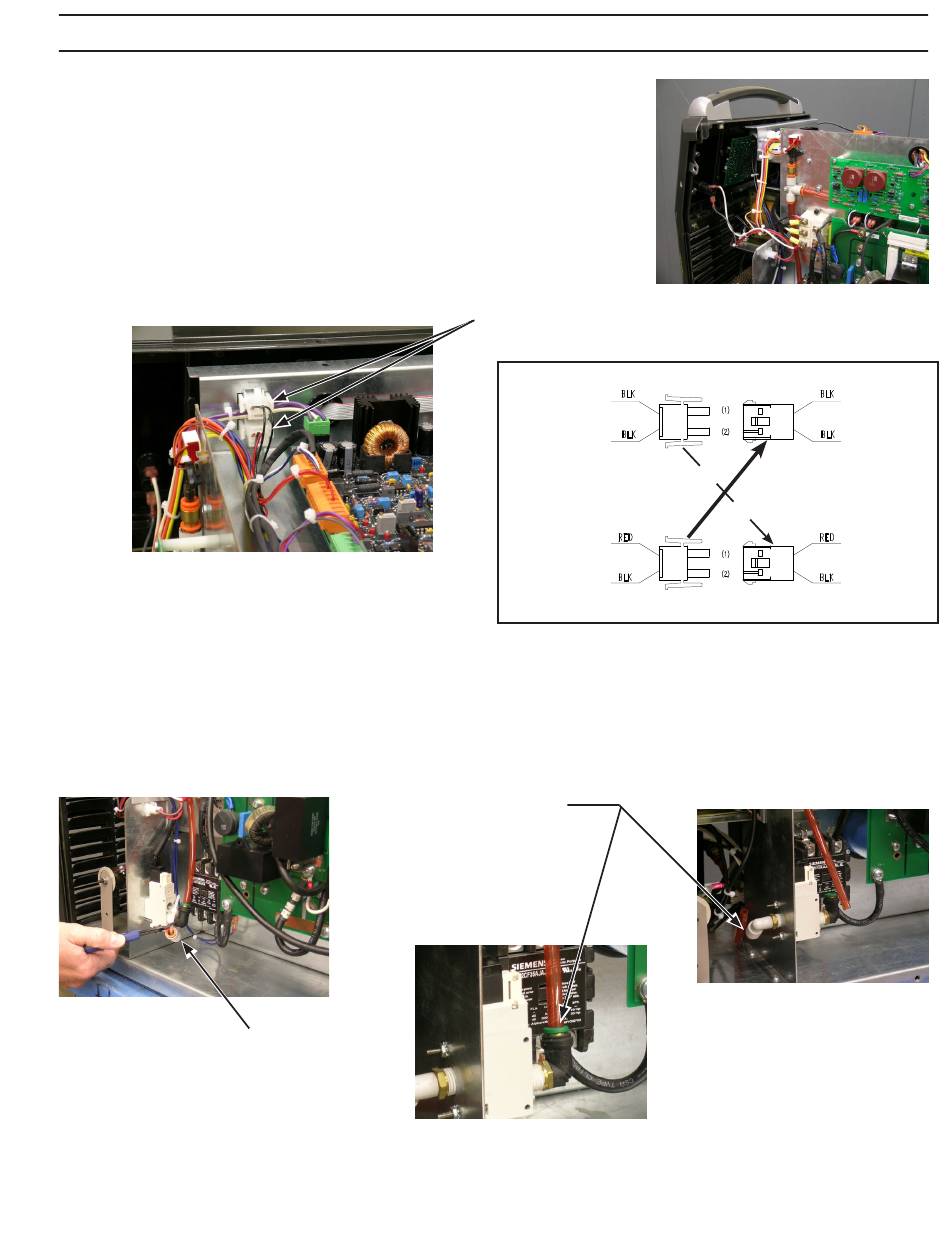

a. ESP-101 Modifications
Remove the top and right side panel of the power supply.
1. Redirection of solenoid control wiring:
a. Locate, disconnect and reverse the trigger and solenoid inter-
connect plugs as shown.
2. Air flow by-pass of internal solenoid:
a. Locate and remove the included supplied air coupling.
b. Disconnect both air hoses from the input and output of the solenoid, by pushing ring inward and
pulling hose.
(a) Supplied Air Coupling
Reverse Trigger and Solenoid
Interconnect plugs
To TRIGGER CONTROL
From SOLENOID CONTROL
figure 3-8. Interconnect reversal
(b) Pushing ring inward -
pull hose out of
connector
27
INSTallaTIoN
TRIGGER INTERCONNECT (UPPER)
From PANEL RECEPTACLE
To SOLENOID
SOLENOID INTERCONNECT (LOWER)
