Package ordering Information:

Mechanized Package ordering Information:
The components that are included in the ESP-101 mechanized packages may be purchased separately by using the ap-
propriate P/N when placing orders. Individual part numbers are listed below:
available Packages:
ESP-101:
460 V CNC PT-37 with rack 25 ft (7.6 m) ............................................................................................................................................... 0558009450
460 V CNC PT-37 with rack 50 ft (15.2 m) ............................................................................................................................................ 0558009451
460 V CNC PT-37 w/o rack 25 ft (7.6 m) ................................................................................................................................................ 0558009452
460 V CNC PT-37 w/o rack 50 ft (15.2 m) ............................................................................................................................................. 0558009453
380-400 V CE CNC PT-37 with rack 25 ft (7.6 m) ................................................................................................................................ 0558009458
380-400 V CE CNC PT-37 with rack 50 ft (15.2 m) ............................................................................................................................. 0558009459
380-400 V CE CNC PT-37 w/o rack 17 ft (5.2 m) ................................................................................................................................. 0558009460
380-400 V CE CNC PT-37 w/o rack 25 ft (7.6 m) ................................................................................................................................. 0558009461
380-400 V CE CNC PT-37 w/o rack 50 ft (15.2 m) .............................................................................................................................. 0558009462
ESP-101 Multi-Voltage:
The ESP-101 multi-voltage console ships as a ESP-101 460 V console and a separate Tua2 auto-Transformer.
208-575 V CNC PT-37 with rack 25 ft (7.6 m) ...................................................................................................................................... 0558009454
208-575 V CNC PT-37 with rack 50 ft (15.2 m) ................................................................................................................................... 0558009455
208-575 V CNC PT-37 w/o rack 25 ft (7.6 m) ....................................................................................................................................... 0558009456
208-575 V CNC PT-37 w/o rack 50 ft (15.2 m) .................................................................................................................................... 0558009457
ESP-101 Consoles:
460 V Console................................................................................................................................................................................................... 0558004880
380-400 V CE Console ................................................................................................................................................................................... 0558005215
Multi-Voltage Consoles:
The ESP-101 multi-voltage console ships as a ESP-101 460 V console and a separate Tua2 auto-Transformer.
208, 230, 400, 460, 475, 500, 575 V ........................................................................................................................................................... 0558004881
WarNINg
2.5

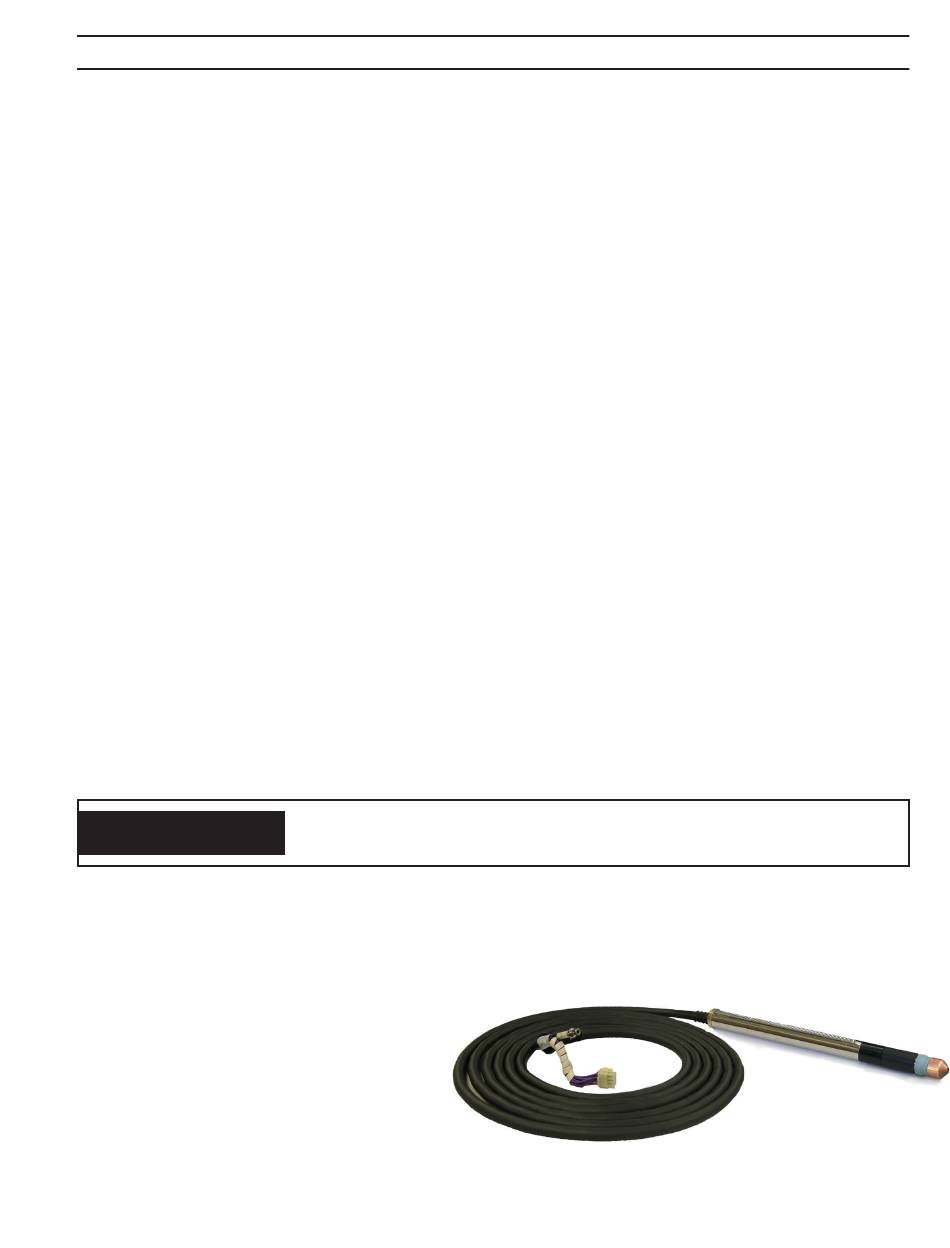

PT-37 Torch Data

ESP-101 mechanized console uses the PT-37 torch. For cut data information, breakdown of parts, dimensions and maintenance refer to
torch manual.
PT-37 Torches:
PT-37 Torch with rack 4.5' (1.4m)...........................0558004860
PT-37 Torch with rack 17' (5.2m)............................0558004861
PT-37 Torch with rack 25' (7.6m)............................0558004862
PT-37 Torch with rack 50' (15.2m) .........................0558004863
PT-37 Torch w/o rack 4.5' (1.4m) ............................0558004894
PT-37 Torch w/o rack 17' (5.2m) ............................0558004895
PT-37 Torch w/o rack 25' (7.6m) ............................0558004896
PT-37 Torch w/o rack 50' (15.2m) .........................0558004897
Do NoT uSE oxYgEN WITh ThIS TorCh! a haZarDouS fIrE MaY
rESulT.
