c. Re-route the Input Air Hose over to the output side.
d. Couple the free ends of the gas tubes together using the provided union.
e. Secure the tubing to prevent contact with pilot arc resistor.
f. Replace the top and right side panel of the power supply.
B. Mounting the remote Junction Box (rJB)
1. With the cover removed from the Remote Junction Box, mount the base to a rigid location on the cut-
ting machine, robot, or other suitable object, using at least 2 of the provided mounting holes. Orient
the box such that the Extension Cable will enter the end of the RJB not marked for torch connection.

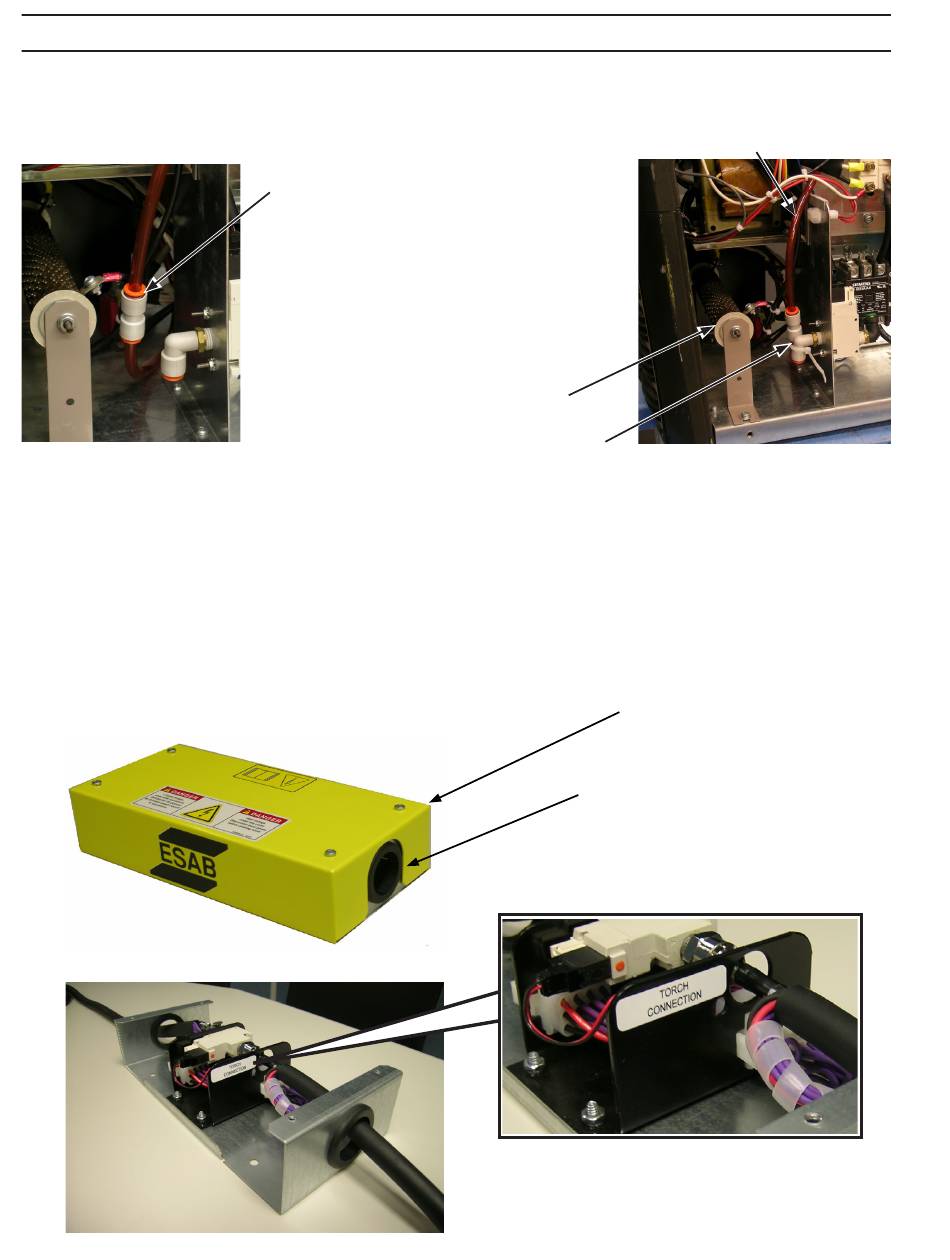

(d) Couple the free ends of the gas
tubes together
Important Note:
Ensure tubing is securely
fastened at least 1 inch
away from pilot arc resistor.
Pilot Arc Resistor
28
(e) Secure the tubing
Remote Junction Box
Torch and Extension Cable Openings
(typical at each end of
Remote Junction Box)
INSTallaTIoN
(c) Re-route Input Air Hose
