SECTIoN 2

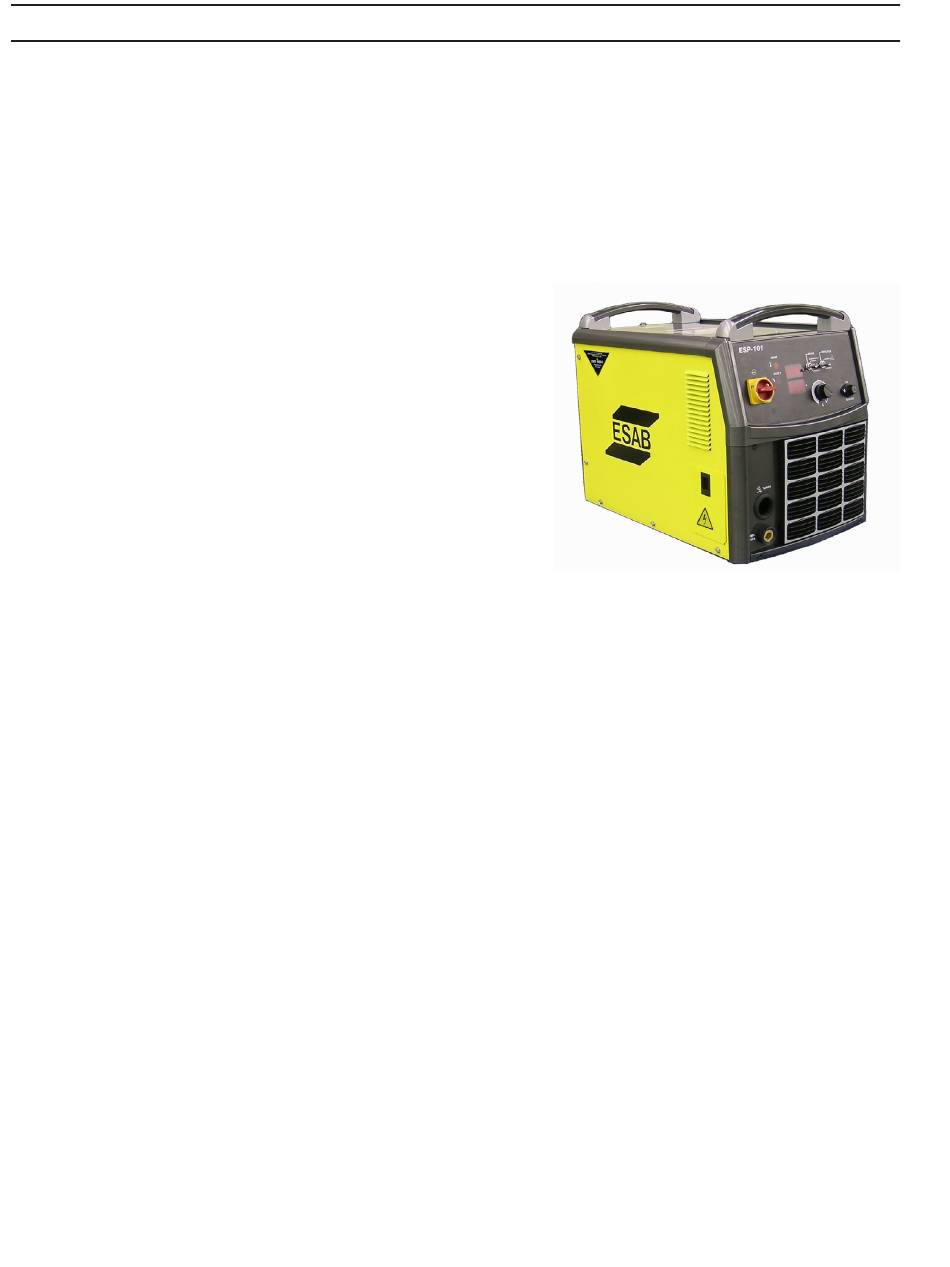

2.3 ESP-101 Plasma arc Cutting System:
The ESP-101 plasma cutting system combines the newly redesigned ESP-101 console and PT-37 torch. The PT-37 plasma
cutting torch is designed to provide increased performance and longer consumable life resulting in higher production
rates at lower costs.
Specifications: ESP-101
Pierces 3/4 inch (19.1 mm); Cuts 1-1/4 inch (32 mm) for Carbon & Stainless Steel
Pierces 3/4 inch (19.1 mm); Cuts 1 inch (25 mm) for Aluminum
Input ........................................................................................460 vac, 3 phase 60 Hz, 25 A
....................................................................... 380/400 vac, 3 phase 50/60 Hz, 30/29 A
Output .................................................................... 100 amps @ 160v - 100% duty cycle
Voltage requirements ........................................................ Idle 380-400, 460V, +/- 10%
....................................................................................... Cutting 380-400, 460V, +/- 15%
Air Supply Requirements .........................500 cfh @ 90 psig (236 l/min @ 6.2 bars)
Efficiency ..............................................................................................................................89%
Power Factor .......................................................................................................................92%
CE 380-400 vac ................................................................................................ *S
....................................................................................................................... *Z
Weight: ............................................................................................................ 125 lb (56.7 kg)
Duty Cycle: The duty cycle refers to the time as a percentage of a ten-minute period that you can cut at a certain load without over-
heating. The duty cycle is valid for 40 degrees C.
*S : Minimum short circuit power on the network in accordance with IEC61000-3-12.
sc min
*Z : Maximum permissible line on the network impedance in accordance with IEC61000-3-11.
max
4 MVA
sc min
0.039 Ω
max
12
DESCrIPTIoN
