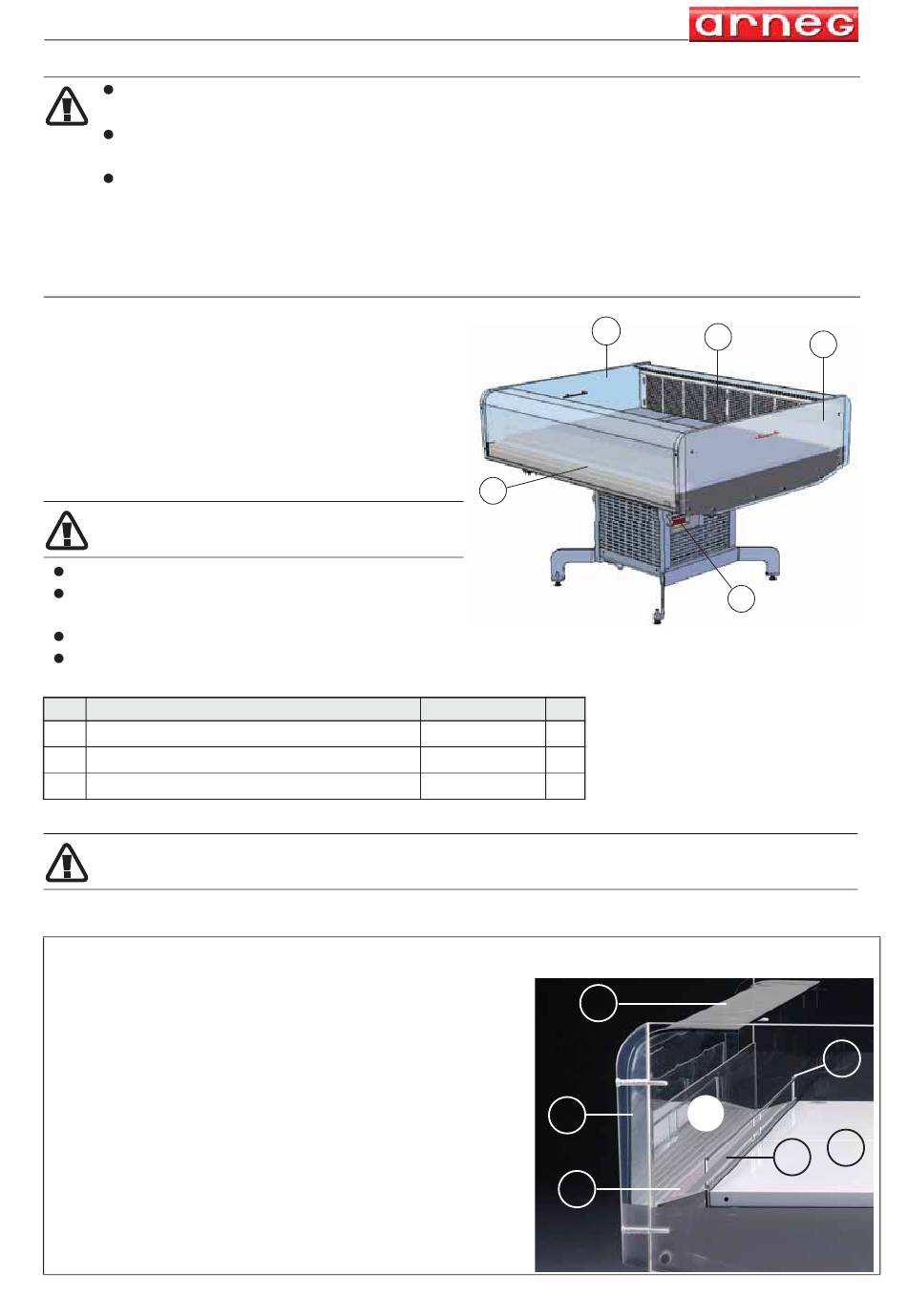

Do not move the unit by pulling or pushing on the glass surfaces. Only use
the part underneath (Rif. 11).
If the unit is moved, repeat the levelling process, as improper levelling
could compromise the unit's operations.
Specifically, the Sendai 1000 R290 requires continuous and adequate air
circulation through the condensation unit in order to guarantee conformance
with the risk evaluation level. In addition, any obstacle able to reduce air flow
could have negative effects on the safety of the cabinet. Due to the explosive
nature of the refrigerant, an environment with a minimum volume of 25 m
natural air exchange is required for each Sendai 1000 R290 cabinet.
12.multiplexing cabinets - specialised
technician -
1 Left side
2 Rear side (output)
3 Right side
4 Front side (intake)
5 Control panel
12_1.Side multiplexing (Rif. 19)
Disconnect the cabinet from the power
supply before
Remove the sides;
Move the cabinets close and line them
up;
Insert the glass bead bracket (3);
Unite the cabinets using the provided screws and nuts
MULTIPLEX KIT (Rif. 20)
Pos
1
Nut M8
2
Screws TCEI M8x120 galvanised
Multiplex union group
12_2.Front/back multiplexing (Rif. 21) (only model L=850)
Disconnect the cabinet from the power supply before any operation
Follow these instructions:
1 Remove the side casings from the base of both cabinets
2 Remove the intake assembly:
A - trays,
B - product block grill
C - suction sheet
D - suction reduction sheet
E - anti-condensation plexiglass
F- corners
G - front glass
36
Name
1
4
Code
Ite
04230600
3
04711065
3
03039800
G
F
C
3
and
2
3
5
B
E
A
D
05060048 01 13/06/2012
