Assa Abloy OneSystem 819N Notice De Montage page 66

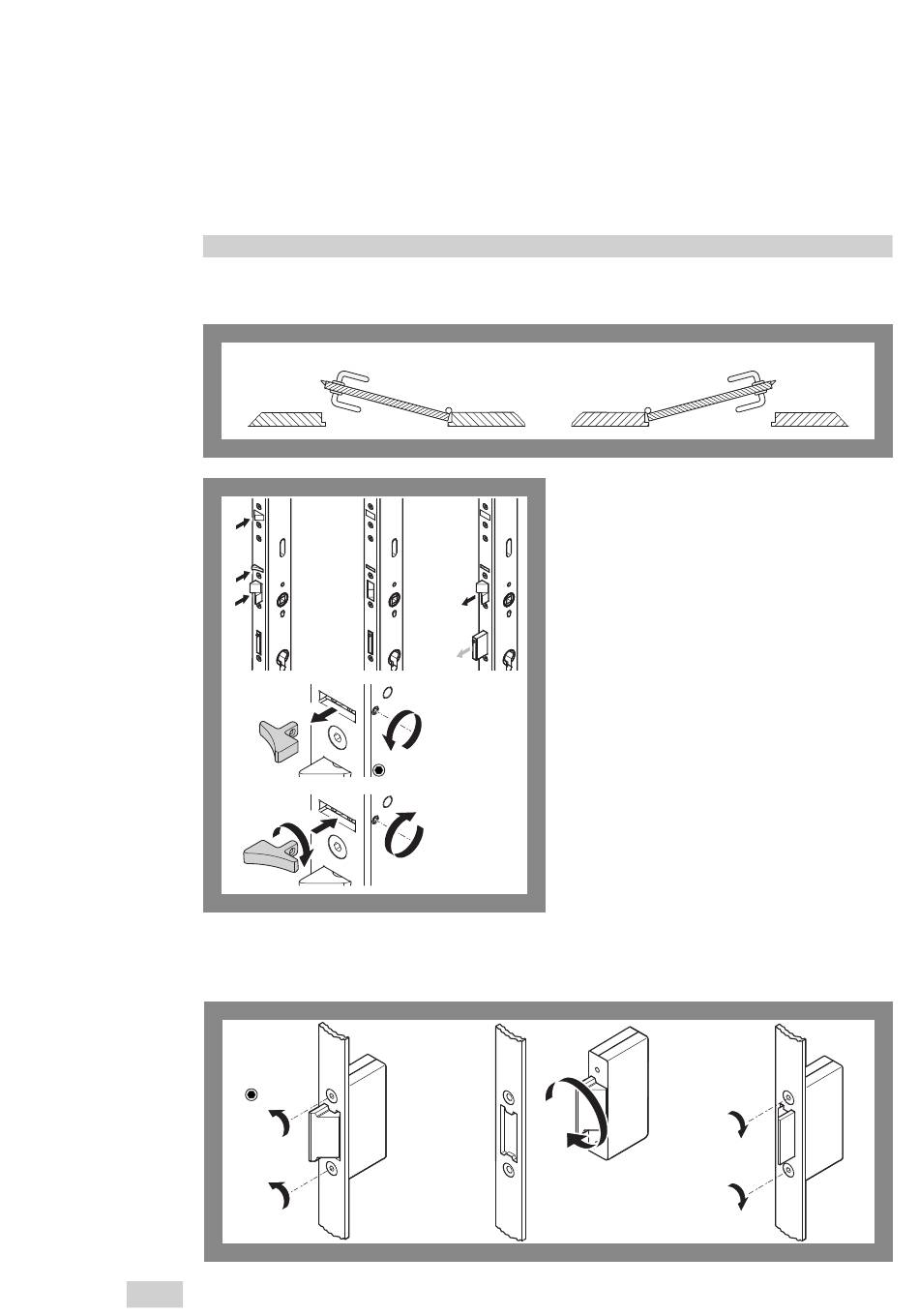

Fig. 8 :
Lock type according to
DIN left hand and
DIN right hand
Fig. 9 :
Rotating the control latch
Fig. 10 :
Adjust the closing
direction of the
latch lock 807-10 to the
control latch
EN
66
Adjusting the closing direction of the latch
The closing direction of the lock can be switched for use in DIN left hand and DIN right hand doors (Fig. 8).
For this purpose, the control latch must be rotated before the lock is installed in the door.
DIN left hand
1. 2.
5.
3x
6.
6.
Optional: Turn latch lock 807-10
8 Turn the optional latch lock 807-10 so that the closing direction of the latch lock corresponds to the
closing direction of the control latch (Fig. 10).
1.
2,5 mm
3.
4.
1,5 mm
7.
2.
180°
DIN right hand
Triggering self-locking
1 Press and hold the latch bolt (Fig. 9).
2 Press the control latch.
3 Release the latch bolt while pressing the
control latch.
 The deadbolt is eliminated and the screw for
the control latch can be reached.
Rotating the control latch
4 Unscrew the locking screw with an Allen
wrench.
· Do not unscrew the locking screw entirely.
· Leave the Allen wrench in the bolt head.
5 Pull out the latch.
6 Turn the latch 180 degrees and re-insert it.
7 Fix the latch with the locking screw (torque
0.5 Nm).
 The latch was installed matching the closing
direction of the door.
3.
Installation
